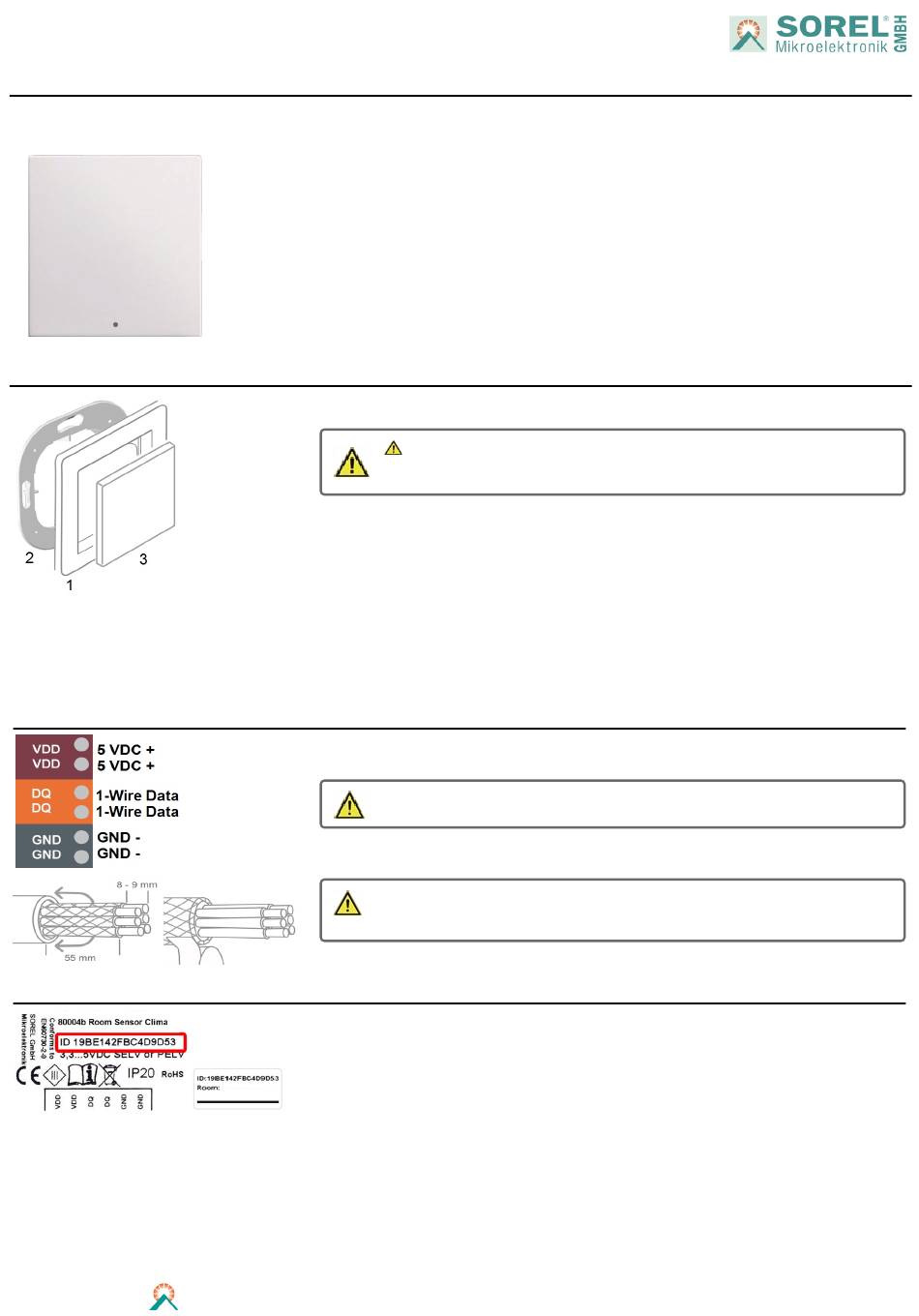

Sorel Clima T2A Manual

Room Sensor Clima T2A
Digital room temperature and humidity sensor with communication via 1-Wire bus in connection with the °CALEONbox Clima.
Wall Installation
Electrical Connection
Type Plate and Sticker with 1-Wire ID
Technical Data
Power Supply
Measurement Range
Protection Class
Max. Cable Length
Dimension
Housing Design
Installation Methods
Mount the Room Sensor Clima T2A in a suitable place.
Mounting in flush-mounted switch box
Attach the mounting ring to the switch box with the arrow pointing upwards (2). Make the electrical connection as
described below.
Attach insert
Hold the cover frame (1 - not included in the scope of delivery, Art. No.: 82001) against the mounting ring (2). Align the
Room Sensor Clima T2A (3) to fit the mounting ring and push it on.
Surface mounting
Use the surface-mounted frame set for surface mounting Art. No.: 82002.
For the connection of a Room Sensor Clima T2A, one of the terminal points VDD/ DQ/ GND is required in each case.
The additional three clamping points are for easy connection of further sensors.
Each Room Sensor has a unique 16-digit 1-Wire ID. This ID is required for sensor-room assignment in °CALEON. The
ID can be found inside the sensor on the type plate and on the supplied sticker. We recommend placing the sticker in
the table of the °CALEONbox Clima operating instructions or in the °CALEONbox Clima terminal plan sticker to simplify
the later configuration of the system.
SOREL GmbH Mikroelektronik | Reme-Str. 12 | D - 58300 Wetter (Ruhr) | +49 (0)2335 682 77 0 | info@sorel.de | www.sorel.de | 28.08.2023
5 VDC SELV or PELV
0 °C ... 60 °C / 0 % ... 100 %
Accuracy +/- 1 °C / +/- 6 % | Resolution 0.1 °C / 0.1 %
IP 20
up to 100 m powered (three-wire connection recommended),
using twisted pair cables
55 mm x 55 mm
plastic housing pure white
Surface / flush-mounted
Caution!
Device and function may be damaged. Select a suitable environmental condition. Direct sunlight,
sources of heat and cold, e.g. radiators and windows must be avoided.
Only to be used with SELV or PELV protective extra-low voltage.
If shielded cables are used, contact between the shielding and the PCB can cause damage to the device
and lead to malfunctions.
