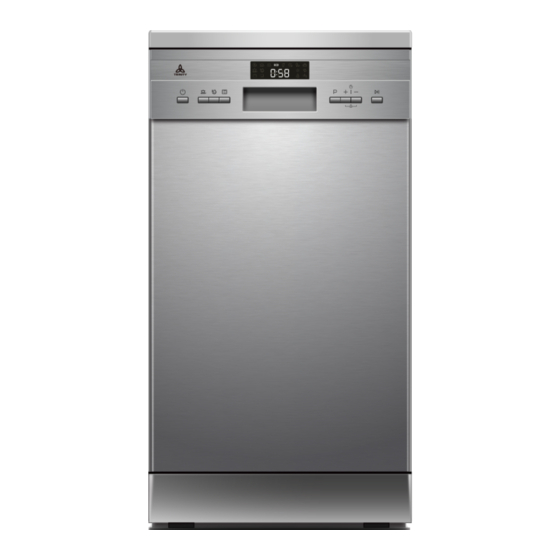

45 cm freestanding dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
45
F
CM
REESTANDING
M
C
ODEL
ODE
Please read this manual carefully before using, and keep it for future reference.
D
ISHWASHER
:TRDWFS4510
P a g e
ONLINE: TRINITYAPPLIANCES.COM.AU
| 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRDWFS4510 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trinity TRDWFS4510

  • Page 1 P a g e User Manual REESTANDING ISHWASHER :TRDWFS4510 ODEL Please read this manual carefully before using, and keep it for future reference. ONLINE: TRINITYAPPLIANCES.COM.AU...
  • Page 2 P a g e INSTRUCTION MANUAL 45 cm Freestanding Dishwasher Models: TRDWFS4510 ONLINE: TRINITYAPPLIANCES.COM.AU...

  • Page 3: Table Of Contents

    P a g e CONTENTS 1 PACKAGE ............................... 1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS ..............1.2 HANDLING ............................... 1.3 BEFORE USING YOUR NEW APPLIANCE .................... 2 SAFETY WARNINGS ............................2.1 IMPORTANT INFORMATION .............................................. 2.2 EARTHING INSTRUCTIONS 3 INSTALLATION INSTRUCTION ........................
  • Page 4 P a g e 7.5 LOADING THE UPPER BASKET ..................... 30 7.6 LOADING THE LOWER BASKET ....................30 7.7 LOADING THE CUTLERY BASKET ....................30 7.8 FUNCTION OF THE RINSE AID AND DETERGENT ..............31 7.9 FILLING THE RINSE AID RESERVOIR ................... 7.10 FILLING THE DETERGENT DISPENSER ..................

  • Page 5: Package

    P a g e PACKAGE 1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS Please thoroughly inspect your goods at the delivery time , if you notice any damage to your goods:  Please notify the delivery team at the time of delivery and do NOT accept damaged product .

  • Page 6: Safety Warnings

    P a g e 2 SAFETY WARNINGS 2.1 IMPORTANT INFORMATION THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY, PLEASE READ To maintain THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE the EFFICIENCY and SAFETY of this appliance, we recommend: ...

  • Page 7: Earthing Instructions

    P a g e ARTHING NSTRUCTIONS  This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. ...

  • Page 8: Installation Instruction

    P a g e NSTALLATION INSTRUCTION 3.1 E LECTRICAL HOCK AZARD  Disconnect electrical power before installing dishwasher.  Failure to do so could result in death or electrical shock.  Attention: The installation of the pipes and electrical equipments should be done by professionals.

  • Page 9: Water Supply And Drain

    P a g e 3.3 W ATER UPPLY RAIN  Cold water connection Connect the cold water supply hose to a threaded 3/4 inch connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.

  • Page 10: Position The Appliance

    P a g e | 10 Counter Back of machine Drain hose Water Inlet Drain Pipe Mains Cable  How to drain excess water from hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink.

  • Page 11: Free Standing Installation

    P a g e  Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°. NOTE: Only apply to the free standing dishwasher.

  • Page 12: Built-In Installation(For The Integrated Model)

    P a g e case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).  Attention After removing the work top, the screws must be screwed again under the rear edge of the top (b). The height will then be reduced to 815 mm, as scheduled by the International Regulations (ISO) and the dishwasher will fit perfectly under the kitchen working top.
  • Page 13 P a g e If dishwasher is in stalled at the corner of the cabinet, there should be some space when the door is opened. Dishwasher Cabinet Door of dishwasher Minimum space of 50mm  NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.
  • Page 14 P a g e  Full-integrated model Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by screws and bolts (See figure B).
  • Page 15 P a g e  Step 4. Dishwasher installation steps Please refer to the specified installation steps in the installation drawings. Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface. (Step Connect the inlet hose to the cold water supply.
  • Page 16 P a g e  Step 5. Levelling the dishwasher Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling legs individually.

  • Page 17: Using Instruction

    P a g e SING INSTRUCTION 4.1 Y OUR NEW APPLIANCE  To get the best performance from your dishwasher, read all operating instructions before using it for the first time.  NOTE: Pictures are only for reference, different models may be different. Please prevail in kind.

  • Page 18: Before Using Your Dishwasher

    P a g e 4.2 B EFORE USING YOUR DISHWASHER Inside Outside Loading the basket Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) 4.3 B ASKET ...
  • Page 19 P a g e  Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. ...

  • Page 20: Maintenance And Cleaning

    P a g e 5 MAINTENANCE AND CLEANING 5.1 E XTERNAL  The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door.
  • Page 21 P a g e Coarse filter Main filter Fine filter 2.The fine filter can be pulled off the 1.Hold the coarse filter and rotate it bottom of the filter assembly. anticlockwise to unlock the filter. Lift the filter upwards and out of the The coarse filter can be detached dishwasher.

  • Page 22: Caring For The Dishwasher

    P a g e  Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: 1.To remove the upper spray arm, 2.To remove the lower spray arm, hold the nut in the center still and pull out the spray arm upward.
  • Page 23 P a g e Reconnect the water inlet pipe to the water valve. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.  After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

  • Page 24: Loading The Baskets According To As/Nzs 2007.1

    P a g e LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1 6.1 U PPER BASKET Number Item Cups Saucers Glasses 6.2 L OWER BASKET Item Number Dessert dishes Dinner plates Soup plates ONLINE: TRINITYAPPLIANCES.COM.AU...

  • Page 25: Cutlery Basket

    P a g e 4 4 4 Item Number Soup spoons Forks Knives Teaspoons Dessert spoons Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 10 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5g/22.5g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm) ONLINE: TRINITYAPPLIANCES.COM.AU...

  • Page 26: Special Version

    P a g e PECIAL ERSION 7.1 QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. 1.Install the dishwasher (Please check the section 3 “INSTALLATION INSTRUCTION ” Inside Outsid 3.Loading the baskets 2.Removing the larger residue on the cutlery ONLINE: TRINITYAPPLIANCES.COM.AU...

  • Page 27: Control Panel

    P a g e ONTROL ANEL 6 7 6  Operation (Button) Press this button to turn on your dishwasher, the screen lights up. Power Press this button to improve the cleaning efficiency. (only Extra Intensive, Normal, ECO, Glass and 90 min have this function) Cleaning When pressing this button, corresponding indicator will be lit.

  • Page 28: Preparing And Loading Dishes

    P a g e  Display Auto Auto sensing wash, lightly, or heavily soiled crockery, with or with out dried-on food Intensive For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.

  • Page 29: Removing The Dishes

    P a g e  Are of limited suitability Some types of glasses can become dull after a large number of washes Silver and aluminum parts have a tendency to discolour during washing Glazed patterns may fade if machine washed frequently ...

  • Page 30: Loading The Upper Basket

    P a g e  Warnings: Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended. 7.5 L OADING THE UPPER BASKET The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

  • Page 31: Function Of The Rinse Aid And Detergent

    P a g e other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.  Warnings: Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down! For the best washing effect, please load the baskets refer to standard loading options on last section 6.

  • Page 32: Filling The Rinse Aid Reservoir

    P a g e to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.  Warnings: Proper Use of Detergent Use only detergent specifically made for dishwashersuse.Keepyourdetergent fresh and dry. Don't put powdered detergent into the dispenser until you are ready to wash dishes.

  • Page 33: Filling The Detergent Dispenser

    P a g e The rinse aid reservoir has six settings. Both the recommended setting and the factory setting is “4”. If the dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.

  • Page 34: Programming The Dishwasher

    P a g e 7.11 PROGRAMMING THE DISHWASHER  Wash Cycle Table  The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.

  • Page 35: Startinga Cycle Wash

    P a g e 7.12 S TARTING YCLE  Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.  Pour in the detergent. ...

  • Page 36: Error Codes

    P a g e  Warnings:  It is dangerous to open the door mid-cycle, as hot steam may scald you. 7.15 ERROR CODES  If there is a malfunction, the dishwasher will display error codes to identify these: Meanings Codes Possible Causes Faucets is not opened, or water intake is...

  • Page 37: Technical Data

    600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) RODUCT FICHE Manufacturer Trinity Type / Description TRDWFS4510 Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.51 kWh Water consumption of the standard cleaning cycle 11.2 liter...

  • Page 38: Problem Solver

    P a g e ROBLEM SOLVER 9.1 B EFORE ALLING ERVICE  Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit start circuit break breaker.
  • Page 39 P a g e | 39 Problem Possible Causes What To Do Spilled rinse-aid. Alwayswipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent colourant may has no colourant. have been used. White film Hard water minerals. To clean the interior, use a on inside damp spongewithdishwasher...
  • Page 40 P a g e | 40 Aluminium utensils Usea mild abrasivecleaner Black or grey have rubbed to eliminate those marks. marks on dishes against dishes Dishes block Re-loading the dishes properly. Detergent left in detergent dispenser dispenser The dishes Improper loading Load the dishwasher as aren't drying suggested in the directions.

  • Page 41: Disposal

    P a g e 10DISPOSAL This appliance requires special waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, household waste disposal service or the store where you purchased it. The packaging materials are recyclable. ONLINE: TRINITYAPPLIANCES.COM.AU...

  • Page 42: Customer Care

    P a g e 11CUSTOMER CARE  Please be advised that without the proof of purchase, your warranty may not be valid, keep the receipt. For your convenience, please record: STORE NAME/CONTACT DETAILS: ..........PURCHASE DATE: ................PRODUCT MODEL N: …..............PRODUCT SERIAL N: ...............
