E3 Network Extenders: Single Line Provider and Subscriber
CAUTION
Net to Net Technologies strongly recommends the use of proper electrostatic discharge (ESD) precautions when
handling this equipment.
Installation
1. Unpack and inspect the equipment.
The following components should be included:
1 ENE3400
1 power supply
If there is any visible damage, do not attempt to connect the device. Contact Customer Support at 1-
877-638-2638 (001-603-427-0600 for international customers) or Support@NetToNet.com.
2. Power up the ENE3400.
Plug the power supply into the back of the ENE3400 and connect it to the power source. Verify that
the Power LED is illuminated.
Fast Ethernet Connection
NOTE
The Fast Ethernet 100, Act and Lnk LEDs will remain illuminated until the E3 link has been established.
3. Verify switch configuration.
Ensure that the switches on the back of the ENE3400 are positioned correctly to achieve the desired
settings for your connection. Switches are numbered from left to right; Switch #1 is on the left and
Switch #2 is on the right.
220-0000022 rev03

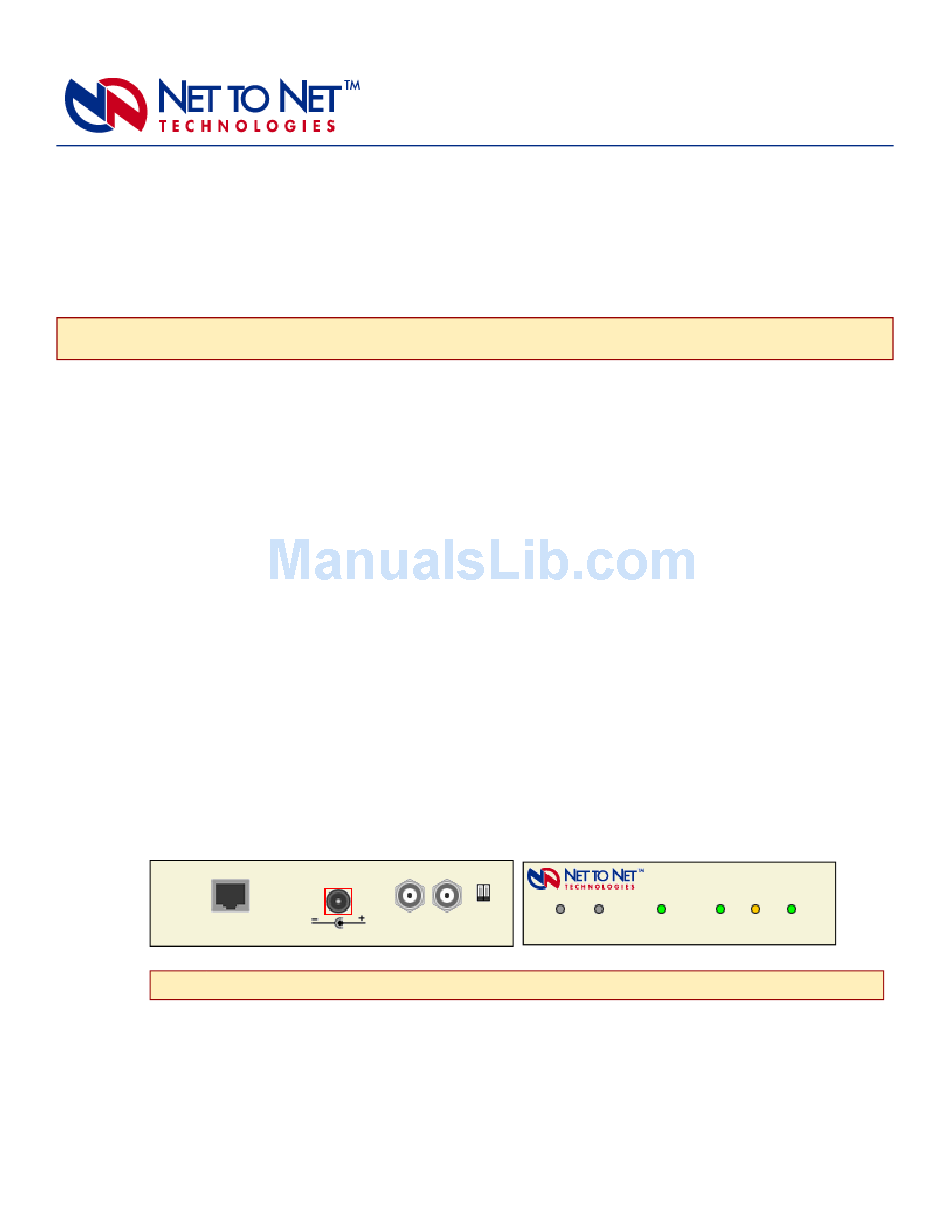

ENE3400-P and ENE3400-S
Tx
Rx
Power Adapter
E3 Connection
5V DC
Installation Instructions
Config
Lnk
Alm
Power
E3 Connection
E3 Network Extender 3400
ENE3400-S
100
Act
Lnk
Fast Ethernet Connection
Advertisement
Summary of Contents for Net to Net Technologies ENE3400-P
-
Page 1: Installation Instructions
ENE3400-P and ENE3400-S E3 Network Extenders: Single Line Provider and Subscriber CAUTION Net to Net Technologies strongly recommends the use of proper electrostatic discharge (ESD) precautions when handling this equipment. Installation 1. Unpack and inspect the equipment. The following components should be included:... -
Page 2: Connect The Ethernet Line
Fast Ethernet Connection NOTE An E3 network extender subscriber unit (ENE3400-S) must be connected via E3 line to an E3 network extender provider unit (ENE3400-P or ENE3400-P-6-AC/DC). A subscriber-to-subscriber or provider-to- provider connection will not function. 5. Connect the Ethernet Line. -
Page 3: Led Indicators
NOTE For most applications, the ENE3400 connects to a PC using a straight-through Ethernet cable and to a hub or a switch using a crossover Ethernet cable. For any other connection combinations you must verify the pinout of the Ethernet device to which you are connecting the ENE3400 in order to determine which type of cable is required. - Page 4 Fast solid green Ethernet illumination Fast pulsing Ethernet Act amber solid amber heavy traffic illumination Fast solid green Ethernet illumination (A pulsing LED blinks steadily at a rate of once per second. A flashing LED blinks at a more rapid, less constant rate.) 220-0000022 rev03 ©...
