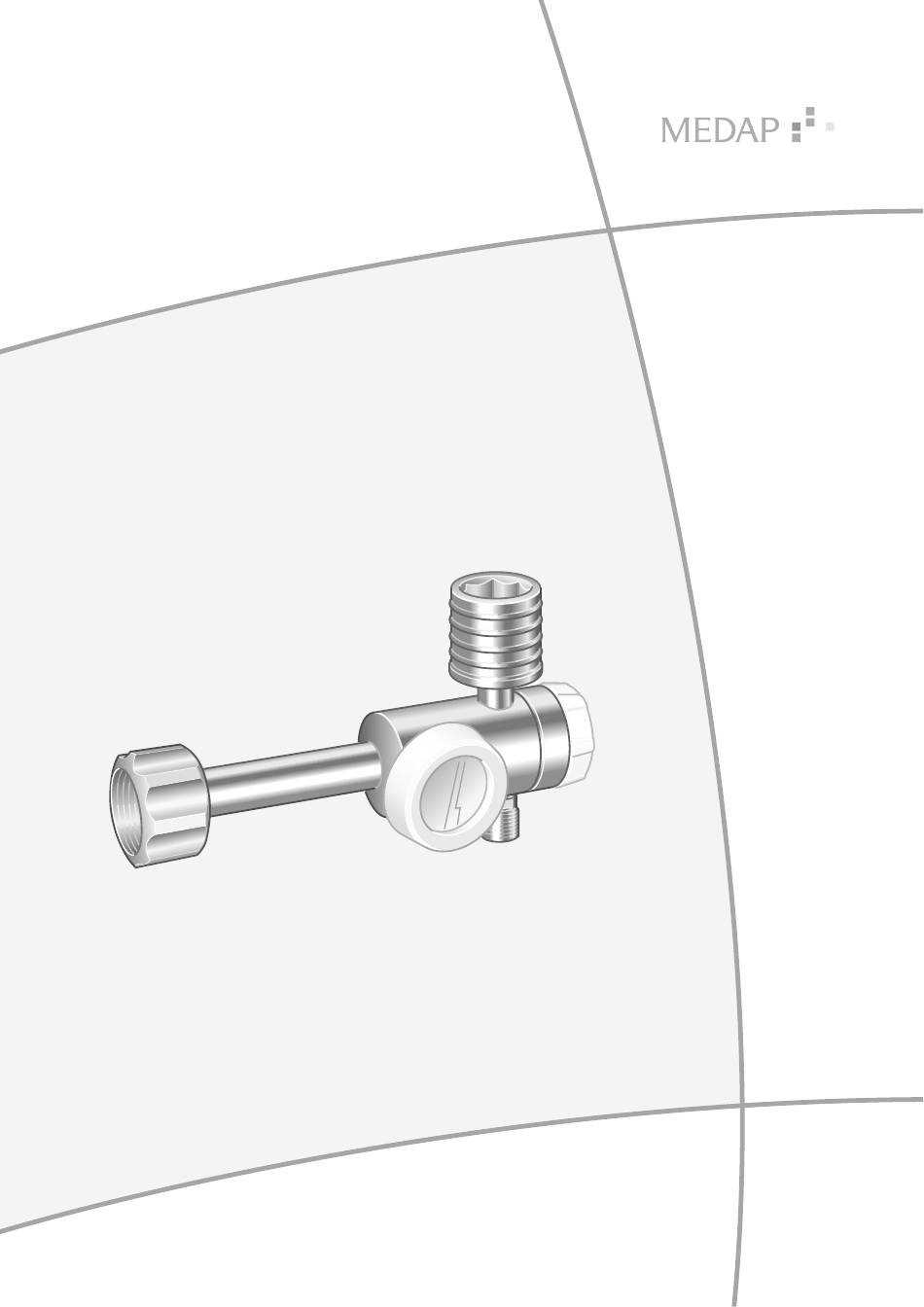

- Page 1 OPERATING INSTRUCTIONS PRESSURE REGULATOR GA 5752 5554 GB 11...
- Page 2 Subject to technical modification! Illustrations and technical specifications may vary slightly from those in these Operating Instructions as a result of ongoing product development. V11 2023-08 GA 5752 5554 GB 11...
-
Page 3: Table Of Contents
Table of contents Table of contents Introduction .............................. 5 Foreword ..............................5 How to use these operating instructions ....................5 1.2.1 Abbreviations ..........................5 1.2.2 Symbols ............................5 1.2.2.1 Cross-references ....................... 5 1.2.2.2 Actions and responses ....................5 1.2.3 Definitions ............................ 6 1.2.3.1 Design of safety notes .................... - Page 4 Table of contents Maintenance ............................19 General ..............................19 Periodic tests ............................19 Repairs ..............................19 Service hotline ............................19 5.4.1 Type plate position ........................19 Sending in the device ..........................20 Technical specifications ........................21 Nominal flow depends on the pressure ....................22 Approved accessories ...........................
-
Page 5: Introduction
Introduction Foreword Introduction Foreword Your facility has selected leading-edge medical technology made by ATMOS. We sincerely appreciate the trust you have placed in us. How to use these operating instructions These operating instructions are provided to familiarise you with the features of this ATMOS product. -
Page 6: Definitions
Introduction How to use these operating instructions 1.2.3 Definitions 1.2.3.1 Design of safety notes Pictogram Descriptor DANGER! Indicates a direct and immediate risk to persons which may be fatal or result in most serious injury. Observe the necessary measures. WARNING! Warning of a risk that can cause death or seriously injure you. - Page 7 Introduction How to use these operating instructions Symbols Identification This device complies with the relevant requirements of the EU regulations. This device complies with the relevant requirements of the EU regulations. Reference number Serial number Manufacturer Date of manufacture Country of manufacture Unique Device Identifier of a medical device Medical device Batch code...
-
Page 8: Disposal
Introduction Disposal Symbols Identification This side up Temperature limit Humidity limitation Atmospheric pressure limitation Symbol for ‘Oil- and fat-free" Tab. 3: Symbols Disposal 1.3.1 General Used products or parts thereof may be contaminated. To prevent potential infection, please clean and disinfect the product prior to return/disposal. 1.3.2 Packaging The packaging is made of materials compatible with the environment. -
Page 9: Overview

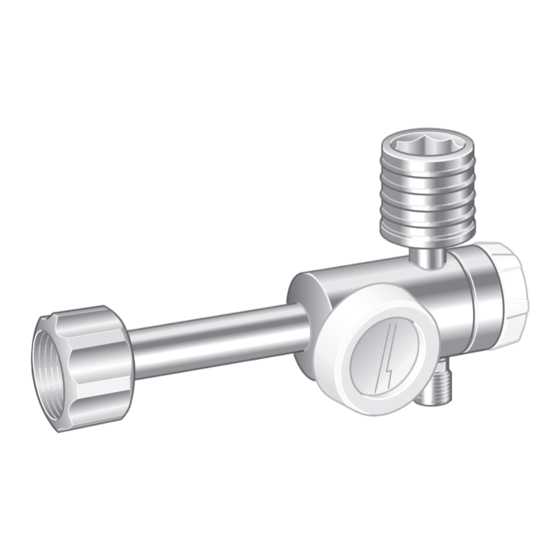

Introduction Overview Overview Fig. 1: Overview of pressure regulator Pressure regulator with flowmeter (long axle) HM57525543 Pressure regulator with flowmeter (short axle) HM57525618 Tube connector flowmeter outlet Pressure regulator with flowmeter and coupling (long axle) HM57525544 Pressure regulator with flowmeter and coupling (short axle) HM57525545 Pressure regulator with fixed set flow rate (short axle) HM57525546... -
Page 10: Basic Requirements
Introduction Basic requirements Basic requirements 1.5.1 Use in accordance with the intended purpose Product This device may only be used by medically trained staff who have been instructed in its use by an authorised person. This product is to be used exclusively for human medicine. When employed in commercial or business use, this product must be entered in the inventory. - Page 11 Introduction Basic requirements User training: The product may only be used by persons who have received medical training Intended patient target Patients of all age groups with and without restrictions groups: Medical conditions to be Oxygen deficiency (hypoxia/hypoxaemia) diagnosed, treated or monitored: Organ(s) applied to: •...
-
Page 12: Versions
Introduction Basic requirements 1.5.4 Versions The product is available in the following versions: REF HM57525547 • PR, O2, short connection, without flowmeter REF HM57525546 • PR, O2, short connection, fixed flow 4 l/min REF HM57525543 • PR, O2, long connection, flowmeter 15 l/min REF HM57525618 •... -
Page 13: Safety Notes
Safety notes Basic requirements Safety notes DANGER! Fire/explosion hazard! Air, oxygen and oxygen compounds react explosively with oils, greases and lubricants. Fire and explosion hazard due to compressed gases. Always keep the product free of oils, greases and lubricants. Only use sliding means (lubricants) approved by ATMOS for this product. - Page 14 Safety notes Basic requirements DANGER! Danger to life! Danger due to improper configuration of the system! Configuration of the overall system as well as functional testing are subject to the overall responsibility of the medical staff. The operator must check the proper functionality and suitability of the connected accessories for each intended application prior to every use, in particular, connection parts, sealing properties and suitability with regard to material, work pressure and flow.
- Page 15 Safety notes Basic requirements ATTENTION! Property damage! Using tools is likely to damage the cap nuts of the gas cylinder connections or the connecting part of the application component. The cap nuts may leak and become useless. Do not use any tools or tool-like devices for unscrewing or tightening the cap nuts. ATMOS recommends, always having another pressure regulator ready to hand.
-
Page 16: Operation And Use
Operation and use Connecting the pressure regulator Operation and use Connecting the pressure regulator Remove the seal of the valve on the gas cylinder. Ensure that there is no dirt, oil or grease residue present. Screw the pressure regulator connector to the gas cylinder and tighten by hand. ... -
Page 17: Cleaning And Disinfection
Cleaning and disinfection General Cleaning and disinfection General DANGER! Fire hazard! Cleaning agents and disinfectants may contain flammable substances which form a highly flammable compound together with oxygen. Fire hazard is increased with use of oxygen. Do not use flammable cleaning agents and disinfectants. Make sure that neither cleaning agents nor disinfectants are able to enter the high-pressure area of the gas cylinder connection nor penetrate the pressure regulator. -
Page 18: Cleaning
Cleaning and disinfection Cleaning Cleaning 4.2.1 Cleaning procedure Use the correct dose of all-purpose detergent with water for the degree of surface contamination and in accordance with the instructions of the detergent manufacturer. Thoroughly wipe off the product with a soft cloth slightly dampened in an all-purpose detergent solution. -
Page 19: Maintenance
Maintenance General Maintenance General Maintenance, repairs and periodic tests may only be carried out by persons who have the appropriate technical knowledge and are familiar with the product. To carry out these measures, the person must have the necessary test devices and original spare parts. ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. -
Page 20: Sending In The Device
Maintenance Sending in the device Sending in the device Remove and properly dispose of consumables. Clean and disinfect the product and accessories according to the operating instructions. Place used accessories with the product. Fill in the form QD 434 ‘Delivery complaint / return shipment’ and the respective decontamination certificate. -
Page 21: Technical Specifications
Technical specifications Sending in the device Technical specifications Supply pressure P1 (maximum) 30,000 kPa Supply pressure P1 for DIN 477-1 connection 20,000 kPa Rated operating pressure 450 kPa ± 50 kPa Pressure regulator version A: adjustable flow rate 0–15 l/min Pressure regulator version B: fixed set flow rate 4 l/min Environmental conditions: Transport/storage... -
Page 22: Nominal Flow Depends On The Pressure
Technical specifications Nominal flow depends on the pressure Nominal flow depends on the pressure GA 5752 5554 GB 11... -
Page 23: Approved Accessories
Approved accessories Accessories Approved accessories Accessories The following accessories are not part of the scope of delivery and must be ordered separately: HM57522746 Tube adapter 4.6, 8 mm, connection UNF 9/16‘‘ HM57525316 Tube adapter,, 4, 6, 8 mm, plastic UNF 9/16'' HM57525315 Bubble humidifier HM57525707... -
Page 24: Disposal/Recycling
Disposal/Recycling Expected service life Disposal/Recycling Packaging Recycle the product packaging if no longer required. Pressure regulator Do not dispose of the product with household waste. Clean and disinfect the product. In Germany, send the product to ATMOS or to your dealer. They will recycle the product properly. - Page 25 Notes...
- Page 26 Notes...
- Page 27 Notes...
- Page 28 Manufacturer: ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch GERMANY Phone: +49 7653 689-0 www.atmosmed.com...
