INSTRUCTIONS
You'll quickly learn to fly this drone like a Pro! So don't be intimidated by this manual because we
PROMISE it's easier than it looks.... even if you aren't tech savvy. We have great demonstration videos on
www.DroneCloneXperts.com
our website located under the drone instructions tab. Head to
to watch now!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Drone-Clone Xperts LIMITLESS 5
Summary of Contents for Drone-Clone Xperts LIMITLESS 5

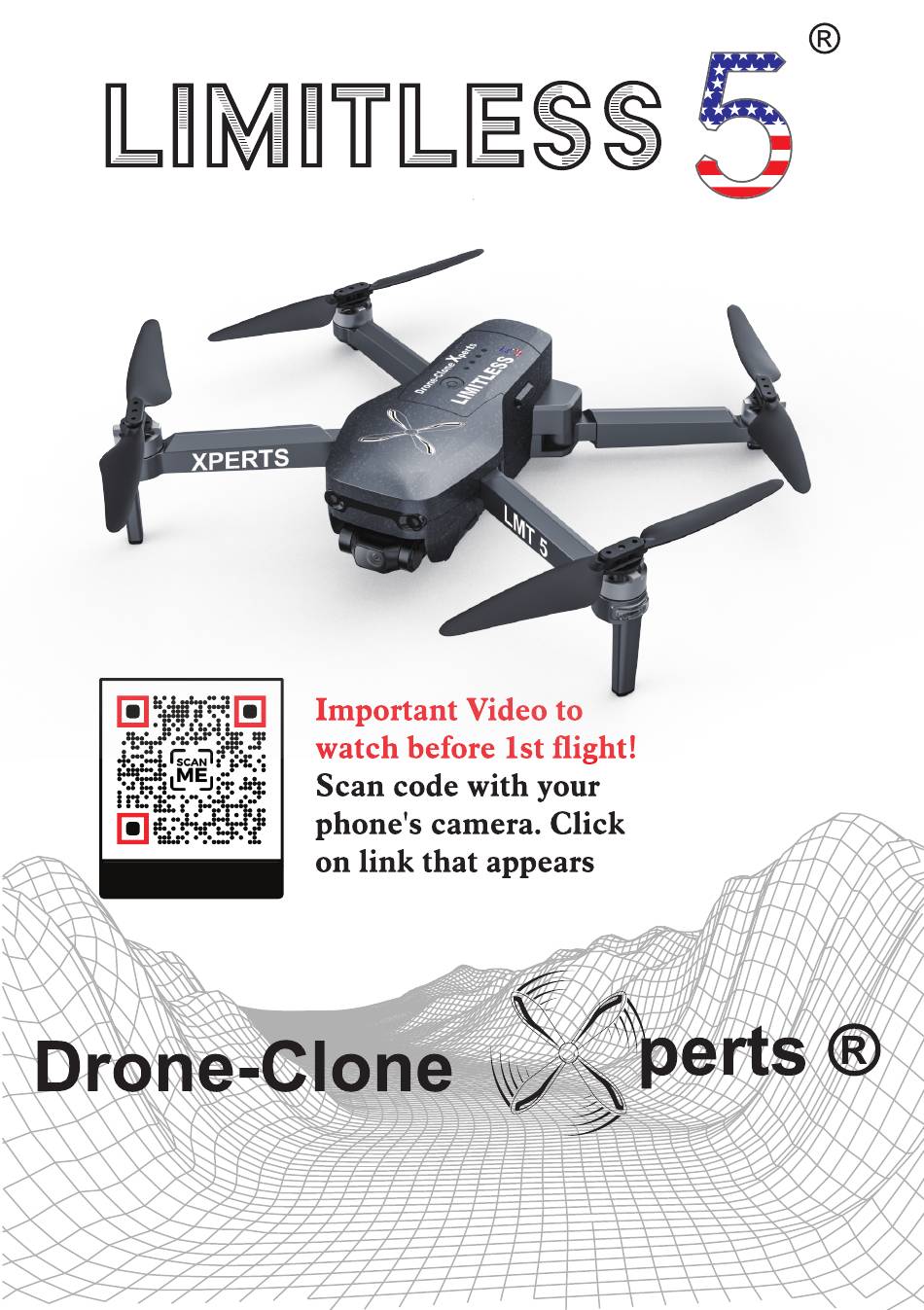

- Page 1 INSTRUCTIONS You’ll quickly learn to fly this drone like a Pro! So don’t be intimidated by this manual because we PROMISE it’s easier than it looks..even if you aren’t tech savvy. We have great demonstration videos on www.DroneCloneXperts.com our website located under the drone instructions tab. Head to to watch now!
- Page 3 How to Register LIMITLESS 5 Drone with FAA (Scan QR Code for Detailed Info & Demonstration) FAA RID (Remote ID) New Rules Included SCAN TO VIEW SCAN TO VIEW SEE PAGES 8-10 for More Detailed FAA Info...
-
Page 4: Table Of Contents
......20 • Low Power Return To Home........................14 And Return..........................20 Photo/Video..............................15 ......21 GPS Working Principles and Precautions ....................16 ........21 Software User Manual for LIMITLESS 5 ......22 App.....................18 01 LIMITLESS 5 App Installation Instructions...................18 ......22 02 Description of Multi-Lens Obstacle Avoidance..................19 ..............23 03 Reminder (1)............................19... -
Page 5: Quick Start Guide
® Quick Start Guide LIMITLESS 5 To learn more about drones before flying, head to our website www.DroneCloneXperts.com where you’ll find videos, manuals, and other great instructional resources. *Please ensure the drone and remote control batteries are fully charged before every flight. -
Page 6: Flight Speeds: Normal Mode & Sport Mode
Note: When the product is powered on, the default mode is GPS MODE. GPS mode is ALWAYS safest to fly in because, when in gps mode, the drone will know your exact location to fly back to in Drone-Clone Xperts the event an issue arrises. -
Page 7: Drone And Remote Control Battery Charging
(1) Scan the QR code to download and install the LIMITLESS 5 App on your Phone, iPad, or Tablet. Or simply search the app store for the app named LIMITLESS 5. (The App Supports ALL smartphones using iOS, Android, or GOOGLE) Android &... -
Page 8: Flight Tutorial Video
Scan QR code below to view the important L5 INSTRUCTION VIDEO to gain a much better understanding of these 2 modes as well as the many other features / functions LIMITLESS 5 has to offer. Also note there’s more detailed information about these modes explained below View Instruction VIDEO:... - Page 9 MINIMUM Write Speed of 30m/s (meaing your card should have the label U3 V30 written on it). We designed a HIGH SPEED 128GB microSD card specifically for use in our LIMITLESS 5 drone, which can be purchased directly from our website www.DroneCloneXperts.com. Simply hover your mouse over the accessories tab and you’ll see the 128gb microSd card as well as all the other accessories we...
- Page 10 Where to Purchase High Speed 128gb micoSD Card with U3 V30 Credentials If interested in our premium High Capacity / High Speed microSD Card, simply scan this QR code to be brought directly to the product page for purchase. and find the sd Or you can simply head to DroneCloneXperts.com card under the “LIMITLESS Accessories”...
-
Page 11: Full User Manual
Full User Manual Way Point Brushless Soar Dronie Flight Retum Home Motors Visual Ultra HD 3-axis Gimbal Digital Image Spiral Obstacle Avoidance with EIS Transmission 4K Camera... - Page 12 Important notices and safety guidelines Thank you for purchasing our product. In order to make it easier and more convenient for you to use this incredible LIMITLESS 5 drone, please read this manual and watch the instruction video carefully before operating. Refer back to these resources often before each flight! Disclaimer ●...
-
Page 13: Product Configuration
Product Description Product Configuration — Package Includes Packing List Drone Drone-Clone Xperts Remote Control NORMAL MODE Drone Battery Vertical Mobile Phone Holder USB Charging Cable Image Transmission Cable Screwdriver Spare Propellers (2) User Manual Drone Part Names [1] LED Light [2] Visual Obstacle Avoidance [3] 4K UHD Camera... - Page 14 An external device such as a cell phone or tablet is required to be connected to the drone’s WiFi Network to identify as a location source and must use a Drone-Clone Xperts® app such as the LIMITLESS 5 app in the foreground and always allow the Drone-Clone Xperts®...
- Page 15 **Please visit the FAA official website to complete the above requirements: www.faa.gov/uas/getting_started Once the drone is ON and your smartphone is connected to the drone’s wifi network, then open the LIMITLESS 5 app and the FAA Registration button will appear on the homescreen. This button will only appear when connected!
-
Page 16: Extra Accessories, Attachments, & Spare Parts
Extra Accessories & Spare Parts ACCESSORIES SCAN ME Scan For Full List Battery Propellers 128gb Memory Card Portable Charger Payload Air Drop Delivery System (Great for Fishing) Propellers Landing Pad USB Charging Cable Quick Charge Wall Adapter 3x Data Transmission USB REPLACEMENT PARTS NORMAL MODE Camera... - Page 17 Be sure to spell DroneCloneXperts correctly! There is only 1 letter ‘e’ before the letter ‘X’..NOT 2 Website – www.DroneCloneXperts.com Company – Drone-Clone Xperts, Inc. Address – 99 Columbia Rd. Morristown NJ 07960 With any new tech device, there’s a slight learning curve.
-
Page 18: Propeller Installation
1. Propeller Installation & Replacement [VERY IMPORTANT] Make sure all propellers are installed in the correct orientation as shown in the figure below. If the installation is incorrect, the IMPORTANT: aircraft will NOT fly normally and will likely crash. All propellers are labeled with either the letter ‘A’ or letter ‘B’ and must match the cooresponding arms/legs labeled with the same letter. - Page 19 To use the drone’s camera for photos, video, and to view real-time transmission of the live video feed, your drone needs to be used with the LIMITLESS 5 App. You’ll download the LIMITLESS 5 app on your smartphone, tablet, or iPad.
-
Page 20: Remote Control Button Functions
2. Are the propeller blades installed correctly? Letter ‘A’ propellers must match letter A arms/legs. Opposite is true for ‘B’ 3. Do the drone motors start normally? Drone Pairing to Remote Turn the remote control ON Drone-Clone Xperts Turn on the drone ON Wait 40-60 seconds until the remote control makes a “BEEP” NORMAL MODE sound. -
Page 21: Calibration
CALIBRATION: Geomagnetic Correction – Using Remote Control (rather than the LIMITLESS 5 app) We strongly suggest to use the designated LIMITLESS 5 App to calibrate your drone (aka geomagnetism, gyroscope & gimbal level corrections), simply because most users find it to be an easier process when using the app. However, you can perform the same corrections and achieve the same results via use of the remote controller. -
Page 22: Unlocking Drone Motors
The default settings are programmed for the automated protection program to prevent the drone from taking flight until the system connects to enough satellites to enter GPS MODE; Drone-Clone Xperts however, if the user wants to fly indoors (in ATTI Mode) the user can simply override this automated failsafe protection, and by doing so, won’t have to wait for a strong GPS satellite... -
Page 23: Basic Flight
4. Push the throttle stick up, the drone will take off, and the left / right joystick will control the attitude of the drone. 5. Turn off the power of the drone first, and then turn off the power switch of the remote control. Directional Flight Controls Remote Control Drone Altitude Rise Drone-Clone Xperts GPS MODE Altitude Decline Front Drone-Clone Xperts Rotate Right... -
Page 24: Interrupted Signal Return To Home
● During auto return, the drone cannot point and land safely to ensure you never lose your drone. The LIMITLESS 5 drone will avoid obstacles. return on it’s own in the following 3 flight scenarios: ●... -
Page 25: Photo/Video
The Influence Of Temperature And Environment On The Use Of Drone Lithium Battery: 1. Temperature affects ALL types of lithium batteries: The best battery temperature is 68°–86°F. Low temperature environ- ments severely reduce activity of lithium ions, which causes the battery discharge capacity to become weaker, and therefore flight time will be shortened. -
Page 26: App
Please scan the QR code below to download the mobile app specific for your phone. You can also just search your phone’s app store for the app named “LIMITLESS 5”. The app has the same name as the drone: LIMITLESS 5. - Page 27 02—Description of Multi-Lens Obstacle Avoidance Effective Use Environment: The surface is made of diffuse reflection material, with rich surface texture. It can be used in environments with a reflectivity of more than 20% (such as cement pavement) and weak light intensity of more than 5 lux. Be Careful: In high gear, visual obstacle avoidance is invalid;...
- Page 28 3840*2160P video frequency 3840*2160P Maximum code stream of 40Mbps main camera video 05—App Controls – Home Page – LIMITLESS 5 App Turn Sound ON / OFF App Instructions Settings Drone Calibration Start Flight I agree to the Privacy Policy &...
- Page 29 06—App Controls (I) - Control Page Power Number of satellites Geomagnetic Interference WiFi Functions Flight Status GPS Information Return Settings GPS mode Menu 8.30V 8.30V 1.1 Mb/s SD:500MB/4G 00:30 SD Card Storage Adjust Camera GPS follow Angle No UI mode One-Click Switch Camera Return...
- Page 30 08— App Controls (III) - Explanation of Functions Wheel GPS Follow No UI Mode Waypoint Flight 50x zoom Vertical Screen Mode Spiral Rocket Dronie Spiral: Once started, the drone will circle the chosen subject while ascending, creating a spiral effect. In case of emergency, immediately use the remote control to interrupt the flight! Pay close attention to the obstacles above to avoid crashes and/or injury! Rocket (Skyward Flight): Once started, the drone will rise automatically.
- Page 31 The Resolution from the bottom cam is 720p HD. #3–#6 Obstacle Avoidance Cameras: LIMITLESS 5 Drone has 4 obstacle avoidance cameras – 2 in the front and 2 in the back. These are primarily used by the drone to detect obstacles and prevent crashes;...
- Page 32 12— Gesture Control for Photo & Video Facing the camera front lens, the following gestures can trigger the automatic photographing or shooting function of the aircraft: IMPORTANT NOTE: To ensure high recognition rate of the lens, be sure Peace Sign Gesture: Take pictures by using simple gestures ●...
- Page 33 Amazon, so this often leads to substantial savings, especially on our premier products. Now go experience the world from above with LIMITLESS 5 Safety Guidelines In order to avoid accidents and/or injury, the following safety guidelines should be followed when flying any/all drones:...
- Page 34 -30-...
- Page 35 Get these 3 extra accessories for FREE! Drone LED Drone Spare Set of Landing Pad Strobe Light Propeller Blades It’s quick & easy to get these items and it won’t take more than 1min of your time. Just follow these steps: Step 1.
