Summary of Contents for Tayama DWG-200W

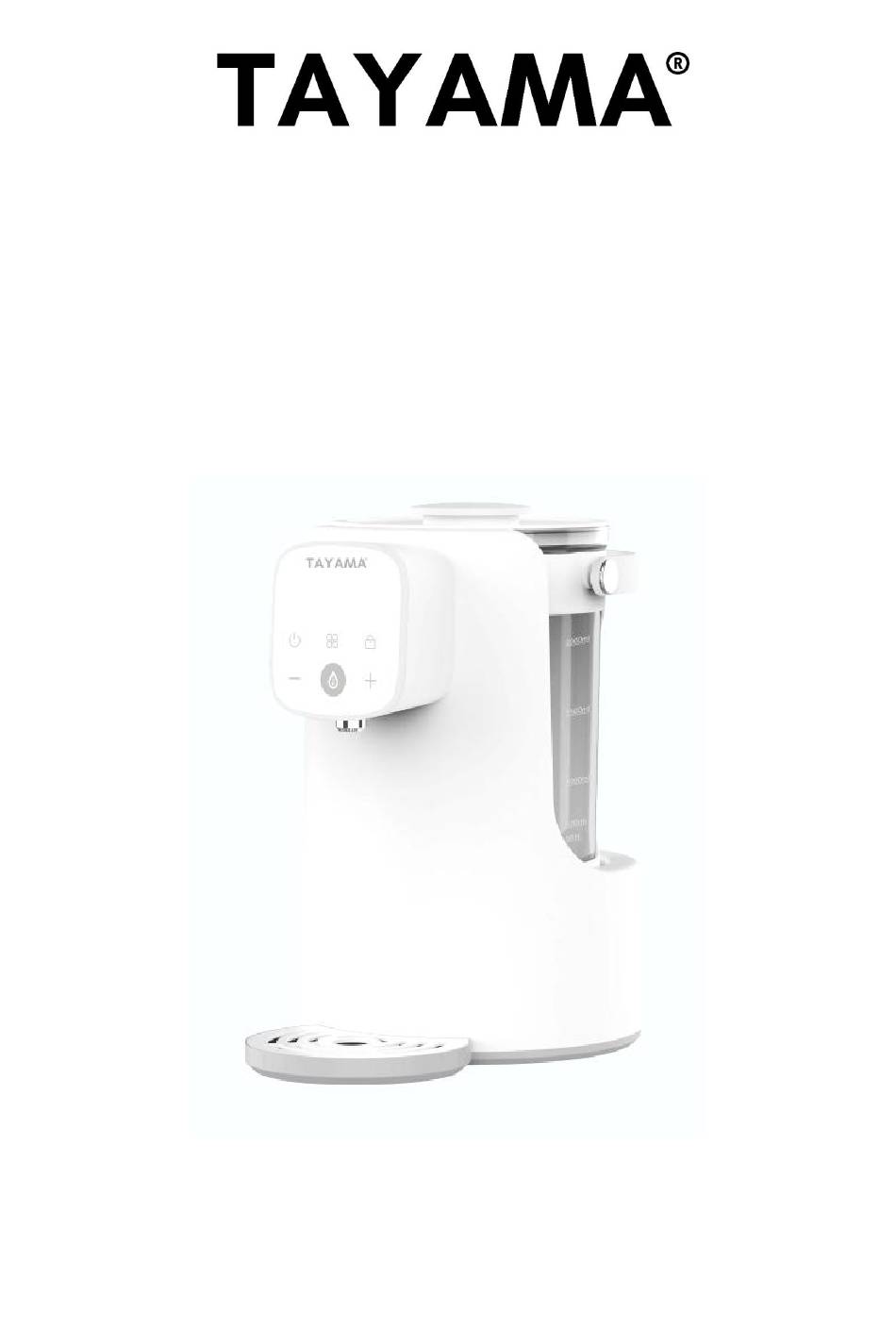

- Page 1 USER MANUAL SMART DIGITAL GLASS HOT WATER DISPENSER MODEL NO.: DWG-200W Thank you for purchasing this product. Read all the information in this user manual before using the appliance. Keep this manual in a handy location for future reference.
- Page 2 This product is specially designed for all your hot and warm water needs with smart high-tech touch screen, easy to operate control panel, you can simply set various functions such as heat preservation, boiling, dechlorinate, etc. This product has the characteristics of rapid heating, precise temperature control, and efficient dechlorination.
-
Page 3: Specification
Specification Product Name Glass Water Dispenser Packing 1pcs Model No. DWG-200W Capacity 2000ml Voltage 110-120V Use environment indoor use Frequency 60Hz Humidity 50-80% Power 1000W Ambient Temperature 138-187 °F Parts and Description... - Page 4 Part Name Material Heat resistant Qty/Unit Lid handle -68~221℉ Lid silicone silicone -68~392℉ Glass tank High borosilicate Handle trim -68~176℉ Outlet bracket -68~176℉ faucet fixture -68~221℉ Main body -68~176℉ Water tray -68~176℉ Pot lid -68~221℉ Hardware cover SU304 Handle -68~221℉ Tank outer body -68~221℉...
- Page 5 Panel Control Instructions 1. There are 5 Functions available: Warm (113°F), Milk (131°F), Tea (158°F), Coffee (185°F) and Boil/Dechlorinate (212°F). 2. Set Temperature : Display indicates the Set Temperature or Default Temperature after power has been turned ON and function has been selected. 3.
-
Page 6: Usage Instructions
6. Dispense button: Touch dispense button will automatically dispense water while touching the button. 7. Current Temperature: Display indicates the current temperature of the water in the glass jug. 8. Safety Lock button: The Safety Lock button will light up indicating the dispense button has been locked and will not work. -
Page 7: Functional Operation
2. After water is boiled. Use electric dispense button to discard half of the hot water. 3. Turn OFF the power, remove the glass jug, open the lid and discard the rest of the hot water. Functional Operation 1. Warm: After power has been turned ON. Display will be in standby mode, touch the Function key (located in the center) once to select the function Keep Warm. - Page 8 2. Milk: In standby mode, touch the Function key twice , wait for the “beep” to sound three times to enter the heat preservation state, the default heat preservation is 131°F, and the temperature can be adjusted to 95°F - 203°F through the +/- buttons. Helpful Tip: Milk setting is for heating water to use for warming baby bottles.
- Page 9 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock, do not immerse cord or plug in water or other liquid. 4.
- Page 11 WARNING: Read carefully before using and be sure to follow the instructions. This appliance is not intended for use by persons (including children) with physical difficulties or lack of experience and knowledge – unless they have been given supervision or instruction concerning to the use of the appliance by a person responsible for his/her safety.
-
Page 12: Cleaning And Maintenance
Cleaning and Maintenance Unplug, discard remaining hot water and wait until the unit cools down before cleaning can be started. Only use clean soft material such as cloth, sponge or paper towel. Simply rinse thoroughly with water and wipe the inside of the glass jug with a clean sponge or paper towel. - Page 13 Tayama Appliance USA Inc. www.tayama-usa.com support@tayama-usa.com...
