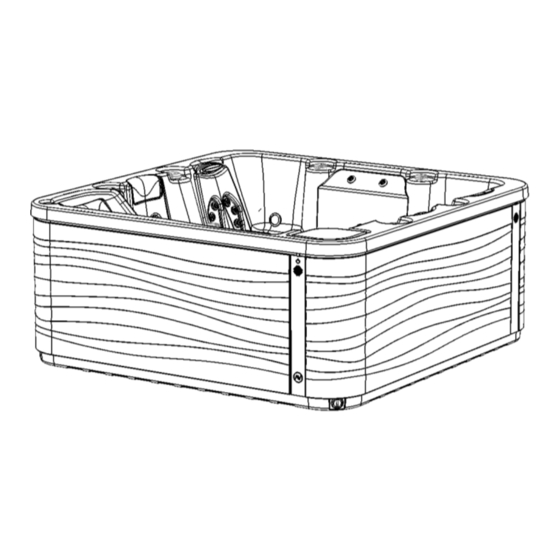

AURORA
INSTALLATION MANUAL
GR0001
V1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AURORA and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquavia AURORA

  • Page 1 AURORA INSTALLATION MANUAL GR0001...
  • Page 3 AURORA AURORA INSTALLATION MANUAL Identification components and parts GREY PANEL AURORA LATERAL LED STRIP LEDS STRIPS UNION LIGHT POWER BUTTON CORNER AUDIO FIXATION GIRD HOLES GREY PANNEL CORNER CLIPS LED STRIP CLIP LATERAL COVER SURE LOCK CORNER FASTENER POSITION SUPPORT...
  • Page 4 AURORA FIND ELECTRICAL CONNECTIONS AURORA PANEL FIND POWER LIGHT BUTTON LIGHT POWER BUTTON REMOVE TW0 GREY PANELS. UNICLIP TOUCH SWITCH. TOUCH SWITCH FIND AND DISCONECT THE LEDS STRIPS CONNECTIONS. EXTRACT THE LEDS STRIPS LEFT END LED CONNECTORS STRIP CORNER LED...
  • Page 5 AURORA UNSCREW THE TWO SCREWS OF THE CORNER CORNER FIXATIONS SCREWS REMOVE LATERAL AURORA PANEL UNCLICK FIXATIONS. PULL AND PUSH TO THE LEFT. ROTATE AND PULL UP. OUT OF SPA SHELL FOAM PROTECT...

  • Page 6: Spa Installation

    USER OPERATION & INSTALLATION MANUAL SPA FOR PRIVATE USE STEPS IN THE REVERSE ORDER 08.1 PUT ISOLATION FOAM PANELS. ISOLATION FOAM 08.2 PUT AURORA LATERAL PANEL. LOCATE LATERAL SUPPORTS HOOK ON STRUCTURAL SUPPORTS. CLICK FIXATIONS LATERAL SUPPORT HOOK STRUCTURAL SUPPORTS...
  • Page 7 AURORA 100mm 08.3 FIX PANEL CORNER. CORNER FIXATIONS SCREWS 08.4 RECONNECT LEDS STRIPS RIGHT LED STRIP LEFT LED STRIP CABLE HOLE CABLE HOLE AURORA LATERAL PANEL LEDS STRIP HOUSING TO COVER THE ENDS SUPPORT OF THE TWO LED STRIPS...
  • Page 8 MARK THE HOLES FOR THE COVER SURE LOCK FASTENER. 4 grey panels. Ø2mm COVER SURE LOCK FASTENER (See cover packaging) COVER SURE LOCK FASTENER POSITION (Removable sticker) 09.1 REMOVE STICKER (x4) SCREW THE COVER SURE LOCK FASTENER. 4 grey panels. CLICK 4 GREY PANELS. TOUCH SWITCH SPA COVER AURORA...

  • Page 9: Maintenance

    AURORA MAINTENANCE Wash the parts only with neutral soap and a soft cloth. Avoid corrosive products. Avoid abrasive utensils. Avoid cutting utensils. Do not use pressurized water under any circumstances.
