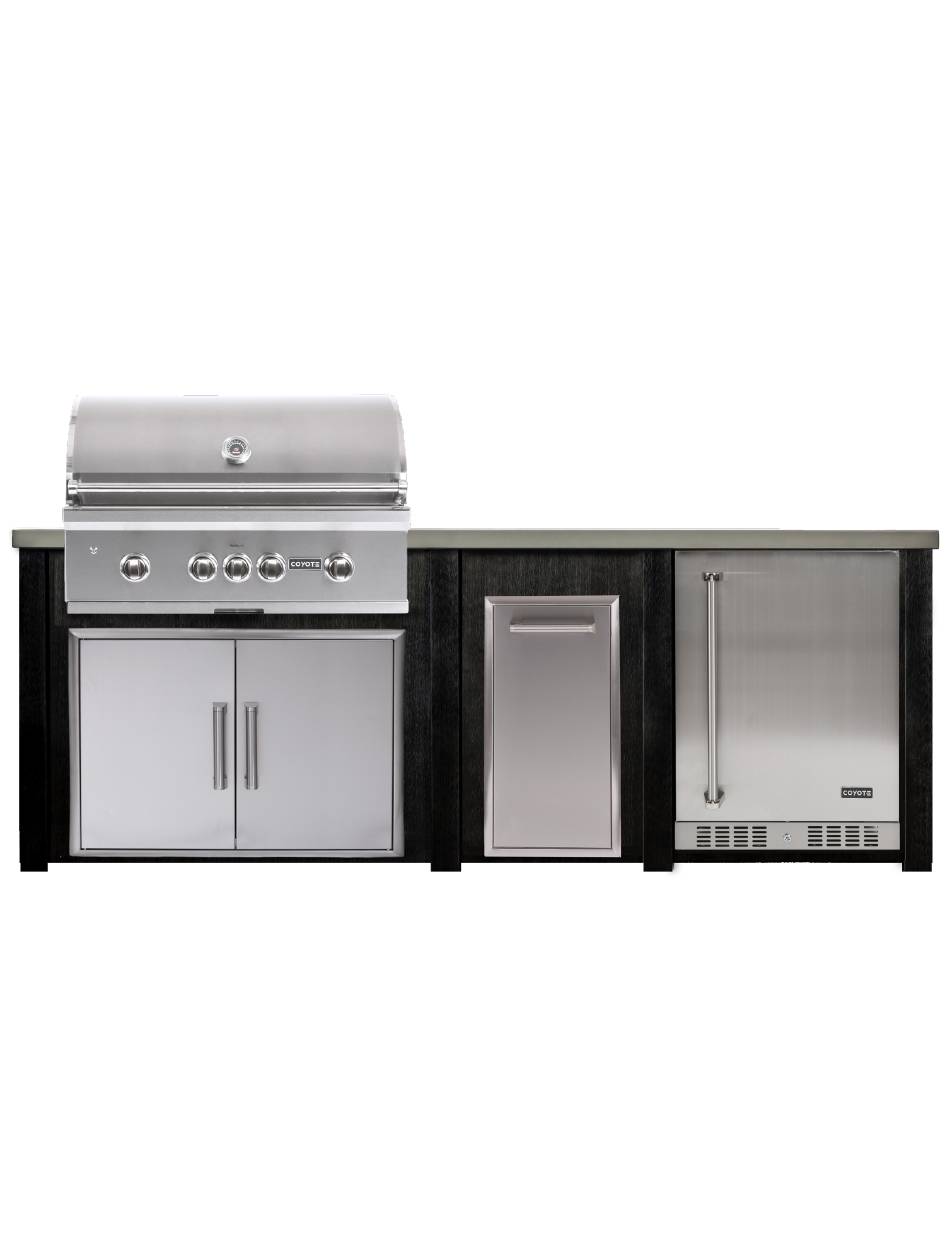

- Page 1 Installation & User Guide Installer please leave this with homeowner Outdoor Kitchen Assembly & Installation...
- Page 2 Included Parts for Installation Screws: 100 Allen Wrench: 1 Storm Tie-down Straps: 4 Shell Contruction Construction of the shell is a process of connecting vertical supports to the front and back panels. The primary fastening mechanism is a slot and cleat system that is laser cut in the supports and panels.
- Page 3 Shell Contruction Continued After finishing the first section, continue assembly following the next numbers in sequence (V2, B2, etc). Although your kitchen design and layout may vary, always follow this sequence of numbers for the next section. Repeat this process until all of the Vertical Supports and Panels are connected.
-
Page 4: Leveling System
Horizontal Rail Installation On the left end of the Island, install the long Horizontal Rails by sliding them into the appropriate slots in the bottom of each vertical support. Ensure that each Horizontal Rail is pointing inwards as shown below. If using optional accessories panel, install the small Horizontal Rails for that section as well. - Page 5 Grill Support Installation Measure the depth of your grill cutout in your countertop, and place the grill support accordingly in the appropriate section of the Island. (Make sure to measure from the outward edge of the face panel, see drawing below). Using the provided screws, secure the grill support in place.
-
Page 6: Floor Panel Installation
Floor Panel Installation Install the Floor Panel in section 1 (far left section). Insert through top of kitchen, with raised lip up and towards the back. Screw in place with provided screws through the pre- drilled holes. Component Installation Following any specific instructions from the manufacturer of your components, install your components into the kitchen framework. -
Page 7: Countertop Installation
Countertop Installation Lower the countertop into place on top of the kitchen. The countertop should cover the top of the kitchen shell, and overlap downwards several inches on all sides. Glue or silicone may be used to secure the countertop, but will make it very difficult to remove in the fu- ture to replace panels or disassemble the kitchen. -
Page 8: Operation And Maintenance
Operation & Maintenance To ensure a lifetime of use, and extend the longevity and beauty of your product, we recommend regular care and cleaning of your Outdoor Kitchen. Routine cleaning can be accomplished by rinsing away dirt and debris, and then gently wiping with a damp, non-abrasive cloth or sponge using warm water.
