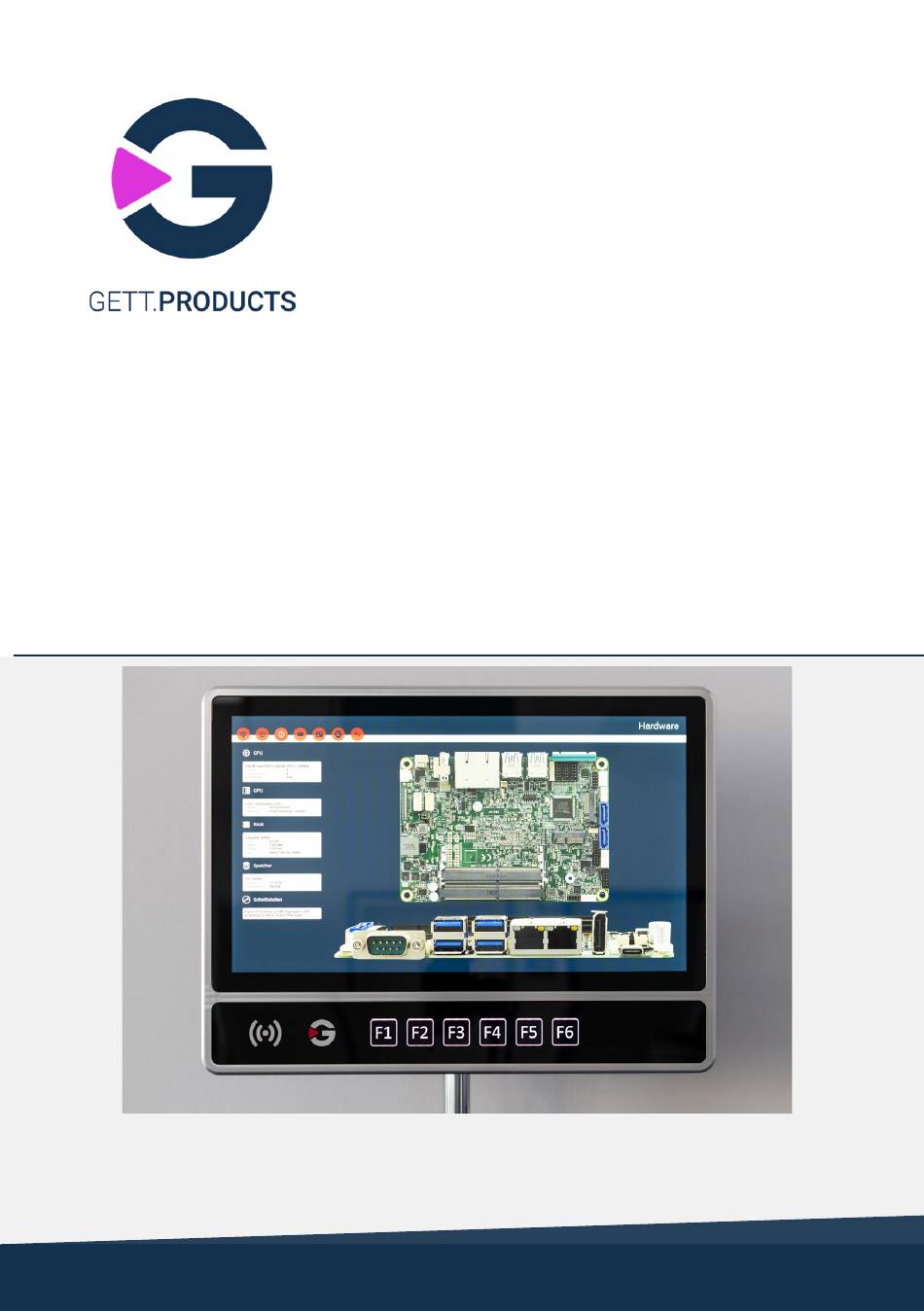

- Page 1 TouchPanel PC-BlackLine 21,5"/18,5" Intel Core i5/Intel Celeron IPBK001 | IPBK002 | IPBK003 | IPBK004 Operating Instructions 2023-08-03...
-
Page 3: Safety Informations
Safety informations Safety informations Intended use The touch panel is intended for use as a visualization tool for the control functions for machines and production facilities in a wide variety of fields of application. It is also necessary to install user software for the specific machine. - Page 4 You may not under any circumstances open the housing. If there is a fault or you need to upgrade the touch panel, you must con- tact GETT or a trade partner. IT Safety Please observe the product's operating instructions for safe commissioning.
- Page 5 Safety informations Store personal and sensitive data in a safe place. Ensure that your relevant data is backed up with a backup strat- egy. Ensure that a way is available to easily remove personal data from the device and associated services. The unit must use best encryption practices for secure commu- nication.
- Page 6 The touch panel at a glance The touch panel at a glance Fig.1: Front 1 Touch screen Control panel with six buttons 2 Aluminum frame Fig.2: Bottom 1 Cable feedthroughs 2 Earthing bolt...
- Page 7 3 Top housing cover module (optional) 2 Threaded bolt M5×10 for 4 Rating plate VESA mounting 100 × 100 mm Fig.4: Rating plate 1 Manufacturer 4 Serial number 2 QR code for the GETT 5 Article number website 3 Product description...
-
Page 8: Equipment And Options
Equipment and options Connections inside Fig.5: Connections inside Function Number Type Electricity supply MSTB 2,5/2-STF PCB socket Connection for second Display Port monitor Serial COM1 port RS-232/422/485 Port USB port USB 3.0 Typ A USB 3.1 Typ C Ethernet port RJ45 GbE LAN Connection for external MSTB 2,5/4-STF PCB... -
Page 9: Electrical Connection
Mounting Electricity is supplied to the touch panel from the machine via a 24V connection. The following can be ordered from the factory as optional equip- ment as part of the order: A Wi-Fi module with antennas, ƒ An emergency stop button on the control panel. ƒ... -
Page 10: Software Installation And Configuration
Software installation and configuration 8. Push the plugs into the cable feedthroughs. Make sure that the cables are not subject to any tension. 9. Close the upper cover on the housing. Software installation and configuration Depending on the equipment and options on the touch panel, you can install or configure additional software when first putting the unit into service. -
Page 11: Repair Work
Please contact GETT or a trade partner to replace any individual parts or refit the touch panel. Products must be returned in their original packaging. If you no longer have the packaging, please ask GETT or our contractual partners for it. - Page 12 Dispose of the touch panel using the special facilities made available for old electronic devices in line with the regional regulations. If you want GETT or a trade partner to dispose of the unit, please contact them to arrange this.
-
Page 13: Specification
Specification Specification Specification Material Steel, aluminum, glass Size (width × 18,5" display 466 × 351 × 91,5 mm height × depth) 21,5" display 540 × 407 × 92 mm Weight 18,5" display 8,0 kg 21,5" display 10,0 kg Screen size 21,5" 18,5"... - Page 14 Specification Specification Service life appr. 7 years, depending on usage 11.1 CE marking The device has been tested in line with the current EU Directives and the associated harmonized standards. All required informa- tion for CE marking can be found in the EU declaration of conformity for the product.
- Page 15 GETT Gerätetechnik GmbH Mittlerer Ring 1 08233 Treuen Germany Telefon: +49 37468 660-0 Fax: +49 37468 660-066 E-Mail: info@gett-group.com...
