Summary of Contents for Golf Buddy GB Voice XL

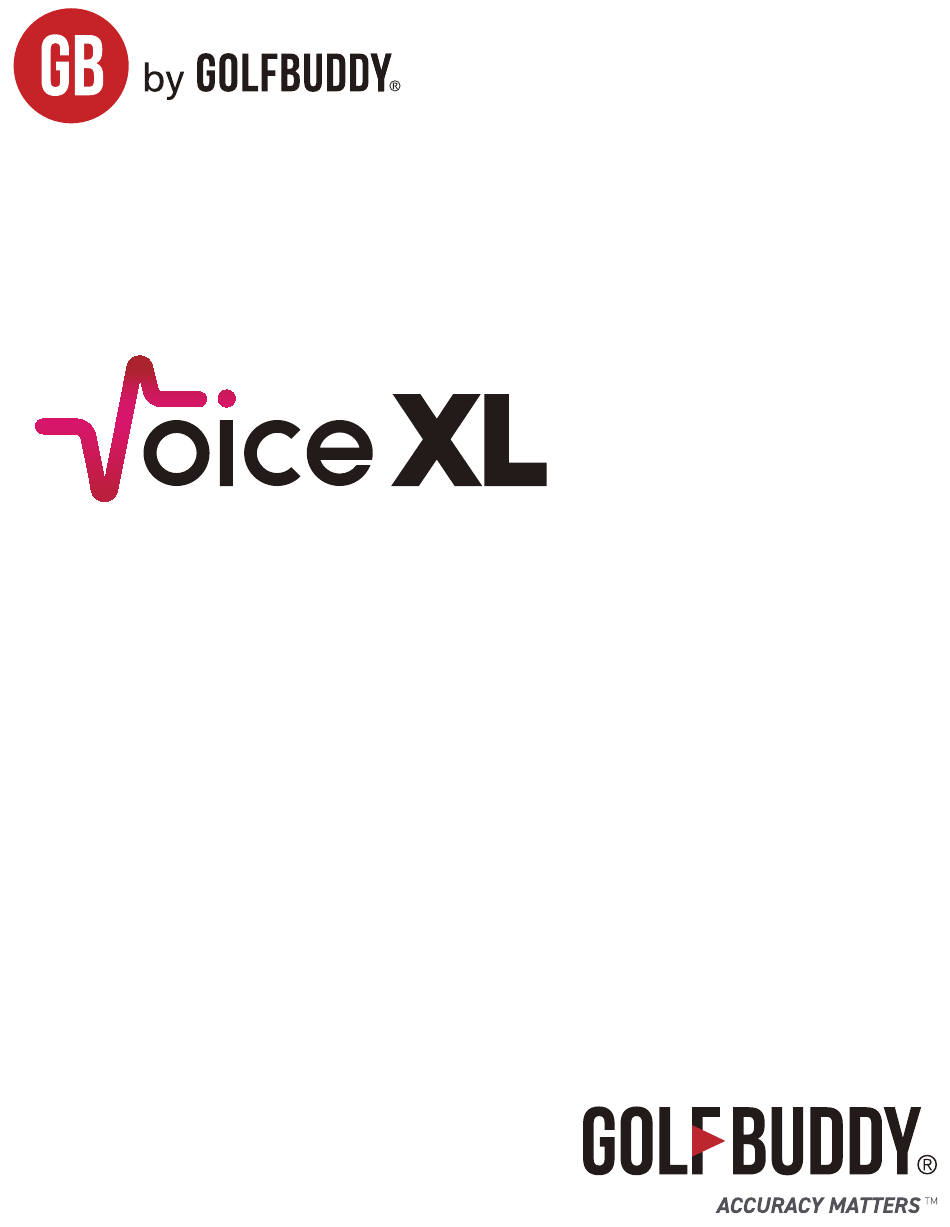

- Page 1 User Guide...
-
Page 2: Device Overview
Components GB VOICE XL_RC USB cable Quick guide GB VOICE XL (Remote control) (C-Type) Device Overview Time/Distance display LED Vibration membrane Remote control Mic. Button part Battery/Status LED Charging port Rope bar Tweeter Woofer QUICK MOUNT (Built-in magnet) -
Page 3: Button Overview
Button Overview Press for 3 sec.: Power ON/OFF One-click while the speaker is on: Check battery level One click: Play/Pause music Double click: Play next song, Triple click: Play previous song Click or hold: Volume up Click or hold: Volume down Power ON: Press for 3 sec., Power OFF: Press for 7 sec. - Page 4 Battery/Status LED Overview • To check the battery level, press the power button once. The battery level is indicated by four white LEDs, and automatically turn off after 10 sec.. 3LEDs : 50~75% 2LEDs : 25~50% 1LEDs : 25% 이하 4LEDs : 75~100% •...
- Page 5 Voice XL_RC ▶ Detachment of the remote control from the speaker • Push the attached remote control on the speaker upwards to detach it. ▶ The remote control battery drops below 5% • When the remote control is powered on and the battery level is below 5%, the LED blinks for 3 sec.
- Page 6 Features ▶ Voice XL Speaker Power On/Off • Press and hold the power button for 3 sec. to turn the speaker on/off with a sound effect. ※ If the speaker is not connected via Bluetooth for 10 min. after it is turned on, it will automatically turn off.
- Page 7 Android smartphone...
- Page 8 iOS smartphone • After Bluetooth connection, the sound of the smartphone is output through the speaker. • After Bluetooth connection, you can make phone calls using the built-in microphone in the speaker. When a call is received, press the play button to answer or end the call, and press and hold the play button to reject the call.
- Page 9 - Step 2: Connecting the device in the GOLFBUDDY app • Follow the steps below to connect the device for Voice XL Speaker app integration.
- Page 10 • After the Bluetooth and device connection for the Voice XL Speaker are completed, the following Voice XL remote control device connection message is displayed, and you can proceed with the device connection by pressing ‘Connect’. • If you attempt to connect the speaker the GOLFBUDDY app without completing “Step 1: Connecting via Bluetooth in Smartphone Settings”, the following message is displayed, and if you press 'Connect', you will move to the Bluetooth connection screen in the smartphone settings.
- Page 11 • Press and hold the button for 3 seconds to turn on the remote control. The LED will flash with a sound effect, and it will automatically search for Bluetooth. • After completing the speaker connection in the Golf Buddy app, proceed with the remote control connection as follows.
- Page 12 ▶ Deleting Connected Devices • On the device management screen, press 'Edit' to delete connected devices.
- Page 13 ▶ Voice XL Speaker and Remote Control Device Settings • You can access the device settings through the device management screen or the round hole map screen. Speaker device settings Remote control device settings...
- Page 14 ▶ To reset the Voice XL speaker • Press and hold the power&- button of the speaker for 5 seconds at the same time. • The speaker will automatically turn on after resetting and require Bluetooth and GOLFBUDDY app device connections. •...
- Page 15 GOLFBUDDY app Features ▶ Starting a Round with GOLFBUDDY app • After completing the device connection and setup, follow the steps below to set up your round and start playing.
- Page 16 ▶ Round Hole Map Hole/Par Info. and changes Current location icon Score info. and edit Connected device info. and settings Distance to front/Center/back of green Round settings Smart Pin Connection icon GPS ON/OFF Switching left/right green Switching green map/hole map Touch IP icon Shot tracking manual entry Club recs and distance to touch IP...
- Page 17 ▶GOLFBUDDY App Round Recording and Statistics • Based on the entered scores and shot tracking information, various insights are provided.
- Page 18 Disclaimer Before using the device, please carefully review the following precautions. - After fully charging the product's battery, it can be used for approximately 10 hours at medium volume. ※ The usage time may vary depending on the operating environment. - Using the product as a power bank may result in decreased usage time.
-
Page 19: Product Specification
Product Specification Items Specification Voice XL : 192 X 71 X 71 mm Size Voice XL_RC : 14mm X Φ32mm Voice XL : 24.7oz (700g) Weight Voice XL_RC : 0.4oz (12g) Usage time About 10 hours water resistance IPX6 Voice XL : Li-ion-polymer 7.2V Battery 2,600mAh(Rechargeable Voice XL_RC : CR2032(Replace) - Page 20 Name of company: GolfzonDeca lnc. Product name: Golf Bluetooth Speaker / Remote Control of Golf Bluetooth Speaker Model: GB Voice XL / GB Voice XL_RC FCC ID:2ALG4GBVOICEXL / 2ALG4GBVOICEXLRC FCC RF Radiation Exposure Statement:This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment.This device and its antenna must not be co-located or operating in...
- Page 21 Name of company: GolfzonDeca lnc. Product name: Golf Bluetooth Speaker / Remote Control of Golf Bluetooth Speaker Model: GB Voice XL / GB Voice XL_RC IC ID:27071-GBVOICEXL / 27071-GBVOICEXLRC Pour le haut-parleur Bluetooth Golf,Les antennes utilisées pour cet émetteur doivent être installées pour assurer une distance de séparation d’au moins 20 cm par rapport à...
-
Page 22: Innovation, Science And Economic Development Canada
Innovation, Science and Economic Development Canada RSS-Gen Issue 5, A1 March 2019 Article 8.4 User manual notice (English) Category General This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: Warning (1) This device may not cause interference.
