AES 650 Manual

AES Model 650
Power / Cable Timer for TV and VCR
Power Input -
Use local power
110 or 220V,
50/60 Hz.
(110V power
cord included)
Timer Switch
Purpose
The AES 650 Timer Switch is used to completely
disconnect the television and VCR from both the an-
tenna / cable input and the AC power input when these
devices are not in use. This provides protection for you
and your video equipment. If you forget to turn off the
AES 650 Timer / Switch after using your TV/VCR, the
timer automatically disconnects the device when it is not
in use.

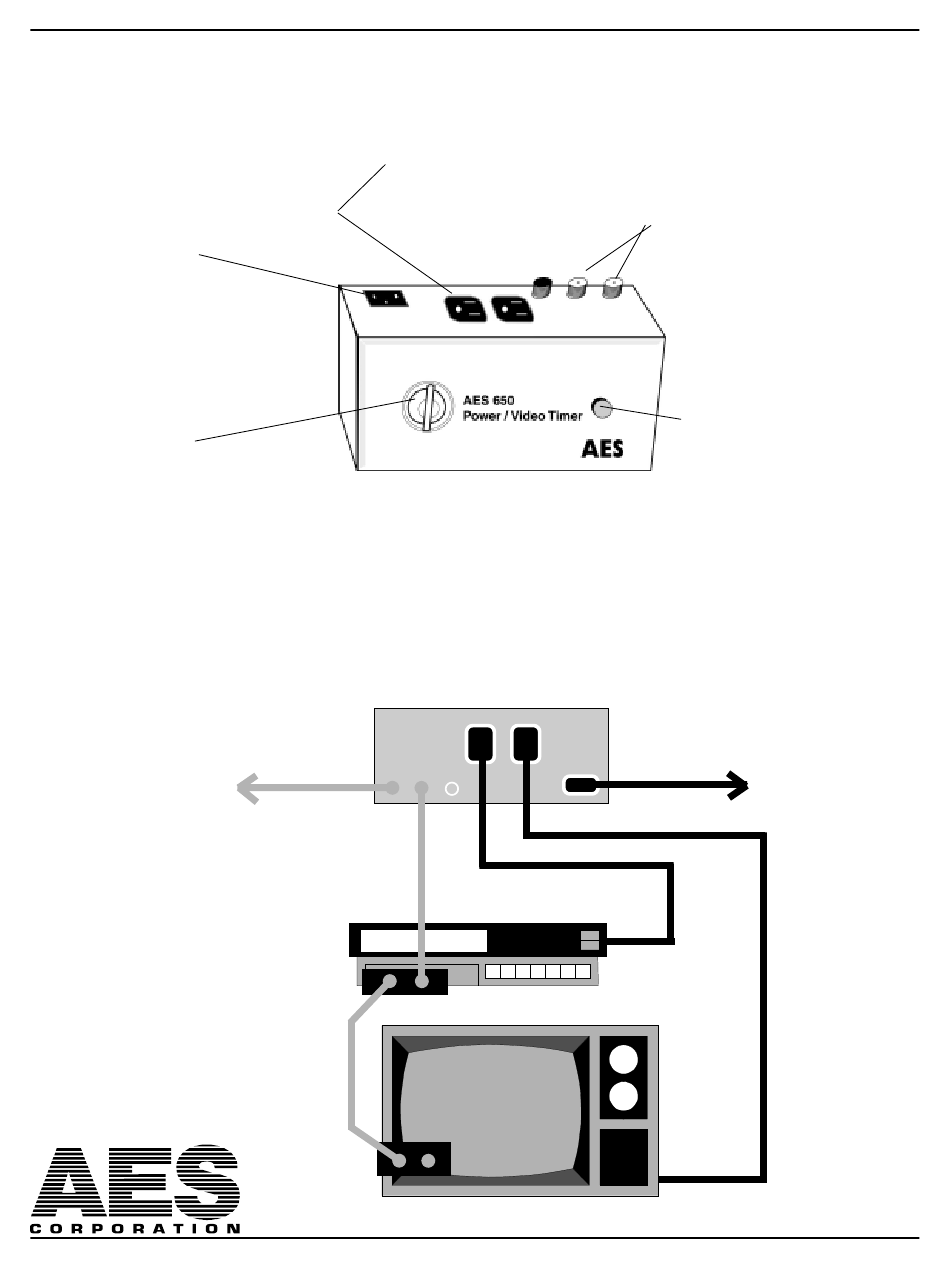

Hook Up
Diagram
285 Newbury St. Peabody, MA 01960 USA
Power Outlets
Output Voltage
equals Input Voltage.
Use adapters as required.
To Cable /
Antenna
VCR Video/
Antenna Input
TV
Video/
Antenna
Input
Tel 978-535-7310
Operation
Turn the timer knob clockwise to the amount of time
you expect to use the TV and VCR. The minimum
time is approximately 30 minutes, maximum time is 6
hours. The indicator on top of the unit will light to
indicate that power and video are now connected.
When you are done using the TV/VCR, turn the knob
back to the OFF position to disconnect the cable and
power connections.
AES 650
Timer Switch
VCR
TV Set
Fax 978-535-7313 www.aes-security.com
40-0650
formerly 40-0579
page 1 of 2
Switched RF Connection
(RF patch cable included)
Power Indicator LED
Main
Power
Input
VCR
Power
Input
TV
Power
Input
REV A1; 11/04; 40-0650-A1
