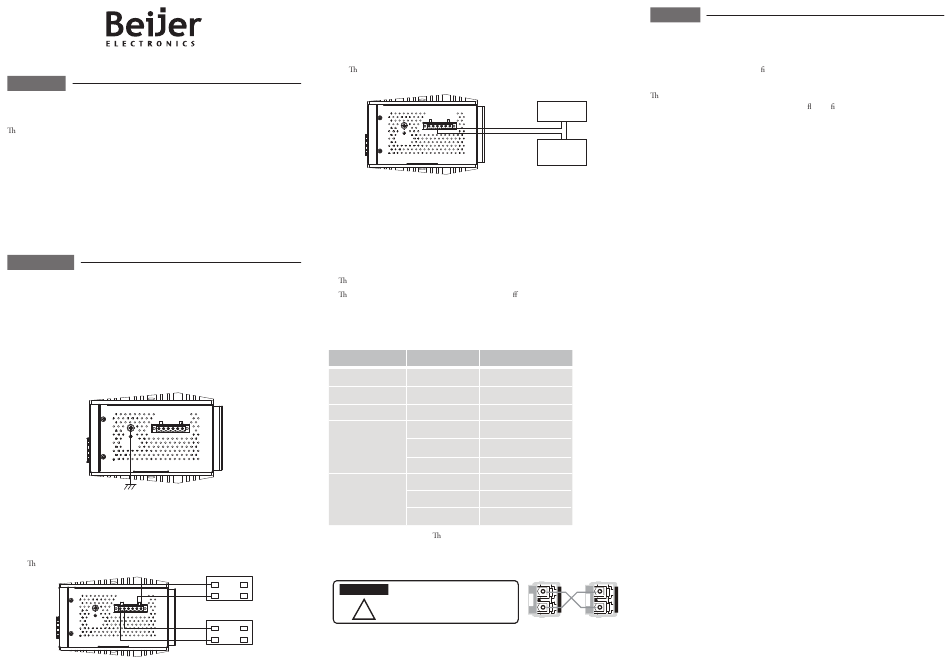

Beijer Electronics JetNet 3210GP Quick Installation Manual

JetNet 3210GP
Quick Installation Guide V1.1
Overview
JetNet 3210GP is an 8-port Gigabit PoE and 2 combo Gigabit RJ-45/SFP Industrial Ethernet
Switch, conforming IEEE 802.3u and 802.3ab standard.
e JetNet 3210GP adopts rugged metal case design to operate in harsh environment
(-40~75°C ). It features one relay output to alarm users if power fails. JetNet 3210GP is
recommended to be powered by DC 12V~56V.
Package Check List
 JetNet 3210GP Ethernet switch
 Quick installation guide
Installation
Mount the unit
Din-Rail mount: Mount the Din-rail clip on the rear of JetNet 3210GP on the DIN rail.
Grounding JetNet 3210GP
There is one grounding screw on the bottom side of JetNet 3210GP. Connect the earth ground
screw of JetNet 3210GP to the grounding surface to ensure safety and prevent noise.
PWR1 ALM PWR2
_ _ _
+ + +
Chassis
Ground
Wiring the Power Inputs
1. Insert the positive and negative wires into the V+ and V- contact on the terminal block
connector.
2. Tighten the wire-clamp screws to prevent the power wires loosened.
Note: e recommended working voltage is DC 24V
DC12~56V
PWR1 ALM PWR2
_ _ _
+ + +
Chassis
DC12~56V
Ground
12AWG
Wiring the Relay Output
The relay output contacts are in the middle of the terminal block connector as shown below.
By inserting the wires relay output alarm will detect power fault, and avoid form a short
circuit.
Note: e relay contact only support 1A current, DC 24V. It does not recommend apply
higher voltage and current that over this specifcation.
Connect to Network
1. Connecting the Ethernet Port: Connect one end of an Ethernet cable into the UTP port of
JetNet 3210GP, while the other end is connected to the attached networking device. UTP
port support auto MDI/MDIX function.
eLNK / ACT LED will turn on for link up and blinking for packet transmit and receive.
e Speed LED will turn on for Gigabit link and turn o for 10/100Mbps link.
LED
PoE (1~8)
P1, P2
Alm
1-10
SFP
2. Connection the Fiber Port:
transceiver. Plug in SFP transceiver and cross-connect the transmit channel at each end to
receive channel at the opposite end.
_
V
ATTENTION
V +
!
AC/DC Power Supply
DC 24V, UL Listed
_
V
V +
Alarm System
PWR1 ALM PWR2
+ _ + _ + _
Chassis
Ground
Extra Power
System
Color Func�on
Amber Powering on
Green Power (1,2) on
Red Power failure
Green Link
Flashes Green Ac�vity
Amber Gigabit speed
Green Link
Flashes Green Ac�vity
Amber Gigabit speed
e SFP port accept standard Gigabit MINI GBIC SFP
TX
This is a Class 1 Laser/LED product.
Don't look into the Laser/LED Beam.
RX
A
Support
5 Years Warranty
Each of Beijer Electronics 's product is designed, produced, and tested with high industrial
standard. Beijer Electronics warrants that the product(s) shall be free from defects in materials
and workmanship for a period of ve (5) years from the date of delivery provided that the
product was properly installed and used.
is warranty is voided if defects, malfunctions or failures of the warranted product are caused
by damage resulting from force measure (such as oods, re, etc.), other external forces such
as power disturbances, over spec power input, or incorrect cabling; or the warranted product is
misused, abused, or operated, altered and repaired in an unauthorized or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT plug in power
connector when power is on.
The product is in compliance with Directive 2002/95/EC and 2011/65/EU of the European
Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
hazardous substances in electrical and electronics equipment (RoHS Directives & RoHS 2.0)
TX
RX
B
