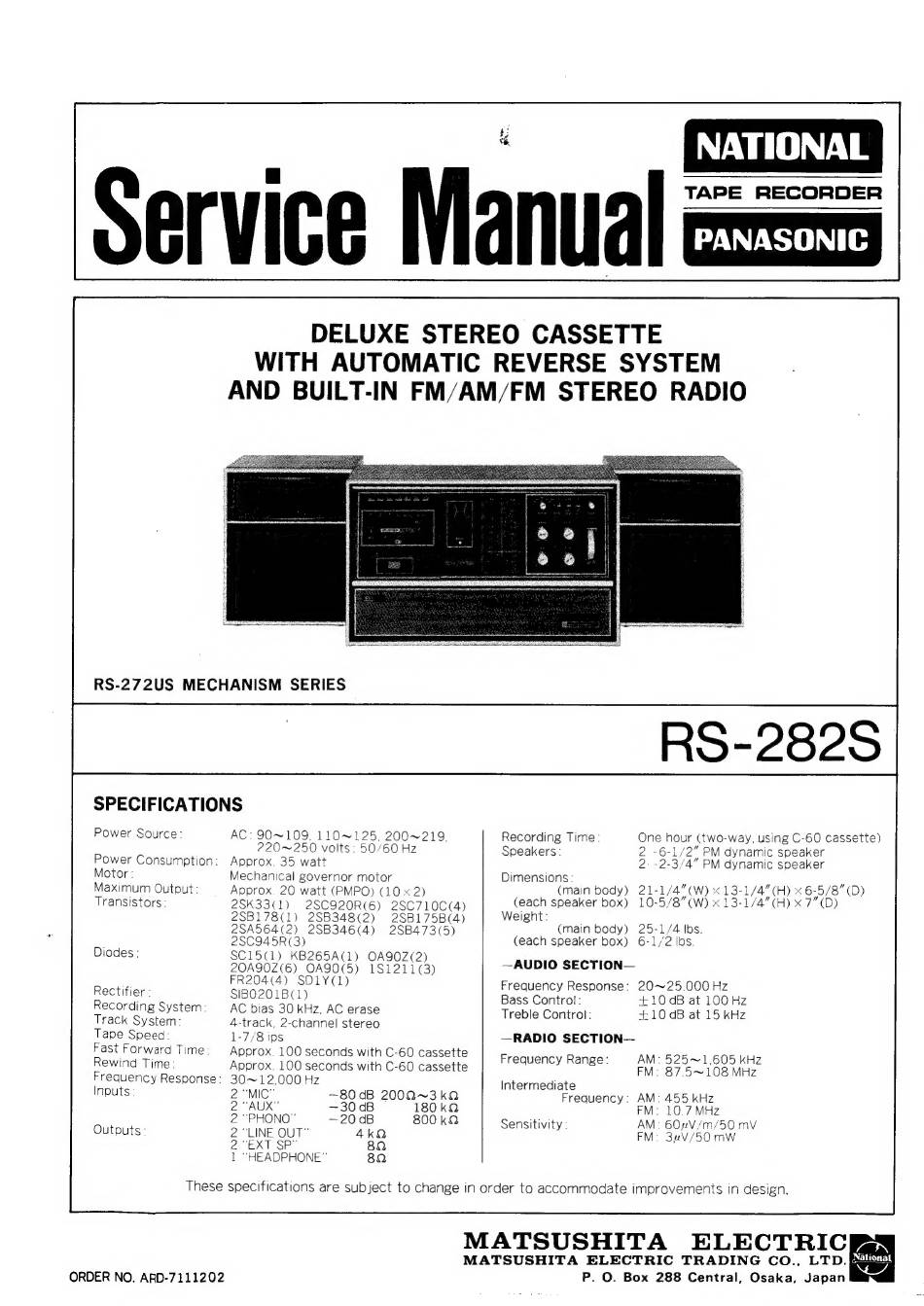

Matsushita Electric PANASONIC RS-282S Service Manual

TAPE RECORDER
PANASONIC
DELUXE STEREO CASSETTE
WITH AUTOMATIC REVERSE SYSTEM
AND BUILT-IN FM/AM/FM STEREO RADIO
RS-272US MECHANISM SERIES
SPECIFICATIONS
Power Source:
Power Consumption:
Motor:
Maximum Output :
Transistors:
Diodes:
Rectifier :
Recording System:
Track System:
Tape Speed:
Fast Forward Time:
Rewind Time:
Frequency Response:
nputs :
Outputs:
AC: 90~109, 110~125, 200~219
220~250 volts: 50/60 Hz
Approx. 35 watt
Mechanical governor motor
Approx. 20 watt (PMPO) (10 « 2)
2SK33(1) 2SC920R(6) 2SC710C(4)
2SB178(1) 2SB348(2) 2SB175B(4)
2SA564(2) 2SB346(4) 2SB473(5)
2SC945R(3)
SC15(1) KB265A(1) OA90Z(2)
20A902Z(6) OA90(5) 181211(3)
FR204(4) SDLY(1)
SIBO201B(1)
AC bias 30 kHz, AC erase
4-track, 2-channel stereo
1-7/8 ips
Approx. 100 seconds with C-60 cassette
Approx. 100 seconds with C-60 cassette
30~12,000 Hz
"MIC"
"AUX"
"PHONO"
"LINE OUT"
"EXT SP"
"HEADPHONE"
-80 dB 2000~3kQ
~30 dB 180 kQ
~20 dB 800 kQ
4AkQ
Recording Time:
Speakers:
One hour (two-way, using C-60 cassette)
2 -6-1/2" PM dynamic speaker
2: -2-3/4" PM dynamic speaker
Dimensions : '
(main body) 21-1/4"(W) « 13-1/4"(H) x 6-5/8" (D)
(each speaker box) 10-5/8"(W) x 13-1/4"(H) x 7"(D)
Weight :
(main body) 25-1/4 Ibs.
(each speaker box) 6-1/2 Ibs.
AUDIO SECTION—
Frequency Response: 20~25.000 Hz
Bass Control: +10 dB at 100 Hz
Treble Control: +10 dB at 15 kHz
—RADIO SECTION—
Frequency Range: AM: 525~1,605 kHz
FM: 87.5~108 MHz
Intermediate
Frequency: AM: 455 kHz
FM: 10.7 MHz
Sensitivity : AM: 602V/m/50 mV
FM: 32V/50 mW
ORDER NO. ARD-7111202
MATSUSHITA ELECTRIC
MATSUSHITA ELECTRIC TRADING CO., LTD.
P. O. Box 288 Central, Osaka, Japan
