Summary of Contents for Minea Afidano JC-50A

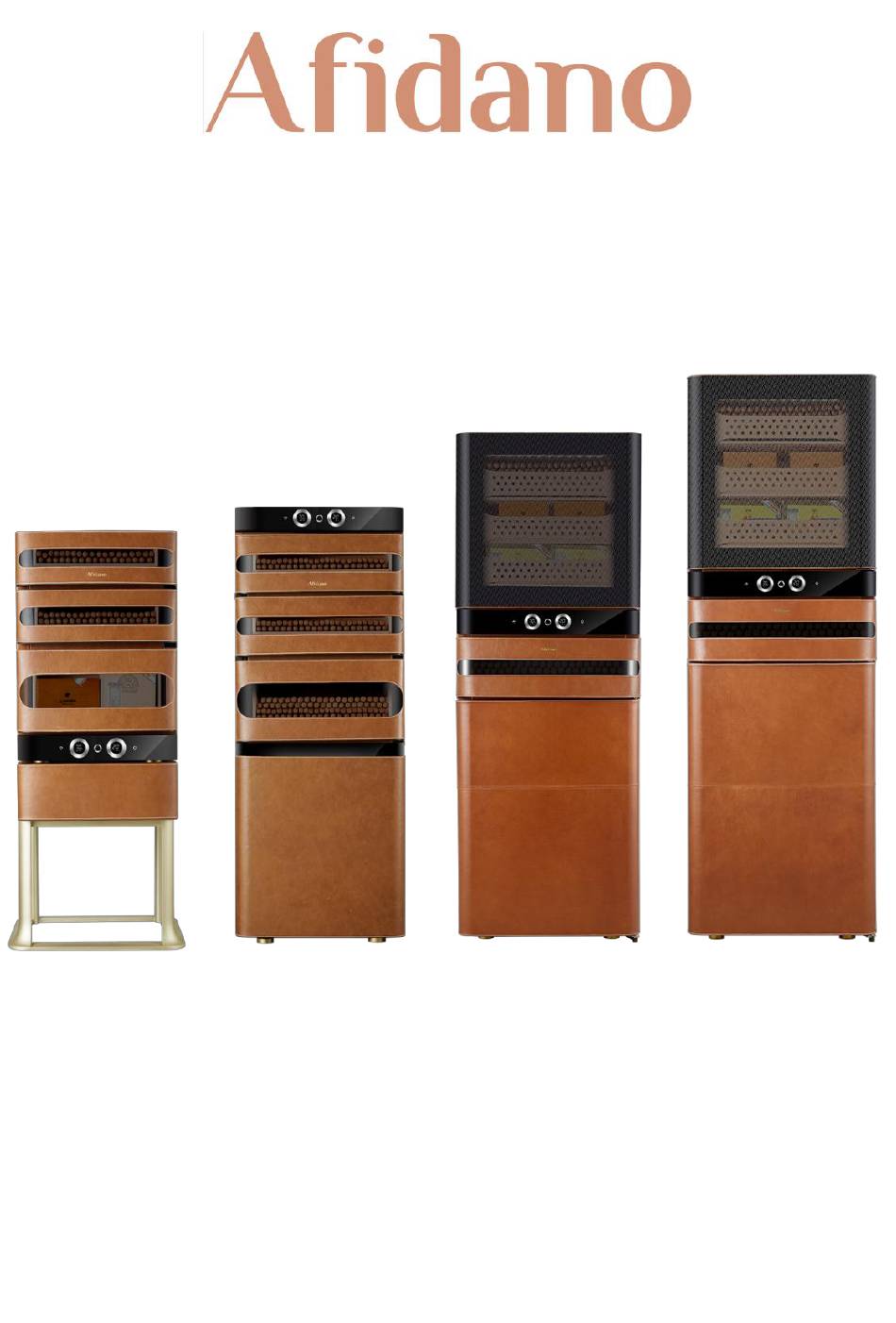

- Page 1 High End Genuine Leather Compressor Cigar Humidor JC-50A / JC-152A / ACH-L6 / ACH-L8 Please read this user manual carefully before using the product. Please keep this user manual for your future reference.
-
Page 2: Table Of Contents
Contents Safety warning……………………………………………………………..……………………01 Pre-use instructions and safety…………………………….……………………………02 guidelines Installation guide………………………………………………………………03 Temperature control instructions………………………………………………………05 Technical parameter……………………………………………………………….…………07 Product structure drawing…………………………………………………………………08 Circuit diagram…………………………………………………………………….……………11 Trouble shooting....……………………………………………………………………12 Cleaning instructions…………………………………………………………………………13 Cigar storage knowledge……………………………………………………………………14... -
Page 3: Safety Warning
Safety Warning To reduce the risk of personal injury or property damage, please read and follow all instructions before using this cigar humidor. This humidor should only be used indoors in a dry and level location. Do not attempt to repair or disassemble the humidor. Contact a qualified technician if repairs are needed. -
Page 4: Pre-Use Instructions And Safety
Daily use instructions: Open the door to 180° to allow space for shelves when you need to pull them out, avoiding accidental scratch on door seal. The door will automatically lock after power-off and requires re- connected to power to unlock. When power-out or cleaning the humidor, unplug the power and wait ... -
Page 5: Guidelines Installation Guide
5. Working environment temperature shall be 50-90 ° F indoor. If ambient temperature out of this range, the humidor would not work properly. 6. Keep at least 2inch gap at both sides, and 4inch at top from top and back for proper heat ventilation. - Page 6 1. Connect to Wi-Fi: Turn on the humidor, press and hold the Wi-Fi button for three seconds. You will hear a beep, and the Wi-Fi indicator light will flash for 60 seconds. Open AFIDANO app on your smartphone and follow these steps: Add Device -> Select Category -> Choose "Refrigerator"...
-
Page 7: Temperature Control Instructions
If Wi-Fi is successfully connected, the Wi-Fi indicator light will turn off. 2. Light: press to turn on/off the inner light. Press and hold to switch degrees Fahrenheit between Celsius display. 3. Humidity adjustment: The left knob is for humidity adjustment, turn clockwise to increase the humidity, counterclockwise to reduce between 60%-75%. - Page 8 means registration fails. Repeat the procedure steps until the recording succeeds. Delete all fingerprint: Press the Wi-Fi button and the light button at the same time, and then press the light until "02" is displayed. Press the Wi-Fi button again to confirm. The fingerprint lock flashes green light 3 times, delete successfully.
-
Page 9: Technical Parameter
alarm stops. 10. Precautions: The maximum number of fingerprints that can be registered is 50. If the number exceeds the limit, all fingerprints need to be deleted first, and then re-registered one by one. If there is no response after pressing the finger for 4-5 seconds, release the finger and wait for 3-5 seconds, and then try again. -
Page 10: Product Structure Drawing
Product illustration: 1. Control panel 2. Doors and windows 3. Foaming door 4. Fan 5. Sensors 6. Magnetic lock 7. Slide rails 8. Adjustable feet 9. Water tank cover 10. Middle door hinge 11. Lower door hinge 12. Door lock 1. - Page 11 Specification: Model: ACH-L6 ACH-L8 Volume: 9.6 cu.ft 13.2 cu.ft Rated Voltage: 110V 110V Rated Current: 1.0 A 1.0A Rated Frequency: 60Hz 60Hz Climatic type: SN & N & ST & T SN & N & ST & T Heating Power: 115W 150W Temp.
- Page 12 1. Upper glass door 2. Control panel 3. Mid drawer 4. Lower foam door 5. Cigar drawer 6. Temperature sensor 7. Sliding rack 8. Magnetic lock 9. Water refill cap 10. Sliding rail 11. Leather handle 12. Legs 13. Upper door hinge 14.
-
Page 13: Circuit Diagram
Circuit Diagram: JC-50A JC-152A ACH-L6 / ACH-L8... -
Page 14: Trouble Shooting
Trouble shooting Trouble shooting Problem description Check & Fix The cigar humidor is Check power cord plug in power outlet. not working. Check if the product is turned off. Check if switch is damaged or the fuse blown? The temperature inside the cabinet is not low enough. Inner temperature is Check if temperature is correctly set. -
Page 15: Cleaning Instructions
Cleaning instructions: Before cleaning, please unplug from power outlet to ensure that the cigar humidor is powered off. Remove all items stored in the humidor and temporarily keep them in low temperature space. Remove all shelves and cases. Use a clean damp cloth to clean the interior, door seal and control panel. Note! Do not use any chemical agents. -
Page 16: Cigar Storage Knowledge
Leather Daily Maintenance 1. Keep leather away from direct sunlight and heat sources, which can cause fading and drying out. 2. Regularly clean leather with a soft, dry cloth to remove dust and dirt. For more stubborn stains, use a damp cloth with a mild soap solution. 3. - Page 17 believed that cigars are best stored in an environment suitable for smoking. Many cigar enthusiasts believe that the "ideal" temperature in this environment is about 25°C and the relative humidity is about 70% or a similar range. If the cigars are too dry, they will overheat and burn quickly and unevenly when smoked.
- Page 18 Limited One Year Warranty Warranty Terms: The manufacture warrants to the original purchaser of this product that the product will be free from manufacturing defects in workmanship and material for a period of 1 year from the date of original purchase when this major appliance is operated and maintained according to instructions attached to or furnished with the product.
- Page 19 Warranty Exclusions: The warranty will not apply if damage is caused by any of the following: 1. Damage to the product due to misuse, mishandling and abuse. 2. Product not assembled or installed according to manufacturer’s instruction. 3. Repairs by unauthorized persons or service centers with unauthorized spare parts.
- Page 20 Manufacturer Information MINEA ELECTRICAL APPLIANCE CO., LTD Email: info@afidano.com Importer info: Kalamera Inc Add: 18523 Gale Ave, Industry, CA, 91748, USA Service@kalamera.com...
