SETUP AND INSTALLATION

Adjusting the projector image

Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Zoom, focus, and lens shift
‡ To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
‡ To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
‡ To adjust the lens, turn the lens shift ring to the left or to the right to adjust lens to the left, or right.
Notee: The projector will focus at a distance of 1.3m to 9.4m.
16 English

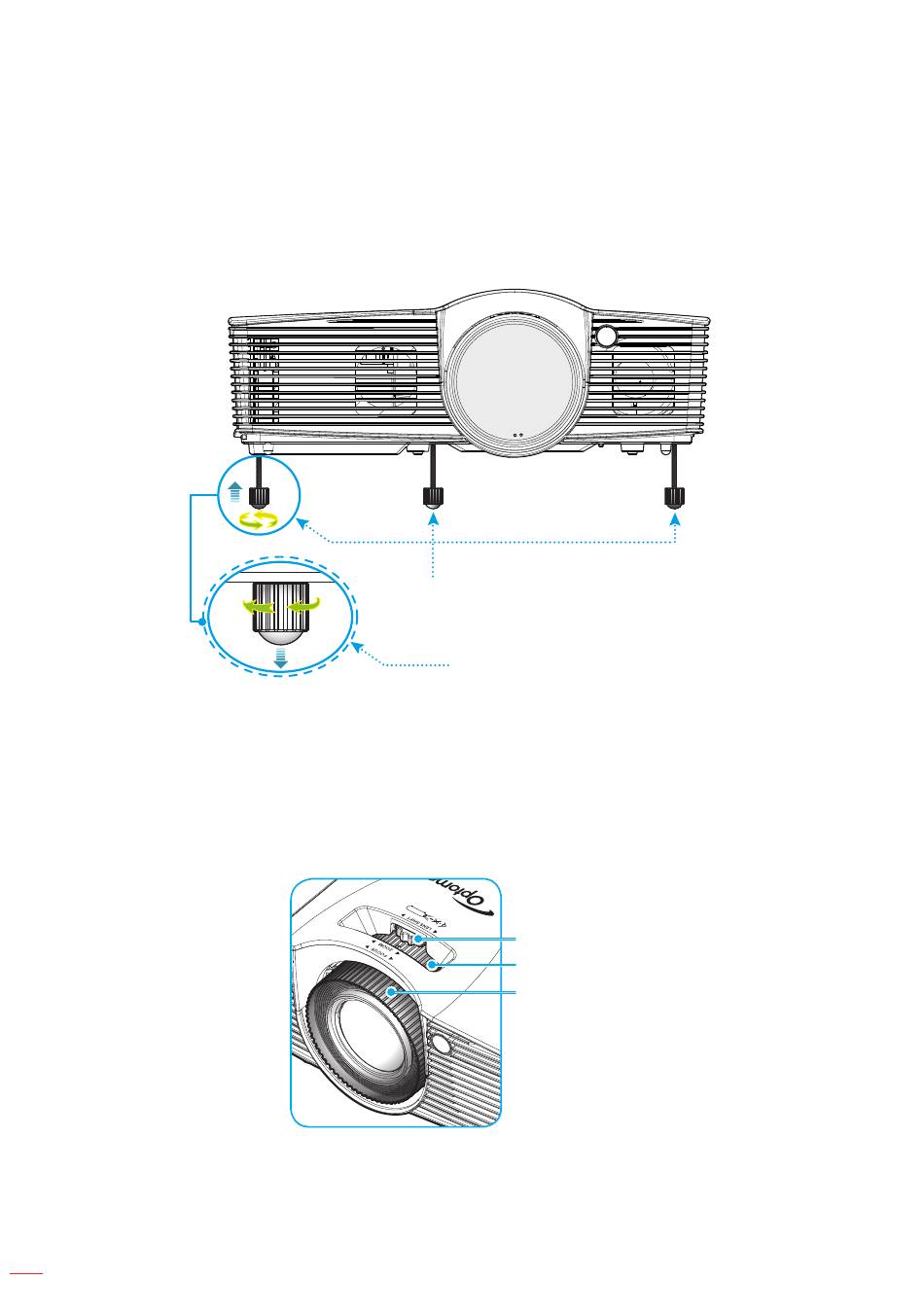

Tilt-Adjustment Feet
Tilt-Adjustment Ring
Lens Shift Ring
Zoom Ring
Focus Ring
