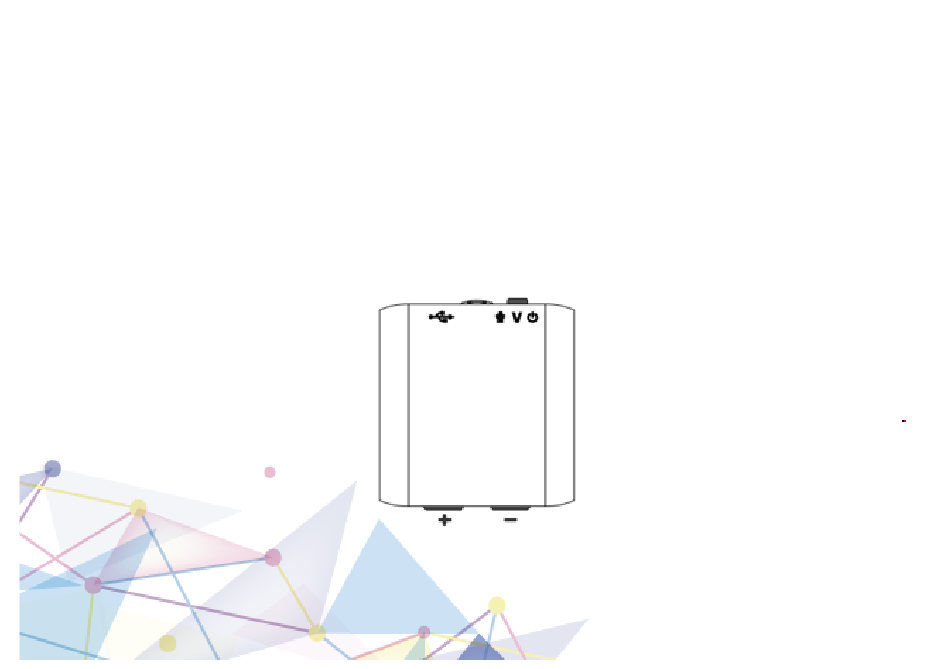

- Page 1 Portable Mini Voice Recorder User's Manual - Q63 *Please read this user guide carefully before use*...
- Page 3 Important Note Before Use ★ Check Instruction Video at device disk on computer or Youtube https://youtu.be/0VmtzXwf8SA or scan the code below before use. ★ Must check file “Important Note Before Use” at computer if have problem or need video instruction or download tools. ★...
- Page 4 Instruction Video Link ★ Operation Guide - https://youtu.be/0VmtzXwf8SA ★ Date/Time Setting - https://youtu.be/EAA8GetwgoQ ★ Password Setting - https://youtu.be/c7nWluGLbHM ★ Format Instruciton - https://youtu.be/bs99KSih76c ★ Reboot Instruciton - https://youtu.be/iov705MI5Lw ★ Data Recovery - https://youtu.be/8rs8Gm69BWA ★ Voice Activated Recording Setting - https://youtu.be/W8RIGzGI5kw ★...
- Page 5 Instruction Video QR Code Operation Time Setting Password Format Reboot Recovery Voice Activated Charging Contact Email Playback Computer Connection...
- Page 6 Product Illustration Device: Three-steps key: Next/long press VOL+ switch Earphone/ key: Playback mode change/long Charge/ press VOL- USB port Three-steps-switch Power on ( ) Voice activated recording ( Indicator - key + key light Power off ( ) ★ Note: ►Press: After pressing button, release it immediately.
- Page 7 Indicator Light Color Illustration Working Status Light Color Change Light on red for 3s, flash red light 3 times, light off Normal Recording Voice Activarted Rec Light on red for 3s, flash blue light 3 times, light off Saving Light on red 1-2s, light off Play Flash red light when play recordings Flash blue light when play musics...
- Page 8 Recording Operation 1. Normal Recording - Turn On ① Without earphone, push three-step-switch to left “ ” position ② Indicator light keep on red for 5s, flash red 3 times then off, device start ‘normal recording’. 2. Saving - Turn Off ①...
- Page 9 Recording Operation 4. Check Recording Status ① At ‘normal recording’ state, long press "+" or “-” button, Indicator flash red once means it’s at ‘normal recording’. ② At ‘voice activated recording’ state, long press "+" “-” button. Indicator flash blue once means it’s at ‘VAR recording’.
- Page 10 2. Music/Recordings Playback Switch Press “-” button once to switch between music/recording playback. ★ Note: · Indicator light keep flash red when play recording file. · Indicator light flash blue when play music file. · If there’s no file at device, it flash blue/red alternatively.
- Page 11 5. Fast Forward / Fast Backward Step 1: plug audio cable & earphone, push switch to “ ” position. Step 2: long press "-" button for 5 second before release it. Step 3: ‘playback’ state, Long press “+”or ”-” button to fast forward/backward.
- Page 12 current file successfully). ② Delete All File: at ‘pause’ state, long press "-" and “+” button at same time until flash red light (this indicate deleting all file successfully). ★ Note: ① At recording/music playback state, delete all files is to delete all recording/music files.
- Page 13 Step 3: After light off, it enters “Recording while charging” state. ★ Note: In charging state, both the VOR recording and the normal recording function can be used. 3. Listening While Recording - Hearing Aid Step 1: Push switch to “...
- Page 14 6.Time Synchronization Tool Please use this tool or “FACOTRY” file to update date/time before first use. Please follow operation below or video guide at Youtube https://youtu.be/EAA8GetwgoQ Method 1 - Time Tool (for Windows system) •Step 1: Connect to computer, enter device's disk, open file folder named "Time Synchronization Tool".
- Page 15 Step 2: Change number after DATE, format must be YY-mm-dd eg: 2021-06-01 Step 3: Change number after Time, format must be HH-mm-ss eg:11:28:03 Step 4: After finish setting, click “File-Save” to save setting. Charging There are two ways to charge the device. ►...
- Page 16 Connecting to Computer ● Turn off device first. Connect the device to computer through original White USB cable included. Recording File path “My PC(Window)/Finder(Mac) - VOICE-RECORD-VOICE” Files can be transferred quickly between the device and computer. ★ Note: 1. Support system are WindowME/2K/XP 7,8,10 Vista,Mac OS10 or above.
- Page 17 OTG Connection to Phone ● The device support quick file transmission from the device to Android phone/iPhone through OTG function. Turn off device first. ► Android Phone: Connect original usb cable with the 2-in-1 OTG cable. Plug original USB cable to the recorder first, then plug the 2-in-1 OTG cable into your Andriod phone.
-
Page 18: Specification
Precautions ● When charging or connecting to computer, turn off the device first. Please use“Safely Remove Hardware”(in Windows) or “Eject”(in Mac os) when disconnect device from computer. ● After finish recording, must turn off the device to save the recordings first, otherwise the recordings might be lost or damage. ●... - Page 19 Mini Voice Product Product 0.39oz Recorder Weight Play MP3/WAV/W Product Size 1.1x1.1x0.3 inch Format Recording Distortion <0.008% Format Frequency Sampling 20Hz-20KHz 48KHz Response Rate Signal to noise Headphon >50db 3.5mm ratio e Interface Charging USB interface USB 2.0 2-3 Hour Time Support Window...
-
Page 20: Troubleshooting
Troubleshooting 1. How to format or reboot device? ① Format: drive related problems like device’s drive memory shows full in an abnormal state or recording file names is messy or some recording file’s memory is incredibly large or some recording files are damages, format device works. ●... - Page 21 Troubleshooting 2. It don't work like do not record or can’t turn on? · · Root causes: No power or no memory/ Far distance or low · voice that can’t detect sound/ Wrong operation/ Product · software crash/ Product damage for non-quality related problem. ·...
- Page 22 Troubleshooting 4. I connect this device to computer but nothing shows up at computer? ﹡ ﹡ Root Causes: Not original USB cable/ Damaged original USB ﹡ ﹡ cable/ Damaged USB port/ Not compatible operaion ﹡ ﹡ system/ Mac book Series/ Other unknown reason.
- Page 23 Troubleshooting 5. The user manual or operation is complicate? *Please check 'video instruction' at product page or device’s disk at cpmputer or Youtube link “https://youtu.be/0VmtzXwf8SA”. *Please contact us with your detailed problems. 6. Voice activated recording does not work? · Resolution: Follow operation guide at user manual or instruciton video...
- Page 24 Troubleshooting 7. The device can not be charged or charging too hot? · · Root causes: Not using our original USB cable/ Original USB · cable is damaged/ Product damaged due to some wrong · operation/ Electric current or voltage is too big when charge by ·...
- Page 25 Troubleshooting 8. The recordings can not play at computer? Check guide at Video “https://youtu.be/uLpX59hw_Kc” to know how to playback recordings. Please use WAV-format supported media player to play recordings. For Window, use "Windows Media Player" ; for Mac, download VLC Media Player.
- Page 26 Troubleshooting 10. Time tool or Password tool can not open? ● The 2 files are EXE format file which may not be support by Mac system. Use Window system or “google” to find software to transform to Windows system. 11. If miss any product, accessories, files, or not works? If pacakge and product damaged when receiving? ●...
