r

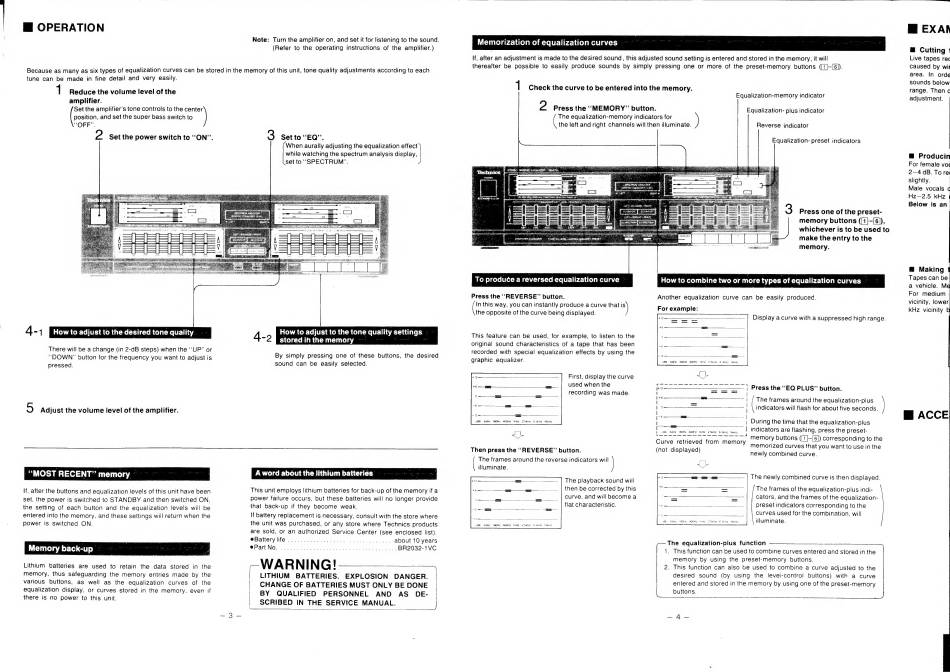

Mi OPERATION
Note: Turn the amplifier on, and set it for listening to the sound.
(Refer to the operating instructions of the amplifier.)
Because as many as six types of equalization curves can be stored in the memory of this unit, tone quality adjustments according to each
tune can
be made
in fine detail and very easily.
1
Reduce the volume level of the
amplifier.
Set the amplifier's tone controls to the center
(rston and set the super bass switch to
"QFF".
2
Set the power switch to '"ON''.
4-1
How to adjust to the desired tone quality
There will be a change (in 2-dB steps) when the ''UP" or
"DOWN"
button for the frequency you want to adjust is
pressed.
5
Adjust the volume level of the amplifier.
3 Set to "EQ".
When aurally adjusting the equalization effect
while watching the spectrum analysis doa
set to "SPECTRUM".
A
How to adjust to the tone quality settings
stored.ih the memory
By simply pressing one of these buttons, the desired
sound can be easily selected.
"MOST RECENT" memory
If, after the buttons and equalization levels of this unit have been
set, the power is switched to STANDBY
and then switched ON,
the setting of each
button and the equalization
levels will be
entered into the memory, and these settings will return when the
power
is switched
ON.
Memory back-up
Lithium
batteries are used to retain the data stored
in the
memory,
thus safeguarding the memory entries made by the
various
buttons,
as well as the equalization
curves
of the
equalization display, or curves
stored in the memory,
even
if
there is no power
to this unit.
A word about the lithium batteries
This unit employs lithium batteries for back-up of the memory if a
power failure occurs, but these batteries will no longer provide
that back-up
if they become
weak.
If battery replacement is necessary, consult with the store where
the unit was purchased, or any store where Technics products
are sold, or an authorized
Service Center (see enclosed
list).
SBattery liens
vests
Lalo aSts ge ateann
own.
about 10 years
@ Part NOs issn tig eietui seh nclnea nica.) ake Relteteoe: BR2032-1VC
WARNING!
LITHIUM
BATTERIES.
EXPLOSION
DANGER.
CHANGE OF BATTERIES MUST ONLY BE DONE
| BY
QUALIFIED
PERSONNEL
AND
AS
DE-
i
|
SCRIBED
IN THE SERVICE
MANUAL.
J
Memorization of equalization curves
If, after an adjustment is made to the desired sound,
this adjusted sound setting is entered and stored in the memory, it will
thereafter
be possible to easily produce
sounds
by simply pressing one or more
of the preset-memory
buttons
({1]-[6)).
1
Check the curve to be entered into the memory.
2
Press the ''MEMORY" button.
Equalization-memory indicator
Equalization- plus indicator
The equalization-memory indicators for
}
the left and right channels will then illuminate.
Reverse indicator
© astaabare won
Press the "REVERSE" button.
a this way, you can instantly produce a curve that )
the opposite of the curve being displayed.
This feature can be used, for example, to listen to the
original sound characteristics of a tape that has been
recorded with special equalization effects by using the
graphic equalizer.
First, display the curve
used when the
recording was made.
-R2—
(0B) 63Hz 16OHz 400H2 tkHz 25kHz 6 3KHZ IBKHZ
Then press the "REVERSE"
button.
The frames around the reverse indicators will
illuminate.
The playback sound will
then be corrected by this
curve, and will become a
flat characteristic.
sOBI 63He
16OHZ SO0HZ KHZ 2 5KHZ 6H GRHE IHRH
Equalization- preset indicators
3
Press one of the preset-
memory buttons ((1}-(6]),
whichever is to be used to
make the entry to the
Sai
a e
ina
memory.
How to combine two or more types of equalization curves
Another
equalization
curve
can
be easily produced.
For example:
Display a curve with a suppressed high range.
—-|
Press the "EQ PLUS" button.
During the time that the equalization-plus
| indicators are flashing, press the preset-
memory buttons ((1]-[6]) correspcnding to the
memorized curves that you want to use in the
newly combined curve.
.—
— - —
Curve
retrieved
from memory
(not displayed)
The frames of the equalization-plus indi-
cators, and the frames of the equalization-
preset indicators corresponding to the
curves used for the combination, will
illuminate.
OB) 63H2
"6OMZ S00H2
Tez 2 SKHZ 6 3kH2 16HZ
1. This function can be used to combine curves entered and stored in the
memory
by using the preset-memory
buttons.
2. This function can also be used to combine
a curve adjusted to the
desired
sound
(by using the levei-control
buttons)
with a curve
entered and stored in the memory by using one of the preset-memory
buttons.
arn equalization-plus function
Noss
eese
ey eee
MEXA
@ Cutting
Live tapes red
caused by wi
area.
In orde
sounds below
range. Then q
adjustment.
@ Produci
For female vod
2~4 dB. Tore
slightly.
Male vocals
q
Hz~2.5
kHz
Below
is an
@ Making
Tapes can be
a vehicle.
Me
For medium
vicinity, lower
kHz vicinity b
