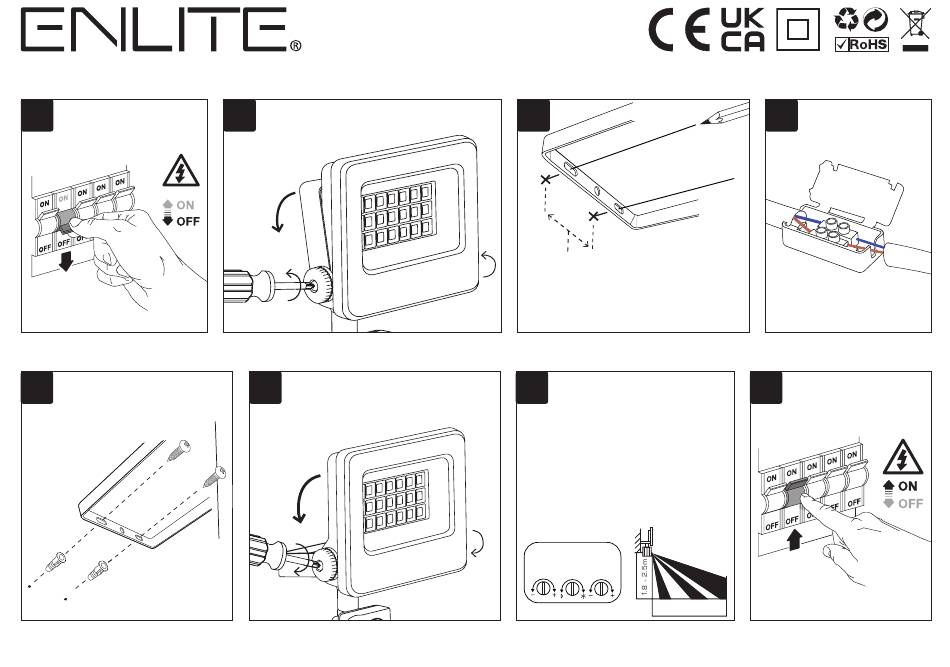

Screws and plugs not supplied
CODE: FL1P, FL2P, FL3P, FL4P
IP65 IP65 NON-DIMMABLE POL YCARBONATE
LED FLOODLIGHT WITH PIR SENSOR
2
Loosen the x2 screws on side bracket
holders, and rotate the bracket
b.
a.
6
Rotate the luminaire to the desired
position, tighten the x2 screws on
side bracket holders to lock in place
a.
b.
3
Fixing Centres:
FL1P = 43mm - 93mm
a.
FL2P = 43mm - 100mm
FL3P = 43mm - 100mm
FL4P = 57mm - 132mm
7
Adjust the PIR sensor to the
desired poisition and settings
SENS:
The sensitivity of the detector can be adjusted
according to the use of the location.
Detection range can be adjusted from 4m to 10m.
LUX:
The level of illuminance at which the PIR detector
can be activated so that it can detect movement.
Levels can be adjusted between 5 and 2000 Lux.
TIME:
The period that the lamp stays on after no more
movement is detected. Can be adjusted between
3secs to 8mins.
b.
SENS LUX TIME
4
Live - Brown (L)
Neutral - Blue (N)
Connect using suitable
IP Rated Junction Box.
8
120 degree
PIR spread
4 - 10m PIR range
