Wren MiniGlobe MGR4 Instructions

MGR4
MiniGlobe, Recessed Mount
Instructions
DESCRIPTION
The MGR4 MiniGlobe is an integrated solution including a high-quality camera, lens
and housing with stand-off adapter. Housing is designed for installation recessed into
ceiling. Like all Wren products, it is designed for quick and simple installation.
MODELS
Models are available with white or black trim rings; bronze, clear, or mirrored domes;
fixed, varifocal, and/or auto-iris lenses; and other features. Consult factory for
options.
SUGGESTED INSTALLATION EQUIPMENT
Slip-joint pliers
Box knife
Standard Phillips-head screwdriver

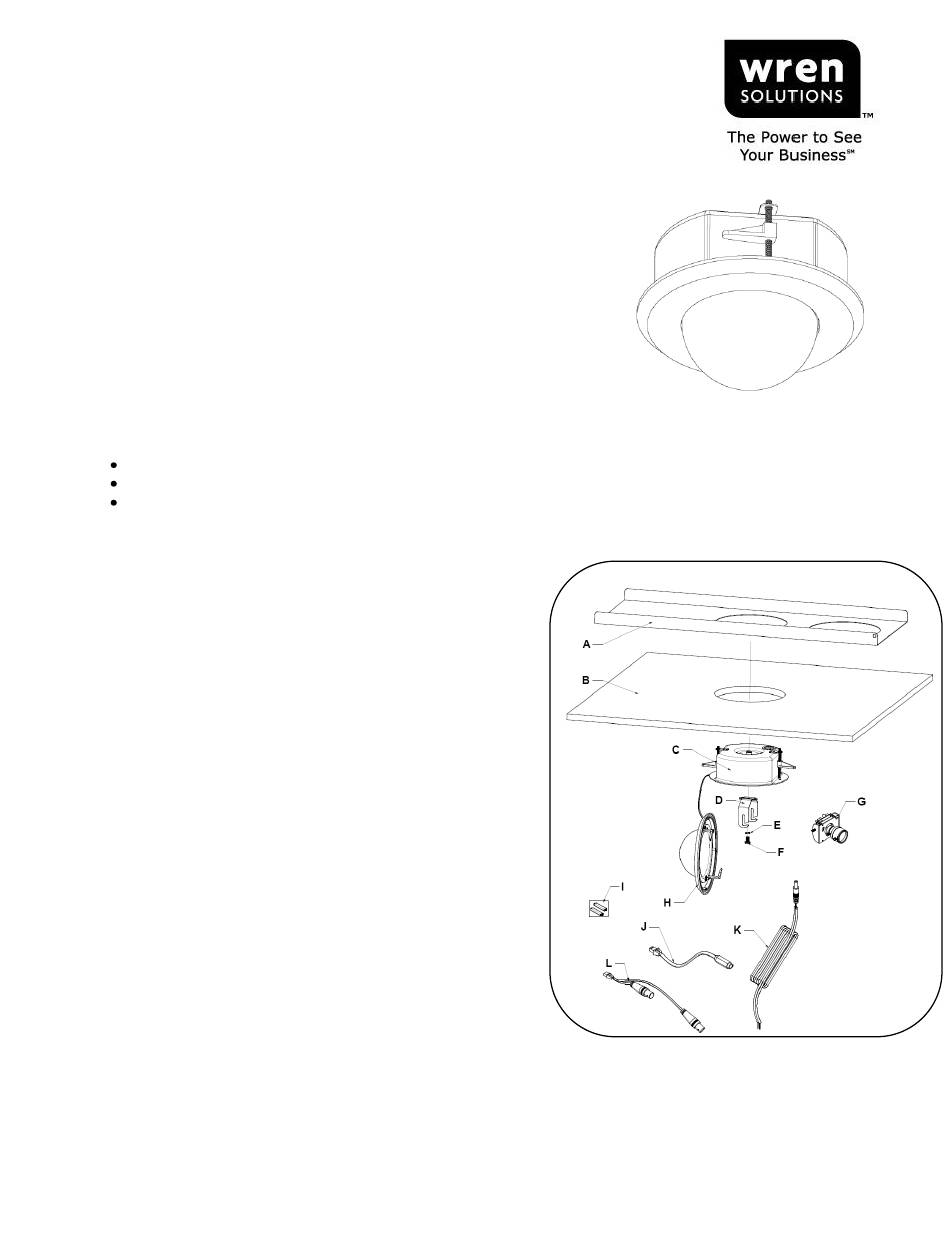

COMPONENT LIST [Figure 1]
A. Support Plate (optional)
B. Ceiling Tile (not included)
C. Upper Housing
D. Hanger Bracket
E. Wave Washer
F. Bracket Screw
G. Camera Assembly
H. Dome and Trim Ring Assembly
I. Butt Connectors (2)
J. Power Connection Lead
K. Power Extension Lead
L. Video Connection Lead
NOTE: Certain camera models are shipped with a power connection lead with
flying leads that connect directly to the wire run from the master power supply.
A power extension lead is not included in these models. In addition, the video
lead may differ slightly from that shown.
IMPORTANT SAFETY INSTRUCTIONS
Prior to installation and use of this product, please observe the following
warnings:
1. This installation should be made by a qualified service person
and should conform to all local codes
2. Use only a Class 2 power supply of the required output rating
as listed on individual units and specified in the power
requirements.
3. Using replacement parts or accessories other than Wren may
invalidate the warranty.
4. Make sure that the installation method is capable of supporting
three (3) times the weight of the MG1 housing and enclosed contents.
PROPERTY OF WREN
124 WREN PARKWAY • JEFFERSON CITY, MO 65109 • TOLL FREE (800) 881-2249 • FAX (877) 893-2317
Page 1 of 4
www.wrensolutions.com
INDOOR HOUSINGS:
MGR4
MINIGLOBE, RECESSED MOUNT
FIGURE 1
7L197 REV-E 8-16-2010
