vorex screens VOR-08 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

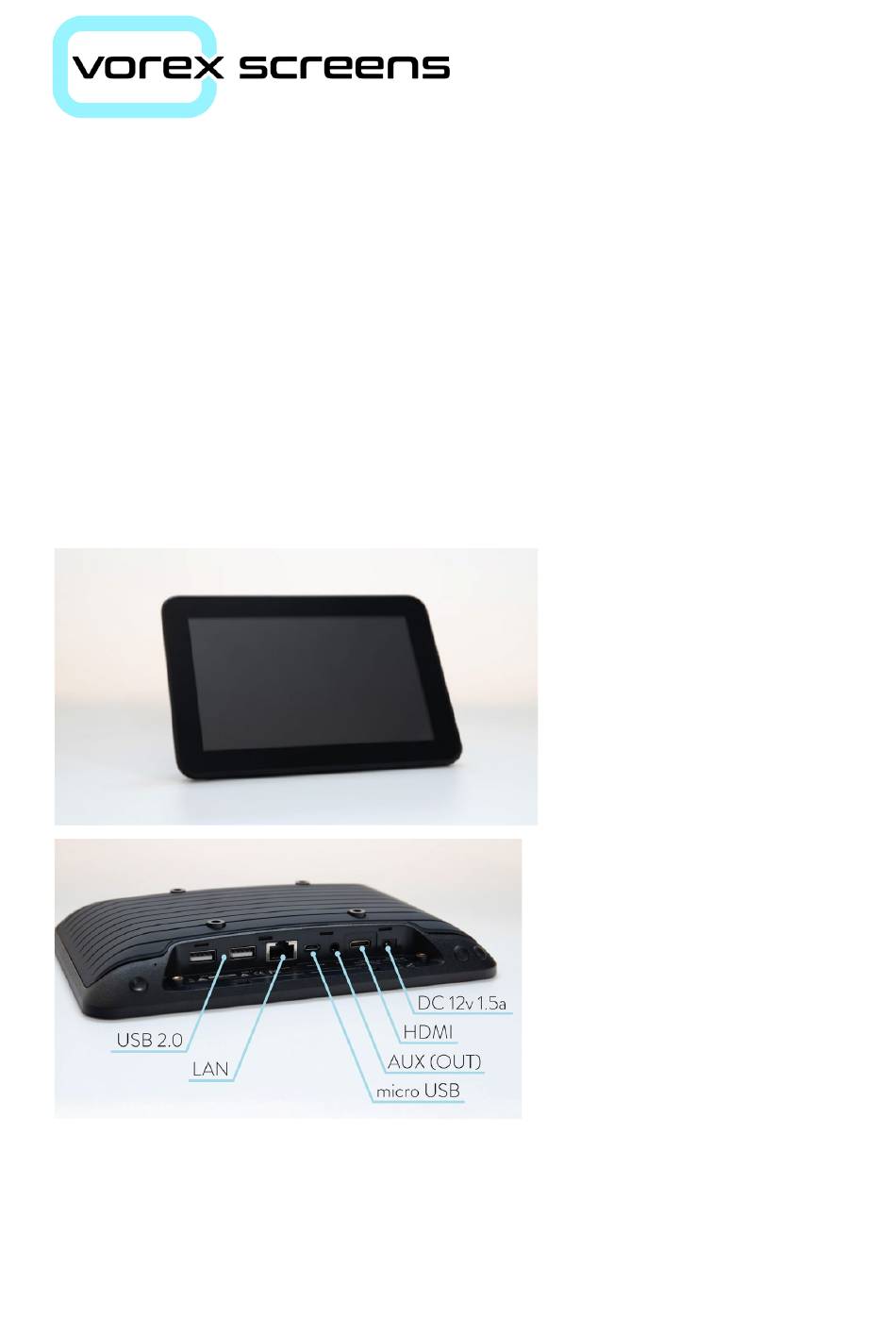

VOR-08 Touch Screen
User Manual and Datasheet
Suitable for iSMA MAC36, EasyI/O, JACE, TREND, DEOS, Cylon, Innotech
Omni and devices with html5.0 web pages
For VOR-08-PS surface mount and VOR-08-PF flush mount screens
Version 1.1 23
May 2022
rd
8" screen front
view (without
trim for "PF"
version)
8" Screen rear
View (without
trim for "PF"
version)
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOR-08 and is the answer not in the manual?

Questions and answers

Related Manuals for vorex screens VOR-08

Summary of Contents for vorex screens VOR-08

  • Page 1 VOR-08 Touch Screen User Manual and Datasheet Suitable for iSMA MAC36, EasyI/O, JACE, TREND, DEOS, Cylon, Innotech Omni and devices with html5.0 web pages For VOR-08-PS surface mount and VOR-08-PF flush mount screens 8” screen front view (without trim for “PF”...
  • Page 2 Revision Issue Date Comments 15/05/2021 Original Issue 23/05/2022 Minor amendments Version 1.1 23 May 2022 P a g e...
  • Page 3 Index Page Introduction Warranty Returns for Credit Operating & Technical Specifications Mounting Dimensions/Panel Cut outs • Flush Mounting • Surface Mounting • Set Up • Default Set Up Changing the Target IP address • Normal Start Up • Changing the Screen IP address •...

  • Page 4: Warranty

    Material Authorisation (RMA) which should be completed in full and returned with the screen. Vorex Screens Ltd are not responsible for the costs of the returned items Vorex Screens Ltd reserves the right to repair or replace a faulty screen at their sole discretion. Returns for Credit...

  • Page 5: Operating Specifications

    Operating Specifications Ambient Temperature: -10°C to +60°C Ambient Humidity: Transport/Storage -20°C to 60°C /10 – 90% Temperature/Humidity: Working Temperature: 0°C to 45°C AC100V to 230V to 12VDC, 2-part Rated Voltage: lead and adaptor Rated Frequency: 50Hz to 60Hz Rated Current: 3 to 5Amp Technical Specification Screen Size:...

  • Page 6: Mounting Dimensions

    I/O Ports: 2x USB, 1x RJ45, 1x SD, 1x HDMI Case Material: Plastic Colour: Black (Standard) Operating System: Android 8.1.0 Approvals and Listings: CE, FCC, FOHS Mounting Dimensions: Flush Mounting through panel door Hole Cut Out size: 225mm (W) x 160mm (H) Overall Screen Size: 262mm (W) x 198mm (H) Surface Mounting...

  • Page 7: Flush Mounting

    Flush Mounting When supplied in this format a high gloss plastic trim is glued to the screen using a 2-part high temperature epoxy adhesive. The trim has a hole in each corner and 4x (Black) 16mm bolts, washers and hex nuts are supplied in the box.

  • Page 8: Default Setup

    Default Set Up: The screen is supplied with a pre-installed VOREX app. The default settings of the screen are: Screen IP Address: 192.168.10.20 Gateway Address: 192.168.10.1 Subnet: 255.255.255.0 DNS 1: 8.8.8.8 DNS 2: 8.8.4.4 On power up, the screen will attempt to connect to the target device set in the Vorex app (default 192.168.10.11) If this target does not exist, the connection will fail, and the following error message will appear.
  • Page 9 Changing the Target IP Address The screen will then return to the Vorex app as above Press the “log out of all controllers” button • • Reset the target device IP address Select the HTTPS or HTTP radio button and then press Search •...

  • Page 10: Normal Start Up

    Normal Start Up After the initial setup if the screen is powered down at any time, the device remembers the last settings. When power is re-applied it will re-connect to the target device. After about 20secs a Vorex blue banner app will appear on the desktop along with the standard default Android apps.
  • Page 11 After removing the Vorex and MobiLoc apps , install the new one using a USB flash drive and follow the Apps installation instructions. Please note Vorex Screens will not provide support for 3 party Apps. Timer Auto On/Off and Multi-Function Clock The Android Home page has a MultiFunctionClock app with the icon left.
  • Page 12 To turn the Power on/Off function off, use the selector switch at the top left. Note: you cannot turn it off if there are times set. Select which days you want the function to work by ticking or unticking the respective days To add an On/Off time, select the Add Time at the bottom of the •...
  • Page 13 The delete button will appear to the right, press Delete and the • Off/Boot time will disappear Remember to set the screens time and date up correctly before you use this app otherwise you may find the screen powers down during normal working hours.
  • Page 14 The default password is 2323 This is a 3 party app and is not supported by Vorex Screens Ltd Be Aware: if you change this password and forgot what it was, we cannot help you Screen Saver/Sleep Mode Do not use this function.
  • Page 15 This page is deliberately left blank Version 1.1 23 May 2022 15 | P a g e...
  • Page 16 This page is deliberately left blank Version 1.1 23 May 2022 16 | P a g e...
  • Page 17 This page is deliberately left blank Version 1.1 23 May 2022 17 | P a g e...
  • Page 18 This page is deliberately left blank Version 1.1 23 May 2022 18 | P a g e...
  • Page 19 This page is deliberately left blank Version 1.1 23 May 2022 19 | P a g e...
  • Page 20 Vorex Screens Ltd Unit 18, Henley Gardens, Yateley Hampshire. GU46 6LG Tel: +44 (0) 1252 669317 Email: sales@vorexscreens.co.uk Web: www.vorexscreens.co.uk Version 1.1 23 May 2022 20 | P a g e...
