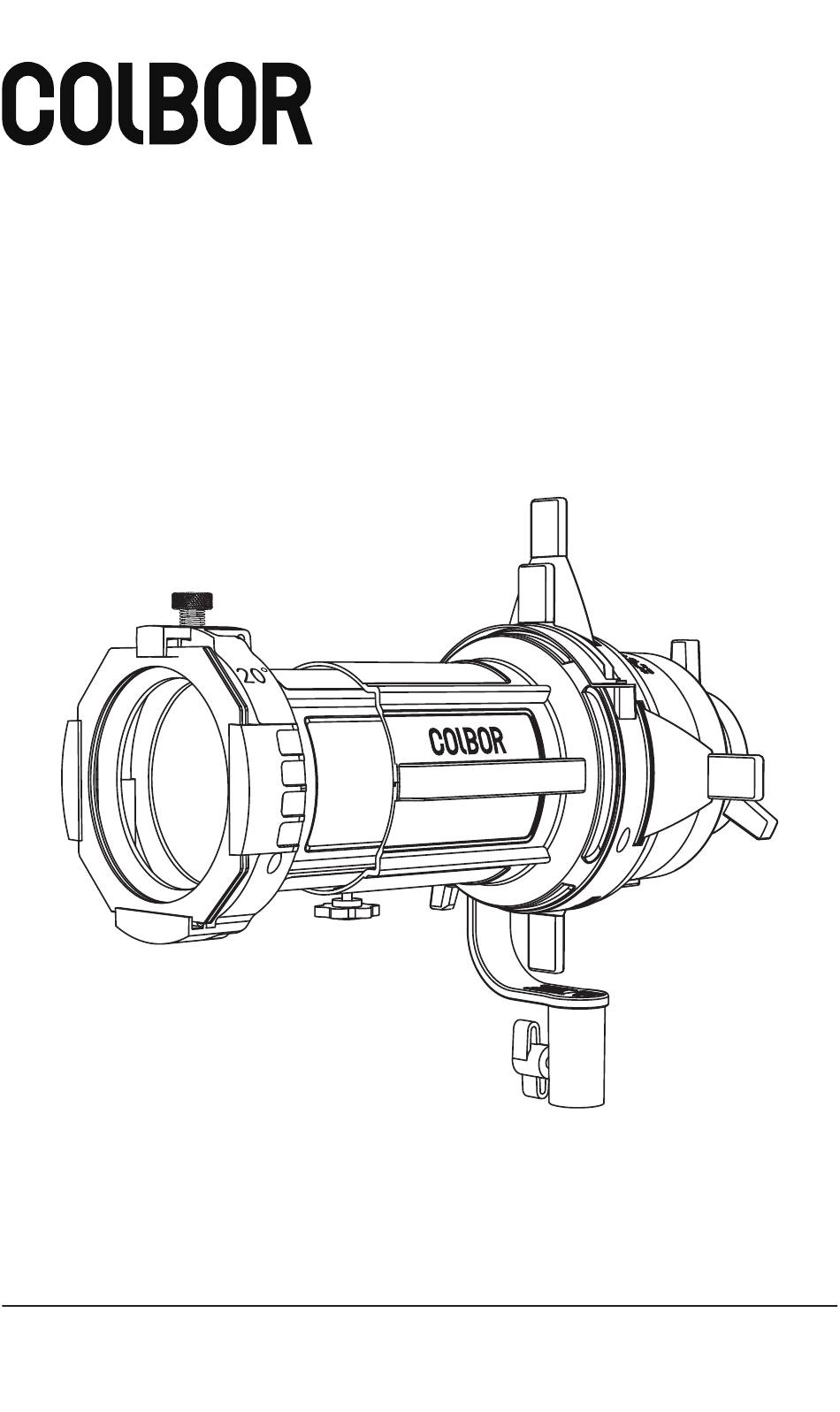

- Page 1 SL20-B Bowen Mount Spotlight User Manual Thank you for choosing COLBOR product. Please read this manual carefully before use and follow all instructions mentioned herein.
- Page 2 Failure to follow all the instructions may result in mechanical damage. Warranty does not apply to human errors. Operation Instructions Installation and Removal of SL20-B Spotlight 1. Check the glass and shutter blade for good condition. 2. Loosen the screws of the 7-shaped handle and adjust the bracket to be 90°...
- Page 3 3. Mount the spotlight on the stable light stand, secure it with weights, and tighten screws. 4. Pull all the shutter blades to outer edge. 5. Align the spolight with the groove around the lamp head and clip it in, turn the spolight in the direction of the arrow, and the installation will be completed after the top rod rebounds.
- Page 4 Attaching the Gobos 1. Mount the gobo on the gobo holder in place. 2. Insert the holder into the slot of the spotlight attachment, then slide the holder lock bar to lock the holder.
- Page 5 Attaching the Colored Gel Filter 1. Place the colored gel filter into the colored gel filter holder, then mount the holder on the frontside of the spotlight. Focus Adjustment 1. Loosen the locking focus knob on the bottom and push the lens forward to adjust the focus.
-
Page 6: Specifications
Specifications Product SL20-B Bowen Mount Spotlight Size Fold: 363*175*177mm Unfold: 353*234*269mm Weigh 2.11kg Compatibility CL60 Series (Expect for CL60R); CL100X Series Packing List SL Spotlight x1 20° Lens x1 GOBO Holder x1 Colored Gel GOBO x30 Warranty Card x1 Filter Holder x1... -
Page 7: Warranty
3.If the COLBOR product is out of the warranty coverage, the service and the parts cost will be charged. Guangzhou Zhiying Technology Co., Ltd Room 2401, 24 / F, South Tower, Lisheng Plaza, No.
