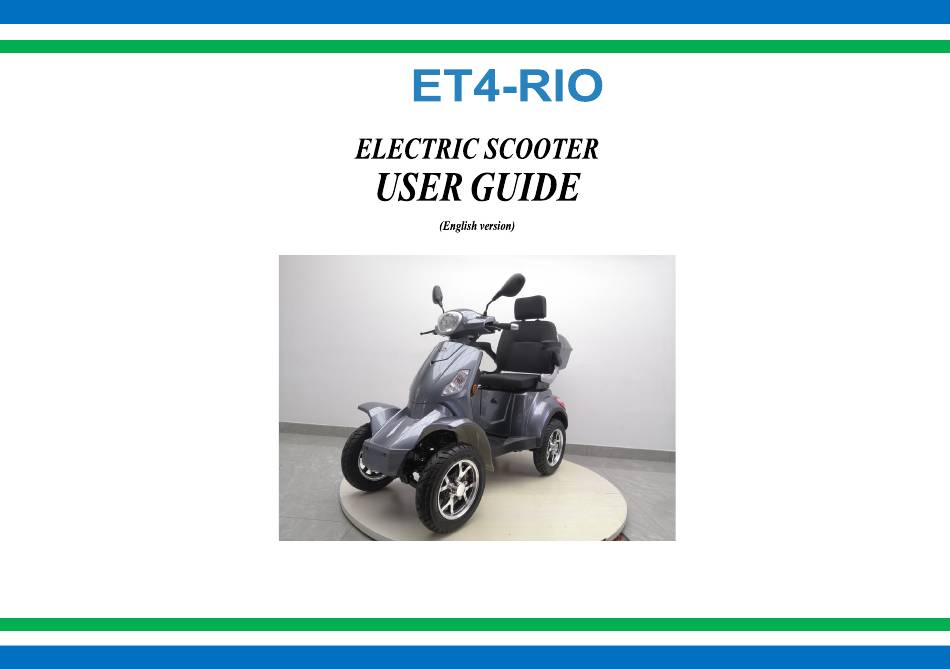

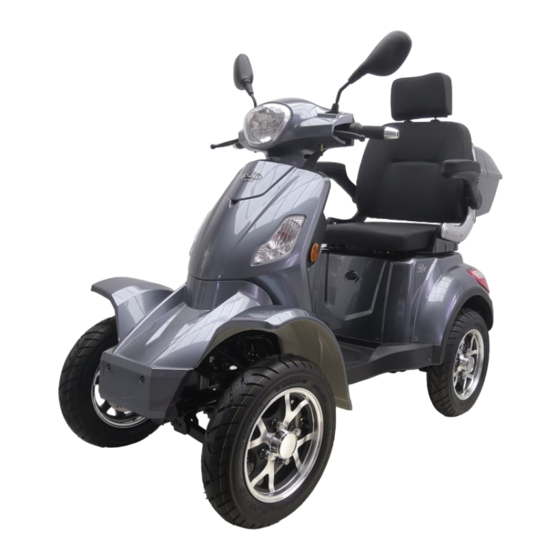

- Page 1 Read this manual in full before using your Scooter.
-
Page 2: Table Of Contents
Summary FOREWORD ···································································································· 3 SECURITY FOR THE WALKS ·············································································· 3 • Basic safety principles ····················································································· 3 • Reminders and suggestions of operation ································································ 5 • Riding in the rain ··························································································· 6 • Travel at night ······························································································ 6 • Other reminders ···························································································· 7 •... -
Page 3: Security For The Walks
SECURITY FOR THE WALKS As in any sport, There is the risk of injury and damage. Basic safety principles: do and Don'ts • Always perform a security check before a ride with you ET4-RIO . Familiarize yourself with the controls of your ET4-LIBERTY. - Page 4 Always wear well-fitted shoes at your feet and who will adhere well to the floor of the vehicle. • Wear bright, coloured clothing that is sufficiently adjusted not to be snagged by moving parts of the ET4-RIO or by objects along the road or trail.
-
Page 5: Reminders And Suggestions Of Operation
Never allow others to drive without having read and understood these instructions. Reminders and suggestions of operation • Read all the instructions carefully before driving the ET4-RIO. • Comply with any laws and regulations in your area regarding the operation of a motor vehicle. Comply with the same laws as for any other vehicle on the road, including giving way to pedestrians and stopping at traffic lights and stops. -
Page 6: Riding In The Rain
Follow the road code, and take the following precautions: Make sure your ET4-RIO is equipped with well-mounted and located reflectors. Make sure that no clothing or baggage... -
Page 7: Other Reminders
Other reminders The ET4-RIO operates in an optimum way on level terrain. Be vigilant in descent, such as a hill or ramp. The ribs and frequent acceleration/braking repetition deplete the battery more quickly. The ET4-RIO is equipped with an electrical switch system for the brakes. When one of the brakes is used, the throttle lever is non-functional. - Page 8 EMI warning (electromagnetic interference) The scooter may be subject to electromagnetic interference (EMI), these sources of interference may be emitted from radio stations, television stations, amateur radio sets (HAM), two-way radio and cell phones. Interference (from radio waves) may cause the brakes to release, start up or change direction unexpectedly. It can also damage the control system permanently.
-
Page 9: Specifications
SPECIFICATIONS COMPONENTS 60V 1000W DC bruseless MOTOR "10x 3" tires Tubeless Rear wheel drive with differential Forward / reverse selector button 60V 20A battery Lithium 2 years Front disk brake, rear drum brake ... -
Page 10: Assembly And Setup
ASSEMBLY AND SETUP If your ET-4 RIO was removed from its carton and "set up" by retail store personnel, there is no guarantee it was properly set up. Please observe and follow this checklist, even if your ET-4 was out of its carton when you purchased it. This will ensure its safe and reliable operation. -
Page 11: Normal Operation
2) Insert the key into the switch and turn OFF to ON. 3) The ET4-RIO is equipped with a voltmeter that indicates the level of charge to the battery. A drop in this level du- ring acceleration is normal. An excessive drop, on the other hand, indicates a weak or defective battery. If you re- quire a supply of an exhausted battery, it will be seriously damaged. -
Page 12: Care And Maintenance Of The Battery
For Magnetic Model just release the throttle grip to brake automa- tically. 5) Increase the acceleration and speed of the ET4-RIO by first activating the throttle gently. Try not to accelerate or brake without cause. - Page 13 In conclusion Always try to recharge the battery within 24 hours after use to maximize cycle life and prevent damage to the battery What is inside your battery ET4-RIO Consisting of batteries of 60V capacity, 20 AMP-hour. There are three points to remember, however, for battery maintenance...
- Page 14 When the air temperature is below 0 ° F, the battery capacity will decrease by more than a third. It is therefore natural that the ET4-RIO will not reach its normal mileage in winter or cold weather. When the ambient temperature reaches 68 °...
-
Page 15: Charge The Battery
Charge the battery well if you will not use it for a long time. Ideally, it should be charged every 30 days. Even a battery in good working order will slowly discharge. The battery charge of the ET4-RIO will gradually decrease over time even if the power is turned off. - Page 16 4) Connect the charger cord to the adapter bracket first. Then connect the adapter to the ET4-RIO (the charger access point is located at the rear of the body). Then connect the AC cables from the charger to the wall outlet.
-
Page 17: Front And Rear Breakes & Tires
Your ET4-RIO should be returned to your service dealer or your bicycle / scooter mechanic once per year for full verifi- cation and adjustment. This will ensure comfort, safety and operation life of the ET4-RIO . Front and rear brakes The adjustment of your front brake is the same as for a regular motorcycle. -
Page 18: Cleaning
Lubrication You should inspect and maintain your ET4-RIO and lubricate the mechanical transmission components. Brake cables may also need lubricant. Lubricate the brake cables with a silicone or graphite lubricant. Period of maintenance: one month. Lubricate fork tube, axle edge, and axle ball bearing with SH / T0386 lithium grease for bicycle, Service interval: one year. -
Page 19: Maintance Chart
Maintenance chart ET4-RIO should be checked from time to time. Refer to the maintenance schedule in the following table: Parts Days 30 days 180 days ● ● ♦ ● ■ Bolts, nuts, screws etc. - to make sure everything is tight ●... - Page 20 Problem Cause Solution Battery gauge does not signal anything a) Unfit contact near the starter switch 1) Check contacts, connect if necessary. when the vehicle is in operation or battery 2) Charge battery. b) Battery is completely discharged Battery meter displays a signal but vehicle a) Motor wire is disconnected or needs 1.
- Page 21 NOTE: If other problems occur, do not attempt to dismantle the vehicle yourself, but rather contact the retailer or call Customer Service. The ET4-RIO is covered by a one-year warranty. This warranty covers parts and, in some cases, labor for ma- nufacturer's defects. Breakage caused by delivery damage, accident or abuse is not covered by warranty.
- Page 22 Canada IMPACT I.S. DESIGN INC. Tél: 450-635-0002 Sans frais: 1-800-361-7085...
