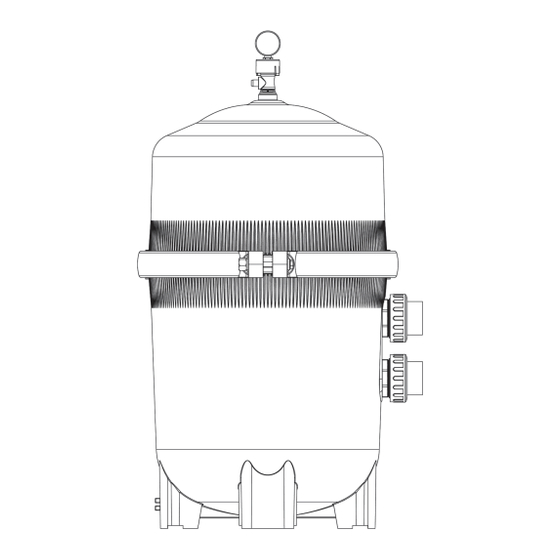

RSC Series -Cartridge Filter
TOP MANIFOLD CARTRIDGE FILTERS
EFFECTIVE FILTRATION RATE
MODEL
FT
425
C3425
525
C3525
MAXIMUM WORKING PRESSURE FOR ALL MODELS 50 PSI (3.45 BAR)
ATTENTION INSTALLER: THIS MANUAL CONTAINS IMPORTANT INFORMATION ON THE
OPERATION, AND SAFE USE OF THIS EQUIPMENT.
THIS MANUAL IS INTENDED FOR THE END USER OF THIS PRODUCT
Owner's Manual
2
M
2
39.5
48.8
DESIGN FLOWRATE
Residential
Commercial
GPM
LPM
150
568
150
568
Net.Weight
30
35
201605 Version
