Fienza Stella 455106 Installation Manual

S tella
T W I N S H O W E R
455106
Polished chrome finish
●
Top or bottom integrated water inlet and diverter option
●
WELS 3 Star rated, 8L/min
●
Rail:
Made from stainless steel
●
Rail thickness: 25mm
●
1.5 metre stainless steel flexible hose
●
Overhead Shower:
Slim 250 mm diameter
●
Made from stainless steel
●
Brass swivel joint
●
Multifunction Hand Piece:
Five water-flow settings
●
Made from ABS
●
IMPORTANT: Please read all of the instructions before installation. Check the product thoroughly for damage. Installation is acceptance
of goods supplied and will void warranty. This product is pre-assembled. Do not disassemble, as this may void the warranty.
Specifications
Please refer to fienza.com.au for the latest product specifications before installing.
Operating Pressure Min: 150 kPa / 1.5 bar
Max: 500 kPa / 5 bar
Optimum: 150 kPa / 1.5 bar - 500 kPa / 5 bar
Installation of pressure limiting valve recommended
if supply exceeds 500kPa
Operating Temperature Hot: Max 80°C
Cold: Min. 5°C
Inlet Connections 1/2" BSPP
Suitable Hot Water Units Storage tank and continuous flow only.
Not suitable for gravity feed.
WELS Rating 3 Star rated, 8L/min
General Information
This product must be installed by a qualified licensed plumber in accordance with AS/NZS 3500 and all applicable local regulations
●
and plumbing codes.
All pipe work must be thoroughly flushed prior to installation.
●
Do not remove the ceramic cartridge from the mixer when installing.
●
After installation all hoses and connections must be checked for leaks.
●
It is the responsibility of the installer to ensure a waterproof seal is achieved between the product and mounting surface.
●
F IEN ZA .COM. AU

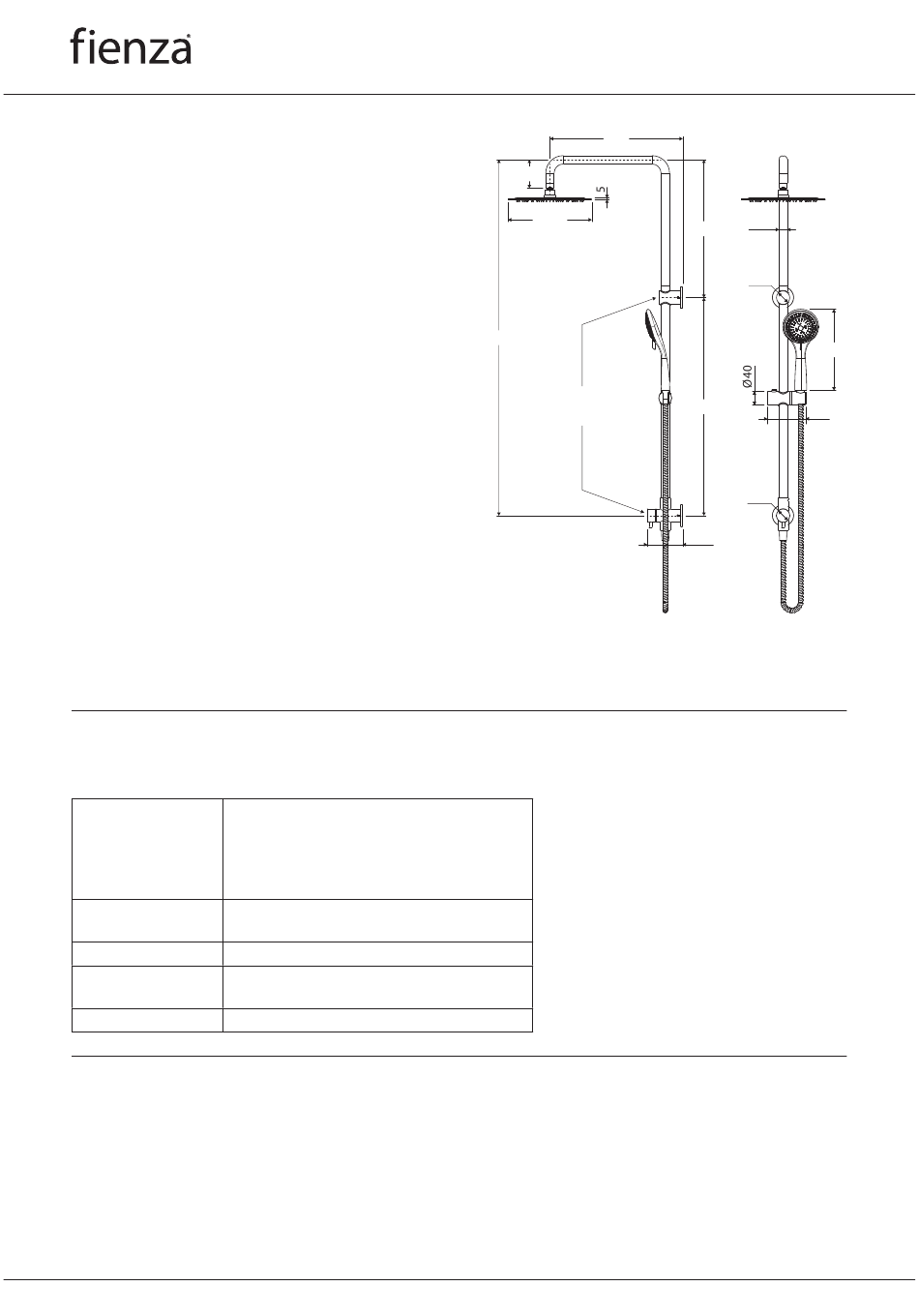

I N S TA L L AT I O N G U I D E
397
83
Ø250
1061
Top or bottom
water inlet option
Item Code: 455106 | Updated: 15/09/2022
