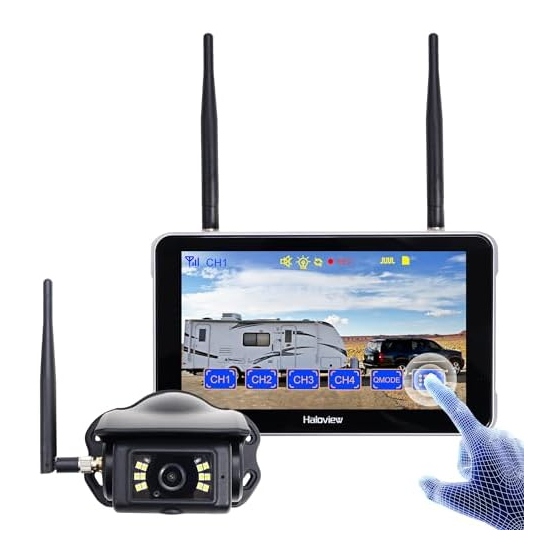

Haloview Byte Tango System User Manual

Haloview Byte Tango System User Manual

2.4g digital 1080p touch screen system

Advertisement

2.4G Digital 1080P Touch Screen System
User Manual
CH1
REC
CH1
CH2
CH3
CH4
QMODE
Byte Tango System
BT7 Touch / BT6 Touch
The antennas of BT6 is shorter than BT7, please refer to the actual product received.
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Byte Tango System and is the answer not in the manual?

Questions and answers

Summary of Contents for Haloview Byte Tango System

  • Page 1 2.4G Digital 1080P Touch Screen System User Manual QMODE Byte Tango System BT7 Touch / BT6 Touch The antennas of BT6 is shorter than BT7, please refer to the actual product received. V1.0...
  • Page 2: Table Of Contents

    8. Installation MENU VOLUME PAIRING PICTURE MIRROR QMODE SETTING SCAN PARK-LINE 9.10 RECORD 9.11 PLAY 9.12 TRIGGER...
  • Page 3 1. The device can be powered by DC 10-32V or USB Type-C 5V/2A. 2. Improper cable connections may damage the monitor. Remove the power cable connections when you do not intend to use the device.
  • Page 5 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6 3M Mount Bracket 7" or 5.5" Monitor Camera Power Adapter for Suction Cup Pairing Cable Furrion Pre-wired RV Mount Bracket Camera Type-C Cable Conversion Cable Cigarette Lighter The product is under continuous improvement and the specifications will change without notice. Picture for reference only. Please refer to the actual product and accessories. The antennas of BT6 is shorter than BT7, please refer to the actual product received.
  • Page 7 1. Upgraded touch screen for easy operation. 2. NORMAL, MIRROR, FLIP and MIR-FLIP viewing available. 3. Split mode auto-scan mode and single-display mode available. 4. Support 4-channel composite and single-channel recording in AVl signal format. 5. Auto dim function available. 6.
  • Page 8 PAIR button Power button Light Sensor USB Type-C Micro SD Card Slot Power Indicator Speaker It turns to red when the monitor is powered on.
  • Page 9 Installation of Suction Cup Mount: 1. Adjust monitor height by sliding monitor up or down in slot, then tighten knob. Adjust monitor angle by loosening lower knob on suction cup mount, tilting monitor to desired angle and re-tighten knob. 2. Installation of 3M Mount...
  • Page 10 This multi-purpose multi-angle adjustment display mount can be used like below...
  • Page 11 Camera Wiring Method 1: (Suggested) PLEASE MAKE SURE GREEN WIRES UNCONNECTED Green Green Green Camera Wiring Method 2: Green Green Notice: Touch Screen invalid when triggering function activated. If you use the camera for long-hour observation, please do not follow Camera Wiring Method 2. Connecting the camera plug and Green wires.
  • Page 13 (the antenna is not placed on the roof of the vehicle or there is obstruction around the antenna). In this case, it is recommended to purchase the Haloview 10M or 12M antenna extension cable and place it on the roof without any obstacles.
  • Page 14 If you get poor signal reception, or signal cannot reach at least 2 bars, please keep the antennas perpendicular and adjust the angle of antenna to find best signal reception position. Shortcut Menu Tap the screen when in single image mode, it pops-up the first group of shortcut MENU. You can easily switch to each of the four channels of cameras or go to Quad Mode.
  • Page 15 to turn on/off parking line in current channel of camera. When parking line is turned on, exit the shortcut menu to display the parking line. to turn on/off voice in current channel of camera. to adjust the screen brightness. to turn on/off current camera night light. When camera night light is turned on, the indicator will turns from to start recording or pause recording.
  • Page 16: Menu

    The audio icon is highlighted to indicate that audio is turned on for that channel. Notice: Please tap the audio icon instead of other areas. Otherwise the display will switch to the certain channel of camera. Press to go to Main Menu SCAN Press to exit.
  • Page 17: Volume

    VOLUME MUTE to get access to VOLUNE setting Tap the bar to adjust volume. Tap ON/OFF to MUTE or UNMUTE the volume. PAIRING Please Press Pair key on Camera or Transmitter Box Camera and monitor are paired at the channel of CAM4 as factory default setting. When you open the box, power on the monitor and camera, tap the monitor to find the first group of shortcut Menu and tap CH4, the image will be displayed.
  • Page 18: Picture

    Quick Access to Pairing Status: Press the PAIR button for 3 seconds to enter pairing status. PAIR button If you press the pair button by mistake and the monitor enters the pairing status, you can tap to exit the pairing status. Please Press Pair key on Camera or Transmitter Box PICTURE...
  • Page 19: Mirror

    MIRROR to get access to Main Menu. Tap to enter MIRROR setting. Tap Normal/Mirror/Mir-flip/Flip at your will. QMODE SPLIT-1/3 SPLIT-1/4 SPLIT-2/3 SPLIT-2/4 SPLIT-3/4 TRIPLE 1 TRIPLE 2 TRIPLE 3 TRIPLE 4 TRIPLE 5 TRIPLE 6 TRIPLE 7 TRIPLE 8 TRIPLE 9 QUAD 1 QUAD 2 QUAD 3...
  • Page 20: Scan

    to get access to Main Menu. Tap to enter. Tap ON/OFF to turn on/off Trigger. Tap NTSC/PAL to switch video format. Tap ON/OFF to turn on/off Autodim. When Autodim is turned on, monitor will automatically decrease brightness in low light. Tap the bar from 0 to 45 to set screen off...
  • Page 21: Park-Line

    PARK-LINE to get access to Main Menu. Tap to enter parking line setting. You can slide the screen to adjust the inclination and the width of the parking line. 9.10 RECORD REC. RECORD FORMAT COVER 2023/12/03 00:00:00 TIME to get access to Main Menu. Tap to enter RECORD setting.
  • Page 22: Play

    When COVER is turned on, overwrite function will be activated. Previously recorded video files will be overwritten when TF card memory is full. Note: When in QUAD or SPLIT display, the monitor will record all displayed channel of CAM at the same time. TIME Setting: REC.
  • Page 23: Trigger

    9.11 Trigger Function to get access to . The Trigger switch off by default. TRIGGER NTSC COLOR-SYS AUTODIM SCREEN OFF Tap ON to activate Trigger function. If trigger switch is turned on, the yellow icon will appear on display. To achieve trigger function, you also need to complete trigger wiring. In Triggering status, MENU operation invalid, and the screen prompts TRIGGER LOCK.
  • Page 24 For example, if you connect the camera to left turn signal light, the Touch screen camera will automatically displayed on the monitor every time the left invalid turn signal light turned on. Touch screen invalid during triggering. Once triggering released, touch screen be operational again.

This manual is also suitable for:

Bt7 touchBt6 touch
