Summary of Contents for ACEUP ENERGY AE170

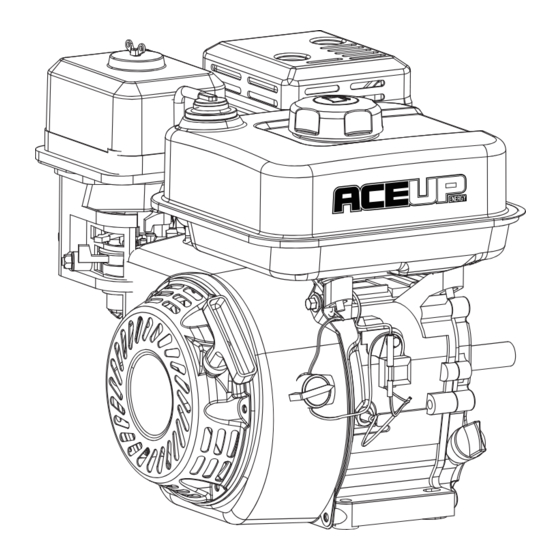

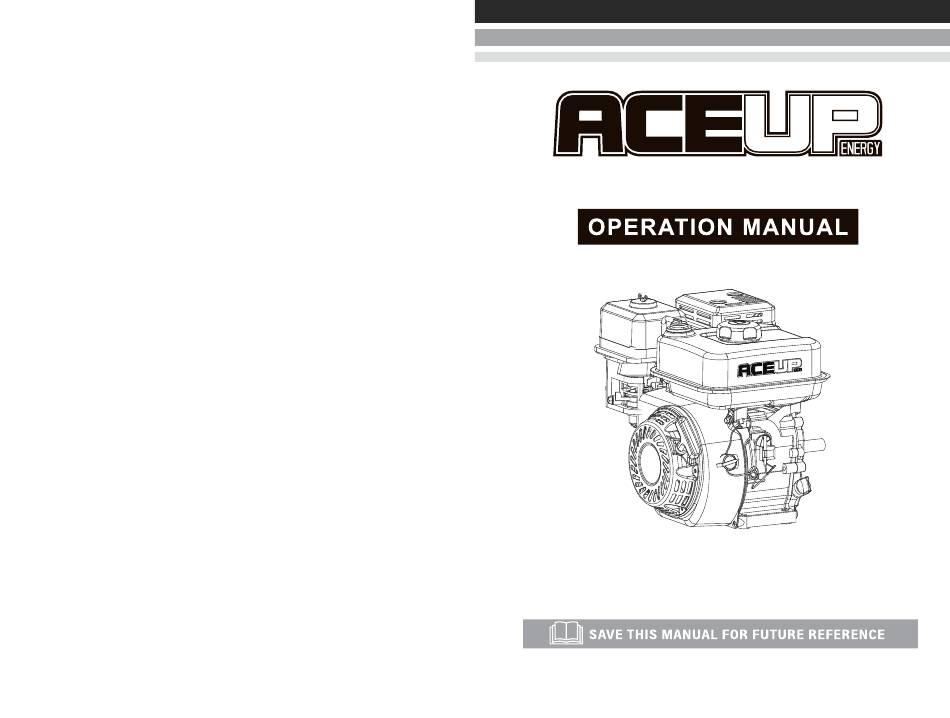

- Page 1 GASOLINE ENGINE Photos only for you reference Read the instructions carefully and make sure that you fully understand before operation.
- Page 2 C O N T E N T S PA R T 1 BRIEF INTRODUCTION Thank you for choosing our general purpose gasoline engine. PART 1 BRIEF INTRODUCTION * Single Cylinder, 4 stroke, Forced Air Cooled * OHV * TCI Ignition Method PART 2 PREPARATION BEFORE OPERATION * Splash Lubricated Proper use and regular maintenance of the engine will assure it not only...
- Page 3 PA R T 1 PA R T 2 6.User should be familiar with the structure and proper operation of the PREPARATION BEFORE OPERATION engine, carry on regular maintenance and shoot troubles immediately when discover. Please do not operate if the engine is abnormal or has 2.1 Check lube oil level: (Refer to Figure 2-1) troubles.
- Page 4 PA R T 2 PA R T 3 PA R T 2 PA R T 3 STARTING AND STOPING OF ENGINE 2.3 Check air cleaner:(Refer to Figure 2-3) STARTING AND STOPING OF ENGINE The air cleaner is dry type cleaner with two kinds of filter elements-paper 2.3 Check air cleaner:(Refer to Figure 2-3) 3.1 Start the engine and foam.
- Page 5 PA R T 3 PA R T 3 3.1.3.Move the throttle lever away from the MIN.position,about 1/3 of the way NOTICE toward the MAX.position Do not allow the starter grip to snap back against the engine .Return it gently to prevent damage to the starter. ELECTRIC STARTER(applicable types): Turn the key to the START position, and hold it there until the engine starts.
- Page 6 PA R T 3 PA R T 4 3.2.3.Turn the engine switch to the OFF 3.2.3.Turn the fuel valve lever to MAINTENANCE position. the OFF position. 4.1 Routine Maintenance EXCEPT ELECTRIC ELECTRIC STARTER TYPES STARTER TYPES * Check the filter element of the air cleaner. Remove the dirt and dust to keep it clean.
- Page 7 PA R T 4 PA R T 5 4.5 Clean the fuel tank and filter strainer after every 100 hours running. TROUBLESHOOTING Open the fuel tank cap,take out the fillter strainer and clean it with brush. Take off the fuel tank clean internal surface, remove dirt and water attached.
- Page 8 PA R T 5 PA R T 5 5.3 Stop suddenly when running 5.2 Engine can not run smoothly Symptom Cause Analysis Troubleshooting Symptom Cause Analysis Troubleshooting Piston,cylinder or piston ring Replace the worn parts Fuel is used up Refill fuel is worn excessively Carburetor is clogged Check fuel line and dredge...
- Page 9 PA R T 5 PA R T 5 5.4 Engine is excessively hot 5.5 Abnormal noise occurs when engine is running Symptom Cause Analysis Troubleshooting Symptom Cause Analysis Troubleshooting Adjust ignition advance angle properly Improper ignition time Piston or piston ring or cylinder is worn Replace the worn parts Insufficient fuel supply Refill sufficient engine oil...
- Page 10 PA R T 6 PA R T 6 6.2.7 Turn loose bolts in diagonals first, then drive them out. Remove the cylinger head and cylinder gasket. DISMANTLEMENT AND ASSEMBLY 6.2.8 Dismantle the starter. 6.2.9 Dismantle the fly wheel. 6.1 Dismantling precautions: 6.2.10 Dismantle the magneto motor.
- Page 11 6.4.14 Install the spark plug. 6.4.15 Check connecting joints for reliability and operating for smoothly; Electrical hazard Check speed-adjusting parts for good conditions. 6.4.16 Start the engine and observe its running. Model AE170 AE170B AE170C AE188 AE190 AE192 Engine type...
