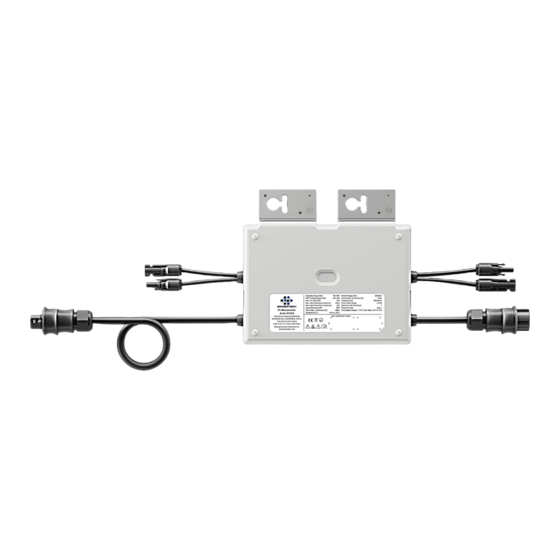

Summary of Contents for Evertech EVT800
- Page 1 User Manual Envertech Corporation Ltd. Tel: +86 21 6858 0086 EVT800-P Web: www.envertec.com Email: info@envertec.com Add: No.138, Xinjunhuan road, Minhang District, Shanghai, China USM-P-2023-V01...
-
Page 2: Table Of Contents
Content Important Safety Information ....... 1 Read it First ............... 1 Safety Instructions ............ 1 Envertech Microinverter System ......1 How it Works ............2 Monitoring Device EnverBridge ........ 2 Optimal Reliability............. 3 Simple Design ............3 Product Information ..........3 Overview .............. -
Page 3: Important Safety Information
The three key elements of an Envertech microinverter system include: EVT800 microinverter: Converting the DC of the PV module into AC Be aware that only qualified personnel should install or replace the Envertech microinverters and the cables and accessories. -
Page 4: How It Works
EnverBridge (Optional): Monitoring and protecting PV system. You can view the real-time data from a web browser or Envertech app. This integrated solar system maximizes energy harvest, increases system reliability. Simplifies design, installation and management. EnverPortal: http://www.envertecportal.com 2.1 How it Works The Envertech microinverter maximizes energy production from your photovoltaic (PV) array. -
Page 5: Optimal Reliability
Current monitoring in grounding DC current monitoring. module. Low voltage DC wires connect from the PV module directly to the co- EVT800 can be adapted to almost all modules. Before installation, please check located microinverter, eliminating the risk of personnel exposure to dangerously the parameters of the microinverters and modules to ensure that they are high DC voltage. -
Page 6: Datasheet
3.3 Datasheet Features Model EVT800 PLCC (Power Line Carrier Communication Communication) Input Data（DC） VDE-AR-N 4105, Recommended Input Power Range (STC) (180W～550W+)*2 IEC/EN61000,IEC/EN62109- 1/2,EN50549-1/2019,TOR Max. DC input (V) Compliance 2019,C10/11:2019,CEI 0-21, UTE Isc PV (Absolute Max.) (A) 25 A C15-712-1:2013,VFR 2019 ( See... -
Page 7: Product Description
4.2 Product Description 4.4 Symbols on Inverter Symbol Description Dangerous electrical voltage This device is directly connected to public grid, thus all work related to the inverter shall only be carried out by qualified person NOTICE, danger! This device directly connected with electricity generators and public grid Danger of hot surface The components inside the inverter will release a log of heat... -
Page 8: Accessories
Mount all microinverters under modules to avoid rain and sun, with the trademark facing downward. Only qualified personnel may connect the Envertech Note: Please make sure that there are less than 6 units of EVT800 in each microinverter to the utility grid after receiving prior approval from the electrical utility company. - Page 9 Protective Class: Class I PV Microinverter Power (Max. Continuous) (W): 800W Overvoltage Category: OVC III (AC Main), OVC II ( PV) Model: EVT800 Temperature( ℃ ): -40 ℃ to +65 ℃ User Identification Number Zhejiang Envertech Corporation Ltd. www.envertec.com Step 6.
-
Page 10: Debugging And Operating
Switch on the PV system Ensure all connection is completed and then turn on the air switch. 4. The voltage and frequency of EVT800 can be adjusted on the site. If For the monitoring system (EnverBridge) installation please scan this QR... -
Page 11: Troubleshoot An Inoperable Microinverter
power is applied. If the LED blinks red after DC power is on, it indicates a failure 1. Make sure AC breakers are on. during the start-up. 2. Check the connection to the utility grid and verify that the grid voltage is within Post-Startup LED Indications: allowable ranges shown in the Technical Data section. -
Page 12: Disconnect Microinverters From Pv Modules
Normal Voltage?(Vac): Current (Max. Continuous) (A): Frequency? (Hz): Power Factor Range: Maximum Units Per Branch: 220/230V 50Hz/60Hz 3.27A +/-0.90 Model: EVT800 PV Microinverter Temperature(℃ Power (Max. Continuous) (W): Ingress Protection (IP): User Identification Number -40℃ to +65℃ 720W IP67 Overvoltage Category:... -
Page 13: Recycling And Disposal
9. Recycling and Disposal WARNING: Do not attempt to repair the Envertech microinverter. It contains no user-serviceable parts. If the microinverter fails, contact your direct supplier or Envertech customer service to obtain an RMA (return merchandise authorization) number and start the replacement process. In order to comply with the regulations on recycling management of electrical and electronic wastes in various countries, electrical equipment’s that have reached its lifetime must be collected separately to the unit or individual that...
