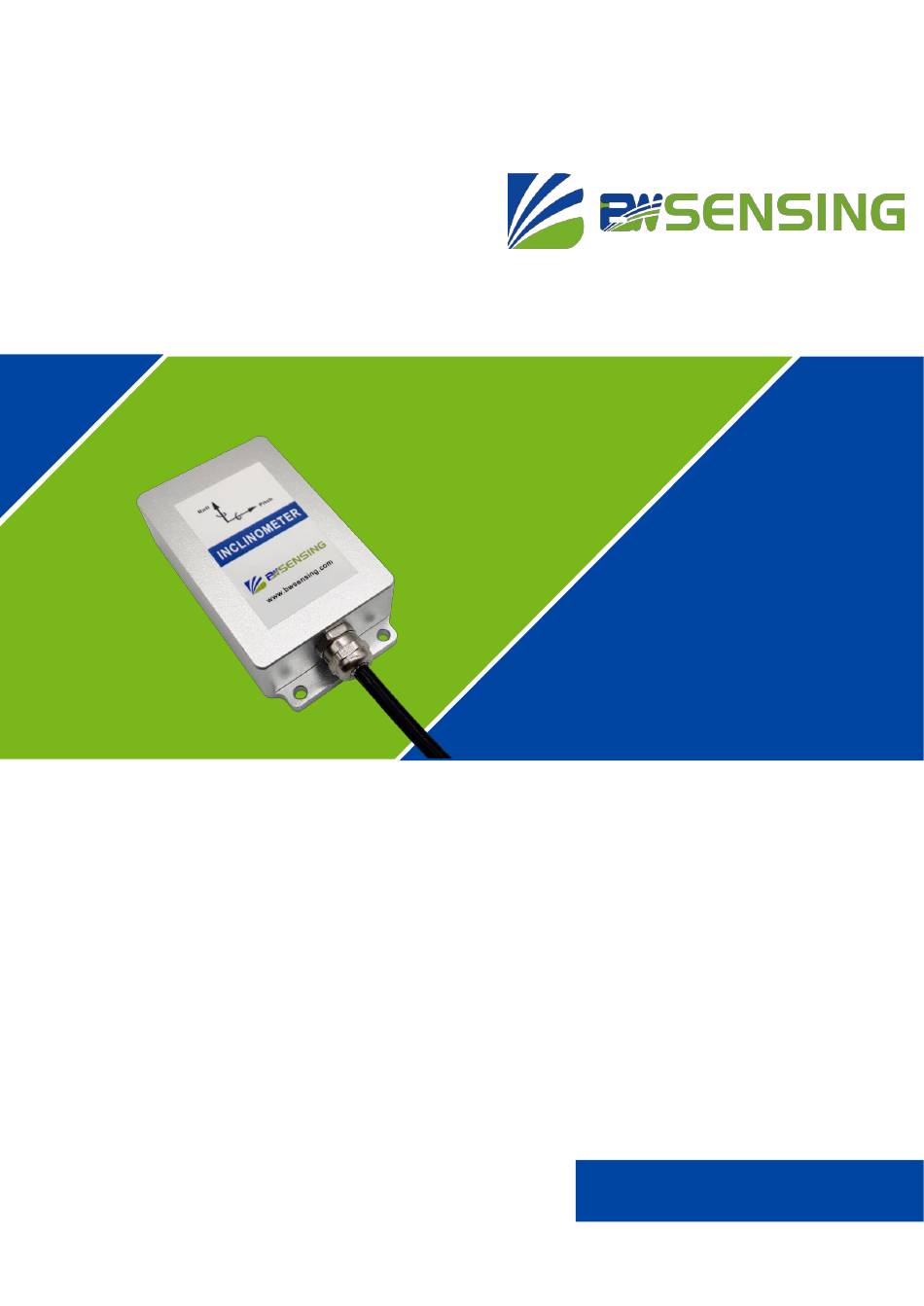

- Page 1 BW-VG520 Series High precision Voltage Dynamic Inclinometer Technical Manual V3.0...
- Page 2 BW-VG520 High precision Voltage Dynamic Inclinometer Introduction VG520 dynamic Inclinometer is a High precision inclinometer that measures the attitude parameters (roll and pitch) of the motion carrier. The attitude deviation is estimated by a 6-state Kalman filter with appropriate gain and is suitable for tilt measurement in motion or vibration.
- Page 3 BW-VG520 High precision Voltage Dynamic Inclinometer Feature Electrical indicators Parameters Condition Minimum Typical value Maximum Voltage (V) Working current(mA) No load Output load (kΩ) Resistive Output load (nF) Capacitive Operating temperature Storage temperature(℃) Performance Index Dynamic accuracy 0.1° Static accuracy 0.01°...
- Page 4 BW-VG520 High precision Voltage Dynamic Inclinometer Mechanical properties Metallic cable gland（Cable 1.5m) Connector Protection level IP67 Shell material Magnesium aluminum alloy oxidation Installation Three M4 screws Package product size Product Size：L103.8*W55.4*H26（mm） Bare board product size Product Size：L69*W49*H12（mm） The length and width may have an error of ±1mm, please refer to the actual product Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620...
-
Page 5: Installation
BW-VG520 High precision Voltage Dynamic Inclinometer Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible. There should be no included angles as shown in Figure A and Figure C. -
Page 6: Electrical Interface
BW-VG520 High precision Voltage Dynamic Inclinometer Electrical Interface Wiring definition BLUE BLACK GREEN YELLOW Line Color Function Receive RXD Send TXD 12-36VDC Wiring definition Wire BLACK GREEN YELLOW BROWN ORANGE Color function Power Receive Send TXD X axis Y axis voltage 12-36VDC negative voltage... -
Page 7: Order Information
BW-VG520 High precision Voltage Dynamic Inclinometer Order Information Model Communication mode Package situation Metallic cable BW-VG520-05 0-5V/RS232 IP67/ gland Metallic cable BW-VG520-010 0-10V/RS232 IP67/ gland Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064-21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ●... - Page 8 BW-VG520 Series High precision Voltage Dynamic Inclinometer Wuxi Bewis Sensing Technology LLC Add： Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
