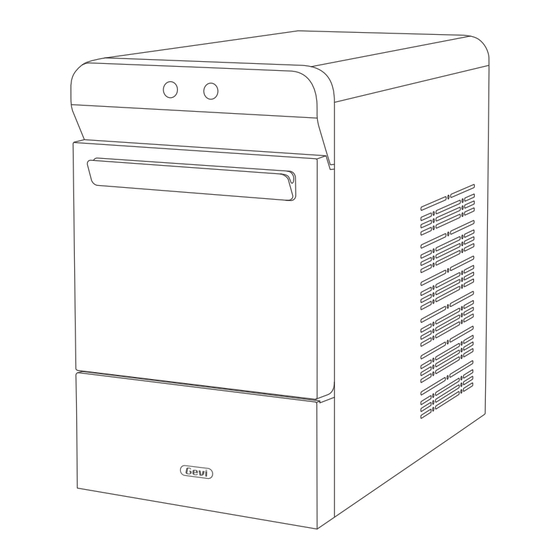

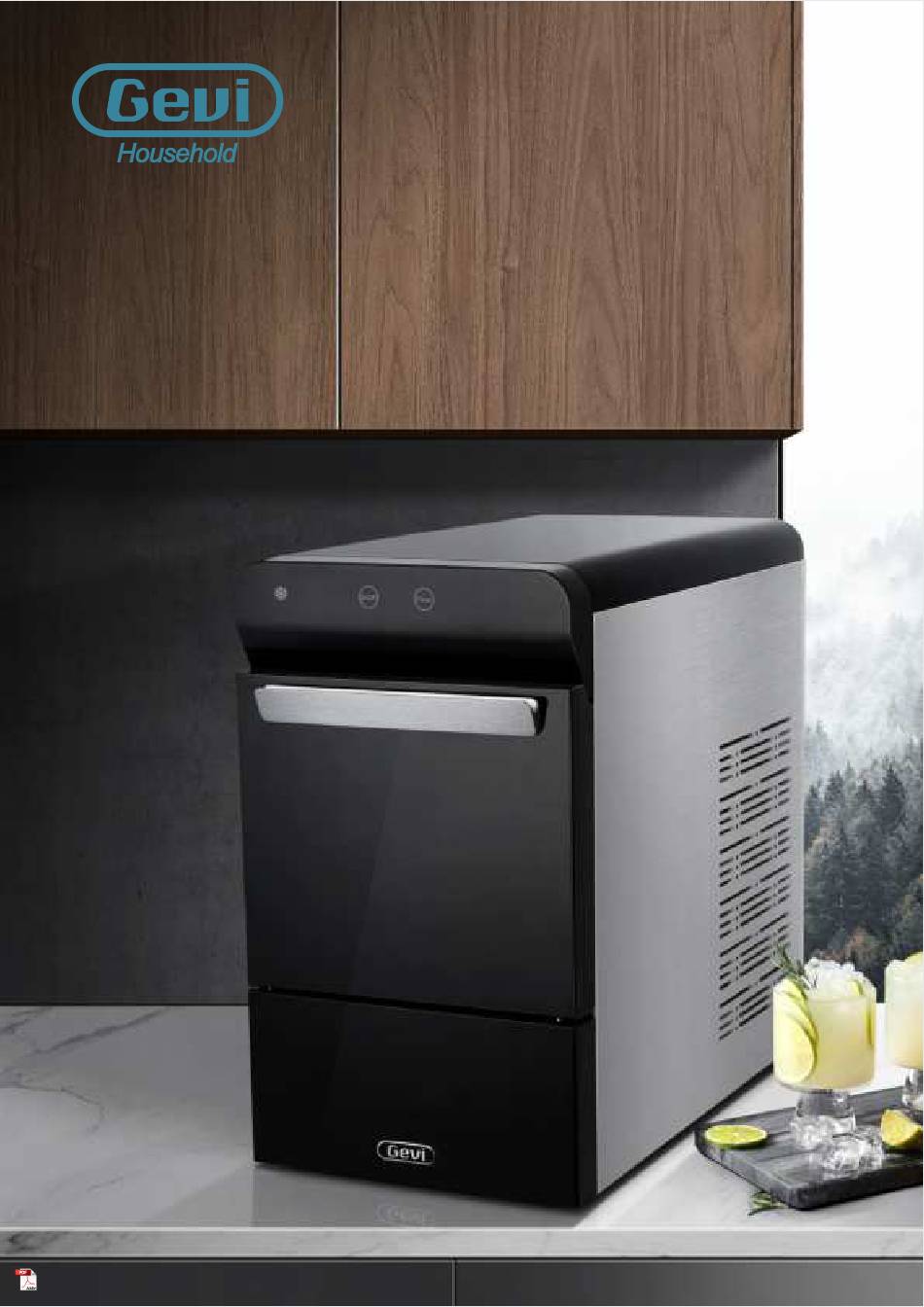

- Page 1 USER MANUAL NUGGET ICE MAKER GIMN-1000B Household Use Only...
- Page 2 We are proud of the innovation and quality that put into every Gevi product and we hope you will too. To ensure proper use of this appliance and make it last longer, please read this manual thoroughly before using and save it for future reference.
-
Page 3: Table Of Contents
Table Of Contents IMPORTANT SAFETY INSTRUCTIONS............GET YOUR ICE MAKER READY..............Unpacking...................... Know Your Ice Maker..................Before First Use..................... HOW TO USE..................... Operation Guide.................... Ice Making...................... Cleaning......................Descaling...................... TROUBLE SHOOTING................TECHNICAL PARAMETERS..............CUSTOMER SUPPORT................WARRANTY.................... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING Nugget Ice Maker To reduce the risk of fire, explosion, electric shock, or injury when using your ice maker, follow these important safety instructions: Before using, check if the power source corresponds to 120V, 60Hz. ·... - Page 5 IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING Nugget Ice Maker Outdoor Use Notice Keep Cool: Operation in ambient temperature beyond the limits listed in this manual (Refer · to page 5) may result in severe damage which is not covered by warranty. Keep Upright: Place on level surface only, skewed placement may damage the refrigeration system.
-
Page 6: Get Your Ice Maker Ready
· Do not use sharp tools, alcohol, flammable fluids or rough cleaners to remove tape or glue. These items can cause damage to the surface of your ice maker. Know Your Ice Maker Gevi Ice Maker Ice Basket Ice Scoop... - Page 7 GET YOUR ICE MAKER READY Nugget Ice Maker Know Your Ice Maker Control Panel Drain Hoses Front Lid Exhaust Fan Water Inlet Air Vent II Air Vent Power Cord Water Reservoir Max Water Line Water Screen Magnetic Switch Ice Full Infrared Sensor Top Water Reservoir UV Light...
- Page 8 FAQs 1.Water Residue Found Every Gevi Ice Maker goes through a running test before leaving the plant, so it’s normal to find water residue in water reservoir or drain hoses. Run self-cleaning program twice with fresh water before first use.
-
Page 9: Before First Use
Nugget Ice Maker Before First Use 1.Unpack and check if all the items (Refer to page 2) are available. Please contact Gevi Customer Service if anything is missing. 2.Ensure the ice maker stands upright on the level surface. After the jolt of transport, keep the ice maker still for 2 hours before plugging in. -
Page 10: How To Use
HOW TO USE Nugget Ice Maker Operation Guide 1.Add Water Pour potable water with a temperature between 46°F (8°C) and 82°F (28°C) into the water reservoir. Do not exceed the “Max” water line. Figure 1 2.Drain Water Take the drain hoses off and put them in a sink or a bucket. Make sure that the end of the ·... - Page 11 HOW TO USE Nugget Ice Maker 3.Heat Dissipation The ice maker generates some heat while it is working, so a 6-inch clearance on all sides should be kept for proper ventilation. Remember to keep the environment dry and stay away from heat sources such as ovens, heaters and corrosive gases.
-
Page 12: Ice Making
HOW TO USE Nugget Ice Maker Ice Making 1.Ensure the drain hoses at the back of the ice maker have been sealed and hung up on the machine. 2.Plug into a 120V/60Hz wall outlet. Check if the indicator flashes. Figure 6 3.Open the lid, add potable water into water reservoir, then close the lid. -
Page 13: Cleaning
HOW TO USE Nugget Ice Maker Cleaning 1.Remove all the ice. 2.Drain the ice maker through the drain hoses. Remember to place the hoses into a sink or a bucket before removing the drain cap. 3.Pour cleaning solution into water reservoir and add water to the max water line. -
Page 14: Descaling
HOW TO USE Nugget Ice Maker Descaling 1.Remove all the ice. 2.Drain the ice maker through the drain hoses. Remember to place the hoses into a sink or a bucket before removing the drain cap. Figure 12 3.Pour descaling solution into water reservoir and add water to the max water line. -
Page 15: Trouble Shooting
Water screen in the water Clean water screen reservoir is blocked "Add Water" Pump malfunction Contact Gevi Customer Service for help Empty the ice basket Ice basket is full Ambient temperature exceeds Change the environment to meet the limited working temperature requirements on page 5. - Page 16 Operate in an environment between too high 50°F (10°C) and 90°F (32°C) The ice-making system is Contact Gevi customer service for help Malfunctioning Turn off the machine for 45 to 60 Ice-making components are frozen minutes for ice to melt. Then follow the steps of “Descaling”...
-
Page 17: Technical Parameters
CUSTOMER SUPPORT Gevi Official Website Have a question or need assistance with your appliances? Visit Gevi Official Website any time any where. You can also get more information about Gevi via www.gevi.com Gevi Official Hotline Wish to speak with someone? Call 855-9922-888 during normal business hours. -
Page 18: Warranty
WARRANTY Nugget Ice Maker www.gevi.com Warranty service is provided by Gevi Customer Service Center. To contact customer service team, visit our website at www.gevi.com, email at service@gevi.com or call Gevi at 855-9922-888. Gevi Will Replace Period Whole unit if the ice maker fails... - Page 19 NOTE Nugget Ice Maker...
- Page 20 NOTE Nugget Ice Maker...
- Page 21 NOTE Nugget Ice Maker...
- Page 22 Tel: 855-9922-888 Email: service@gevi.com Website: www.gevi.com...
