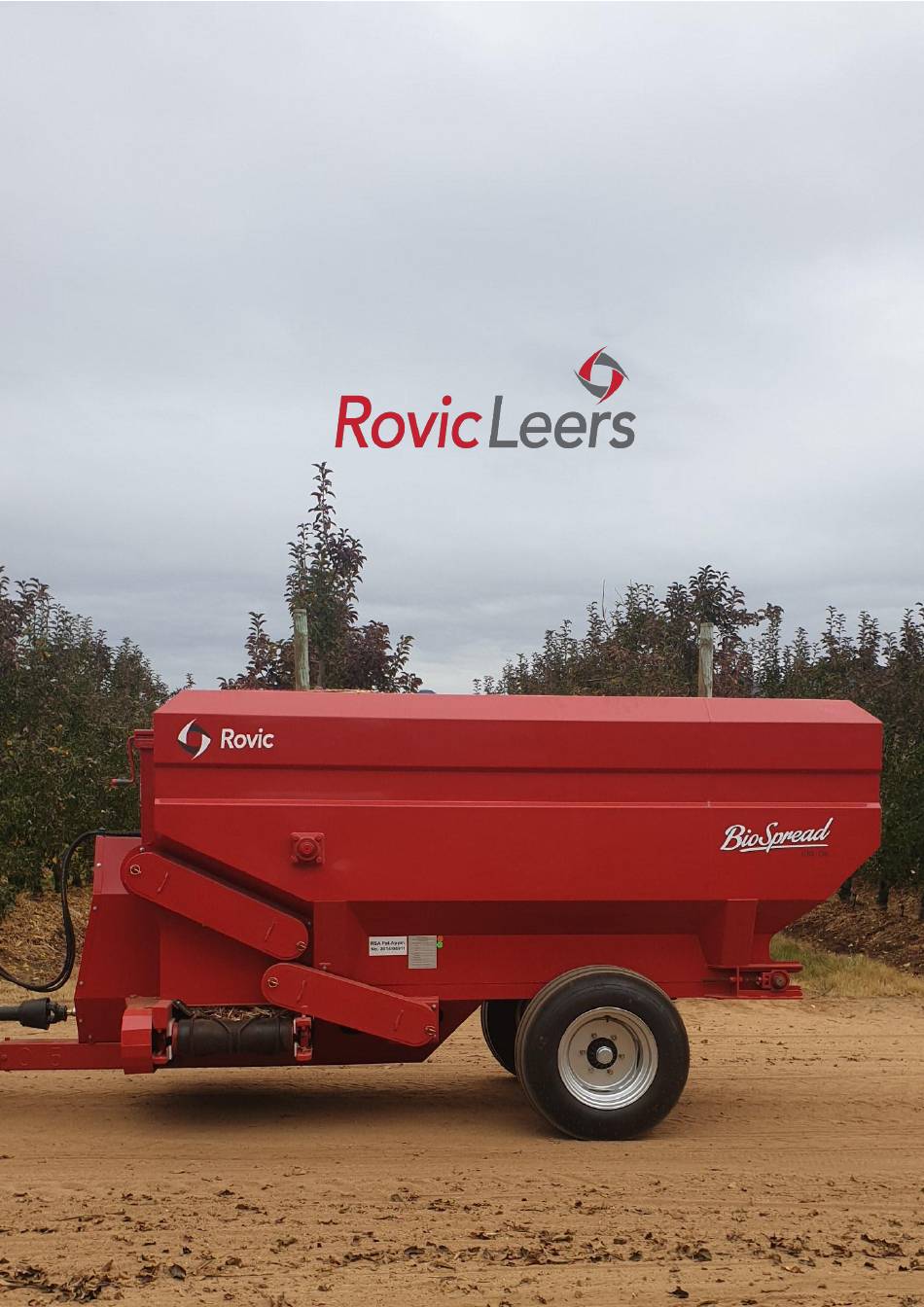

- Page 1 Rovic BioSpread Operators & Parts Manual 2019 Page 1 of 21...
- Page 2 OPERATORS MANUAL TABLE OF CONTENTS PRE-ATTACHMENT CHECK ......................3 ATTACHMENT PROCEDURE ......................3 POST-ATTACHMENT PROCEDURE ....................3 OPERATING PROCEDURE......................4 MAINTENANCE PROCEDURE ....................... 4 Page 2 of 21...
- Page 3 To ensure that your mulch spreaders operates at maximum level and provides you with a maximum life span, you should adhere to the following steps: PRE-ATTACHMENT CHECK TRACTOR a. Check alignment of tractor PTO shaft – the shaft should not be bend or at an angle. Make sure the tractor’s PTO shaft is greased;...
- Page 4 OPERATING PROCEDURE Following the next steps during the operating procedure will ensure that you get the most out of your mulch spreader. This will also ensure that mulch, compost or manure is spread evenly in your orchard or vineyard. Ensure the correct PTE gear is worn before operating the spreader 4.1.1 Protective glasses 4.1.2...
- Page 5 5.2.2 Ensure all bolts and nuts are tightly fastened; 5.2.3 Ensure wheel nuts on all wheels is tightly fastened at 140 Nm; 5.2.4 Check that U-bolts are tightly fastened WEEKLY MAINTENANCE 5.3.1 Check in-feed chain tension with a pry-bar to ensure it doesn’t have more than 25 mm play;...
- Page 6 PARTS MANUAL Wine & Table Grapes TABLE OF CONTENTS DRIVE KIT PARTS ……………………………………………………………………………………………………. HYDRAULIC KIT ……………………………………………………………………………………………………… SUSPENSION ………………………………………………………………………………………………….. MISCELLANEOUS .………………………………………………………………………………………. SUNDRIES …………………………………………………………………………………………………… Page 6 of 21...
- Page 7 1. DRIVE KIT PARTS PART NAME SIZE PART # REAR TENSIONER BEARING 50 mm ST50 FRONT TENSIONER BEARING 50 mm SF50 PTO PILLOW BLOCK BEARING 50 mm NP50 DISCHARGE PULLEY SPB4 x 355 PU355X4SPB DISCHARGE PULLEY TAPER LOCK BUSH 3535 x 60 TLB3535X60 PTO PULLEY 132 x 4SPB Bush 2012...
- Page 8 PTO SHAFT 50 x 275 EJ_35 PTO ADAPTOR B0165 2. HYDRAULIC KIT PART NAME SIZE PART # PARKER MOTOR 475cc P-TG475-MOT-20 SPEED CONTROL VALVE Roquit FL-1VCR03R3T HYDRAULIC HOSE KIT Spreader HYD_KITV/SPREAD IT CLAMPS DOUBLE 22 mm BH_4 3. SUSPENSION PART NAME SIZE PART # AXLE...
- Page 9 4. MISCELLANEOUS PART NAME SIZE PART # DATA PLATE Spreader DATAPLATESTROOI LINCH PINS 5. SUNDRIES PART NAME SIZE PART # BULLET HINGES 16 mm BUL03 CHAIN 3 mm 87548 POP RIVET 4.8 x 12 POP4812 SLEDGES 925 mm SLATCHES_925MM __________________________________________________________________________________ Page 9 of 21...
- Page 10 Pome & Stone Fruit TABLE OF CONTENTS DRIVE KIT PARTS ………………………………………………………………………………………… HYDRAULIC KIT …………………………………………………………………………………………. SUSPENSION ………………………………………………………………………………………… MISCELLANEOUS …………………………………………………………………………………………. SUNDRIES …………………………………………………………………………………………. Page 10 of 21...
- Page 11 1. DRIVE KIT PARTS PART NAME SIZE PART # REAR TENSIONER BEARING 50 mm ST50 CONVEYOR TENSIONER BEARING 40 mm ST40 SQUARE FLANGE 50 mm SF50 SQUARE FLANGE 40 mm SF40 PTO PILLOW BLOCK BEARING 50 mm NP50 CONVEYOR PILLOW BLOCK UNIT 40 mm NP40 GEARBOX PULLEY...
- Page 12 HUB GEAR BOX Comer T-Box EJ_11 PTO YOKE QUICK-RELEASE 1 3/8” 6-Spline AFT2.05.07 U-JOINT AGRICULTURAL 23.82 x 61 O/C AFT2.41A PTO CLAMP YOKE METRIC BORE SHAFT 30 mm AFT2.05.30 50.8 X 580 O-BEARING SHAFT ROLLER KIT 12 x 660 CHIP_ROL_580MM PTO SHAFT 1m Complete AFTB410SZ...
- Page 13 FRONT DRIVE SHAFT 50 x 1405 EJ_27 REAR DRIVE SHAFT 50 x 1260 EJ_28 GEARBOX SHAFT 50 x 635 EJ_29 GEARBOX SHAFT 50 x 440 EJ_30 PTO SHAFT 50 x 450 EJ_31 TENSIONER SHAFT ASSEMBLY Complete EJ_32 TENSIONER BUSH ASSEMBLY 65 x 60 TENTIONER_BOT WH78 SPROCKET...
- Page 14 3. SUSPENSION PART NAME SIZE PART # AXLE SQ 60 x 1500 – 4 Tonne BUR_AF60A.1500.05 RIMS 18“ BUR_W1811.0-05L TYRES 12.0-18 204320 BURQUIP TOWING EYE 35 mm BUR_CO1132 U-BOLT SQ 60 BUR_SU60S U-BOLT BUSHES 70 mm EJ_6 LANDING LEG J0008 4.
- Page 15 BULLET HINGES 10 mm BUL2926 BULLET HINGES 12 mm BUL02 SLATCHES 925 mm SLATCHES_925MM __________________________________________________________________________________ Page 15 of 21...
-
Page 16: Table Of Contents
Citrus TABLE OF CONTENTS DRIVE KIT PARTS …………………………………………………………………………………………………………….. -17- HYDRAULIC KIT ……………………………………………………………………………………………………………. -19- SUSPENSION …………………………………………………………………………………………………………….. -20- MISCELLANEOUS ……………………………………………………………………………………………….. -20- SUNDRIES …………………………………………………………………………………………………………… -20- Page 16 of 21... -
Page 17: Drive Kit Parts
DRIVE KIT PARTS PART NAME SIZE PART # REAR TENSIONER BEARING 50 mm ST50 CONVEYOR TENSIONER BEARING 40 mm ST40 SQUARE FLANGE 50 mm SF50 SQUARE FLANGE 40 mm SF40 PTO PILLOW BLOCK BEARING 50 mm NP50 CONVEYOR PILLOW BLOCK UNIT 40 mm NP40 GEARBOX PULLEY... - Page 18 HUB GEAR BOX Comer T-Box EJ_11 PTO YOKE QUICK-RELEASE 1 3/8” 6-Spline AFT2.05.07 U-JOINT AGRICULTURAL 23.82 x 61 O/C AFT2.41A PTO CLAMP YOKE METRIC BORE SHAFT 30 mm AFT2.05.30 O/BEARING SHAFT ROLLER KIT (50.8X580) 12 x 660 CHIP_ROL_580MM PTO SHAFT 1m Complete AFTB410SZ DEEP GROOVE BALL BEARING...
-
Page 19: Hydraulic Kit
SPINNER SHAFT 40 x 830 EJ_24 DRIVE SHAFT 40 x 880 EJ_25 FLOAT SHAFT 40 x 745 EJ_26 FRONT DRIVE SHAFT 50 x 1405 EJ_27 REAR DRIVE SHAFT 50 x 1260 EJ_28 GEARBOX SHAFT 50 x 635 EJ_29 GEARBOX SHAFT 50 x 440 EJ_30 PTO SHAFT... -
Page 20: Suspension
SUSPENSION PART NAME SIZE PART # AXLE SQ 60 x 1500 – 4 Tonne BUR_AF60A.1500.05 RIMS 18“ BUR_W1811.0-05L TYRES 12.0-18 204320 BURQUIP EYE 6T 35 mm BUR_CO1132 U-BOLT SQ 60 BUR_SU60S U-BOLT BUSHES 70 mm EJ_6 LANDING LEG J0008 MISCELLANEOUS PART NAME SIZE PART #... - Page 21 Straight 6 x 1 GNSTR6 BULLET HINGES 10 mm BUL2926 BULLET HINGES 12 mm BUL02 SLATCHES 925 mm SLATCHES_925MM __________________________________________________________________________________ Page 21 of 21...
