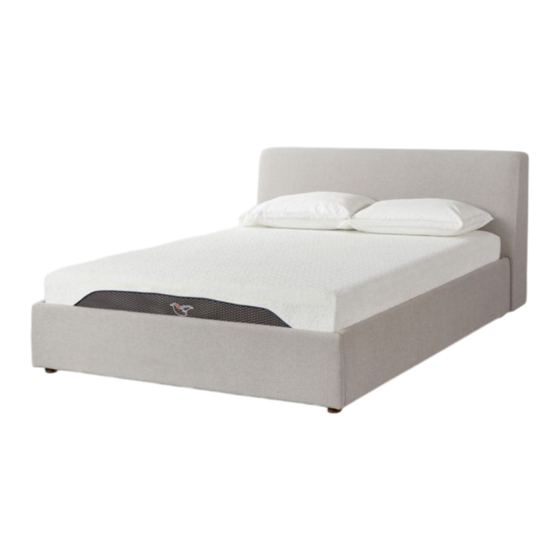

Harper Fabric Bed with Storage
1. PLEASE CHECK THAT ALL PARTS ARE PRESENT BEFORE YOU START
THE ASSEMBLY OF YOUR FURNITURE.
2. FOR THE PROTECTION OF YOUR FURNITURE, PLACE ALL PARTS ON
A CLEAN AND SMOOTH SURFACE TO PREVENT ANY DAMAGE.
3. DO NOT USE POWER TOOLS TO ASSEMBLE THE BED.
4. PLEASE PERIODICALLY CHECK ALL FITTINGS AND RE-TIGHTEN AS
NECESSAY.
5. DO NOT USE THE BED UNLESS ALL BOLTS AND SCREWS ARE
FIRMLY SECURED.
IMPORTANT NOTE
1/7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wazo Harper
Summary of Contents for Wazo Harper

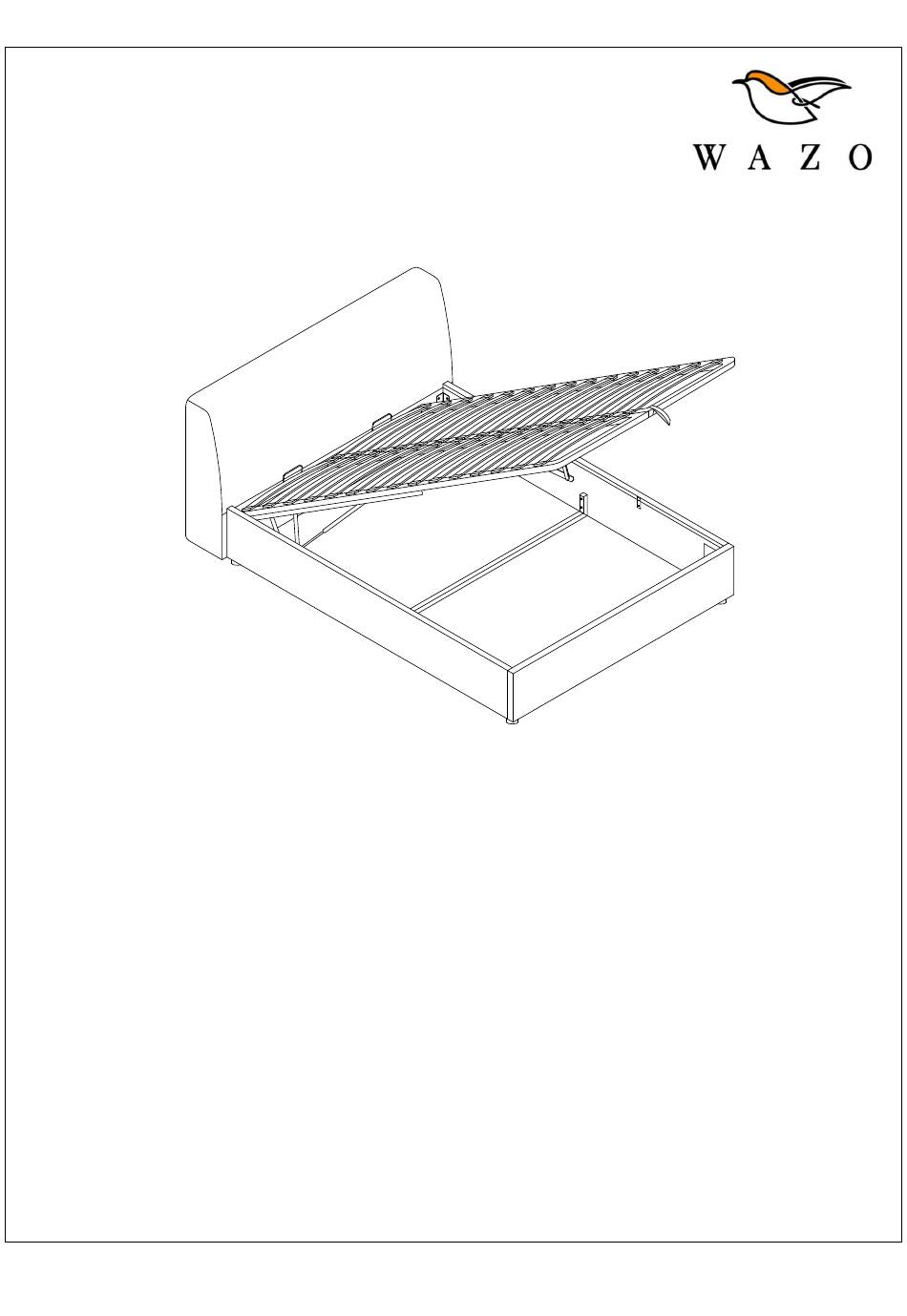

- Page 1 Harper Fabric Bed with Storage IMPORTANT NOTE 1. PLEASE CHECK THAT ALL PARTS ARE PRESENT BEFORE YOU START THE ASSEMBLY OF YOUR FURNITURE. 2. FOR THE PROTECTION OF YOUR FURNITURE, PLACE ALL PARTS ON A CLEAN AND SMOOTH SURFACE TO PREVENT ANY DAMAGE.
-
Page 2: Part List
PART LIST (1)Headboard x 1pc (2)Footboard x 1pc (3)Side Rail x 1pc (4)Side Rail x 1pc (5)Storage Board x 1pc (6)Metal Horizontal Support Bar x 1pc (7)Metal Frame Base x 1pc (9)Footboard Rail x 1pc (8)Leg x 4pcs (10)Mattress Stopper x 2pcs (11)Metal Corner Plate x 2pcs (12)'U' SHAPED CROSS BAR x 1pc... - Page 3 STEP 1 X 10 100% Make certain the bed is squared up as shown in the diagram then tighten all bed assembly bolts 100%.
- Page 4 STEP 2 STEP 3...
- Page 5 STEP 4 STEP 5...
- Page 6 STEP 6 REMINDER: DO NOT FULLY TIGHTEN ALL THE BOLTS BEFORE CONFIRMING THE METAL FRAME IS IN CORRECT POSITION. THERE ARE 3 HOLES AT THE METAL FRAME AND LIFT UP MECHANISM USED FOR FIXING THE METAL FRAME ON THE LIFT UP MECHANISM. CONNECT THE METAL FRAME BASE TO THE LIFT UP MECHANISMS WITH THE BENT SLATS FACING UP WARDS.
- Page 7 STEP 7 PUSH ITEM (10) INTO HOLES INTO FRAME STEP 8 REMARK: FINALLY, PLACE MATTRESS ON FRAME THEN SLOWLY PUSH DOWN METAL FRAME ENSURING THE FRAME IS FULLY ALIGNED WITH THE SIDE RAIL.
