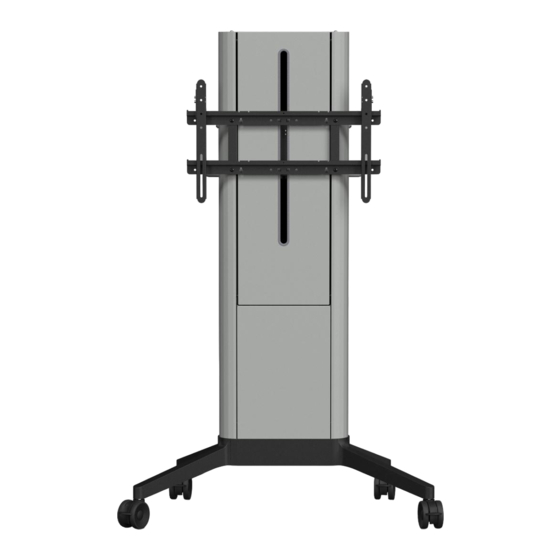

SMS EVER 350 Mobile Clean Motor Installation And Adjustment Manual
Hide thumbs
Also See for EVER 350 Mobile Clean Motor:
- Installation and adjustment manual (23 pages) ,
- Installation and adjustment manual (12 pages)
Advertisement
Quick Links
INSTALLATION AND
ADJUSTMENT MANUAL
16-005-xC-M EVER 350 Mobile Clean Motor
M000341
16-005-xC-M EVER 350 Mobile Clean Motor
16-005-xE-M EVER 350 Mobile Edge Motor
16-005-xS-M EVER 350 Mobile Soft Motor
DE Handbuch für Installation und Anpassung
IT Manuale per l'installazione e la regolazione
ES Manual de instalación y ajuste
FI Asennus- ja säätöohje
FR Manuel d'installation et de réglage
NL Handboek voor installatie en instellingen
PL
RUS
ARB
SE Monterings- och justeringsmanual
GR
16-005-xE-M EVER 350 Mobile Edge Motor
16-005-xS-M EVER 350 Mobile Soft Motor
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SMS EVER 350 Mobile Clean Motor
Summary of Contents for SMS EVER 350 Mobile Clean Motor
- Page 1 INSTALLATION AND ADJUSTMENT MANUAL 16-005-xC-M EVER 350 Mobile Clean Motor 16-005-xE-M EVER 350 Mobile Edge Motor 16-005-xS-M EVER 350 Mobile Soft Motor M000341 16-005-xC-M EVER 350 Mobile Clean Motor 16-005-xE-M EVER 350 Mobile Edge Motor 16-005-xS-M EVER 350 Mobile Soft Motor DE Handbuch für Installation und Anpassung...
- Page 2 AB. Λανθασμένη εγκατάσταση μπορεί να προκαλέσει ανθρώπινο τραυματισμό ή υλικές ζημιές. montering kan resultera i person och sakskador. SMS friskriver sig från allt ansvar av vad slag det må vara Η SMS δεν φέρει καμία ευθύνη αν το προϊόν εγκατασταθεί λανθασμένα.
- Page 3 Nei casi in cui si faccia riferimento alla garanzia, si deve inviare a SMS il prodotto insieme alla purchase receipt are to be returned to SMS. The name of the supplier and the date of purchase must ricevuta d’acquisto in originale. Sulla ricevuta devono essere chiaramente leggibili nome del be clearly legible on the receipt.
- Page 4 4 EVER 350 MOBILE MOTOR Declaration of conformity Declaración de conformidad DICHIARAZIONE DI CONFORMITÁ Manufacturer: SMS - Smart Media Solutions AB El fabricante: SMS - Smart Media Solutions AB Produttore : SMS Smart Media Solutions AB Högbergsgatan 26B Högbergsgatan 26B Högbergsgatan 26B...
-
Page 5: When Using
EVER 350 MOBILE MOTOR Instructions for use - EVER 350 Mobile Solid Motor When using To heighten the display, Caution! press arrow up Lock the wheel brakes Down When using the product connect the To lower the mains plug display, press arrow down Caution! Risk of crushing Children may use product only... -
Page 6: You Will Need
EVER 350 MOBILE MOTOR ASSEMBLY INSTRUCTIONS YOU WILL NEED Allen key No. 4, 5 No. 17 NOT INCLUDED Display NUMBER OF PERSONS REQUIRED... -
Page 7: List Of Parts
EVER 350 MOBILE MOTOR LIST OF PARTS (2x) (1x) (2x) (2x) (4x) (1x) - Page 8 EVER 350 MOBILE SOLID MOTOR LIST OF PARTS (continued) (1x) (1x) (2x) (1x) (1x) (2x) (1x) (4x) (2x)
- Page 9 EVER 350 MOBILE MOTOR LIST OF PARTS (continued) S1 (12x) ISO 4762 [M6x10] SCREW KIT SCREW KIT Screw M6x10 Screw M6x16 Screw M6x30 Screw M8x20 Screw M8x30 Screw M8x40 Washer 6,4 Multiple washer Plastic spacer 8,2/15x5 Plastic spacer 8,2/15x10...
- Page 10 EVER 350 MOBILE SOLID MOTOR...
- Page 11 EVER 350 MOBILE MOTOR REAR REAR SIDE FRONT A2 (2x) A1 (2x) S1 (8x) Align legs (8x)
- Page 12 EVER 350 MOBILE MOTOR OPTION 1: Sheet metal covers G1 (1x) G2 (1x)
- Page 13 EVER 350 MOBILE MOTOR OPTION 2: MDF/Acoustic covers Ceiling height under 2.8 m G1 (1x) G2 (1x) G2 (1x) G1 (1x) Ceiling height over 2.8 m...
- Page 14 EVER 350 MOBILE MOTOR...
- Page 15 EVER 350 MOBILE MOTOR Arrow to point at leg...
- Page 16 EVER 350 MOBILE MOTOR 310mm 310mm *Install handles after installing (optional) shelves...
- Page 17 EVER 350 MOBILE MOTOR...
- Page 18 EVER 350 MOBILE MOTOR...
- Page 19 EVER 350 MOBILE MOTOR S1(4x) (4x)
- Page 20 EVER 350 MOBILE MOTOR Follow ‘Set Motor to Zero’ on page 27...
-
Page 21: Closed Position
EVER 350 MOBILE MOTOR Guide cable Cable chain setting Closed position Open position... - Page 22 EVER 350 MOBILE MOTOR OPTION 1: Sheet metal covers...
- Page 23 EVER 350 MOBILE MOTOR OPTION 2: MDF/Acoustic covers G2 (3x)
- Page 24 EVER 350 MOBILE MOTOR C1 (1x) C2 (1x) K1 (4x) SCREW KIT...
- Page 25 EVER 350 MOBILE MOTOR...
- Page 26 EVER 350 MOBILE MOTOR Secure!
- Page 27 EVER 350 MOBILE MOTOR SET MOTOR TO ZERO (optional) Release Down Hold height motor to zero Run to Release lowest ‘down’ button position 6-7 sec Down Release Hold table motor to zero Run to Release lowest ‘down’ button position 6-7 sec Proceed to step no.
-
Page 28: Product Dimensions
43,74 11,82 6,69 18,85 1111,1 300,1 170,1 478,8 24,60 624,8 3,17 80,5 43,74 1111,1 All dimensions in mm. SECTION A-A Dimensions in brackets [ ] are in inches SMS Smart Media Solutions AB Högbergsgatan 26B 116, 20 Stockholm, Sweden www.smartmediasolutions.com...
