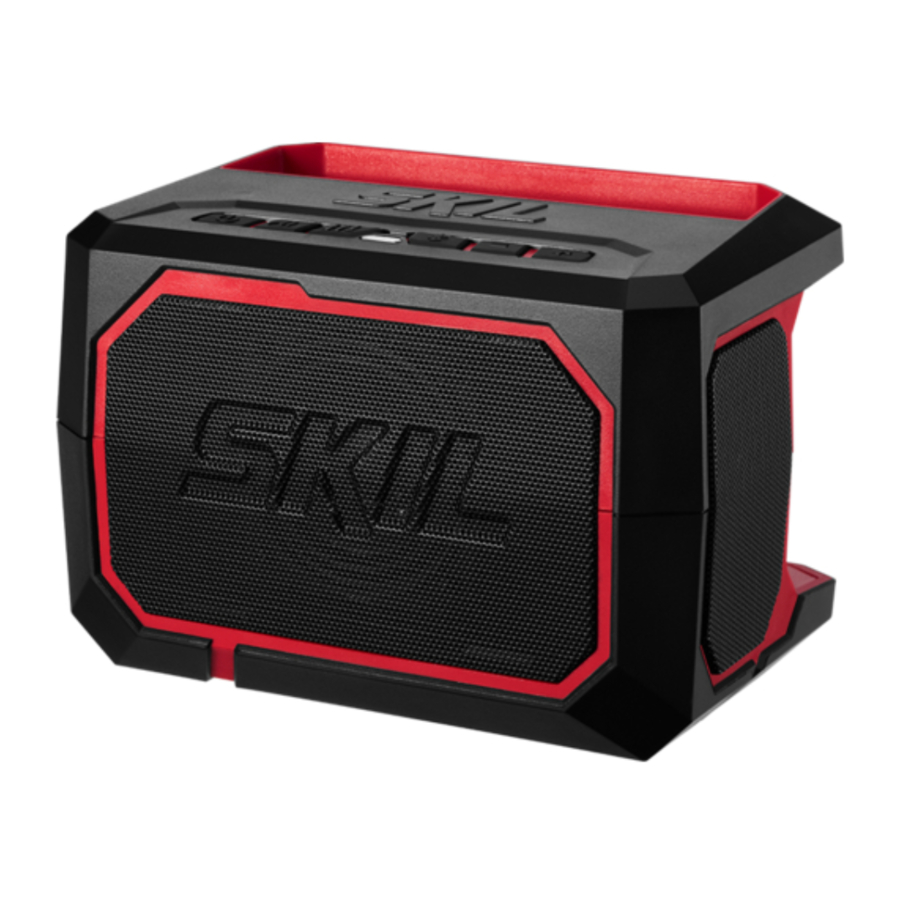

Skil RO5028E-00 - Cordless Bluetooth Speaker Manual

INTRODUCTION

• This tool is intended for streaming audio from Bluetooth devices or connecting an audio source to the auxiliary input socket (AUX)
• This tool is intended for using a SKIL battery pack as power source for USB devices
• This tool is not intended for professional use
• Read this instruction manual carefully before use and save it for future reference

OVERVIEW

SPECIFICATION

USE

• Charging battery
  read the safety warnings and instructions provided with the charger
• Removing/installing the battery
  read and follow the instruction delivered with the charger or power supply
• Battery protection

  The tool is suddenly being switched off or prevented from being switched on, when
  • the load is too high → remove load and restart
  • the battery temperature is not within the allowable operating temperature range of -20 to +50°C → 2 levels of the battery level indicator start flashing when pressing button c; wait until battery has returned within the allowable operating temperature range
  • the battery is nearly empty (to protect against deep discharge) → a low battery level or flashing low battery level b is shown by the battery level indicator when pressing button; charge battery
    do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged
• On/off
  • press and hold button for 1 second to turn on the speaker
  • indicator will start flashing
  • press and hold button for 3 seconds to turn off the speaker
    after approx. 45 minutes of inactivity the speaker will automatically turn off
• Volume
  • use buttons to increase or decrease the volume
• Play/Pause
  • use the Play/Pause button to play or pause a track
• Bass
  • to add extra bass, press the Bass button
  • to turn off the extra bass, press the Bass button again
• Connecting with Bluetooth
  • turn on the speaker and it will automatically enter into Bluetooth pairing mode
  • indicator will start flashing
  • the speaker will automatically try to connect to the last device it was paired to
  • if no connection can be made, the speaker will be available for connection to other Bluetooth devices for approx. 10 minutes
    after approx. 45 minutes of inactivity the speaker will automatically turn off
  • when a connection is made, the indicator will turn blue continuously
  • to pair to a different device press and hold the Bluetooth pairing button for 3 seconds
  • indicator will start flashing
    read the instructions provided with your device
• Connecting with AUX
  • open dust cover
  • plug in audio cable in the AUX port and connect to a MP3 player, CD player or other audio device
  • indicator will turn blue
    without a connection the speaker will automatically enter into Bluetooth pairing mode
• Charging an external USB device
  • open dust cover
  • connect a USB device with USB charging cable to port
    any device that uses more than the maximum output current (see technical data) will trip a self-resetting overload protection and disable the speaker, reactivate by removing the USB device and turn on the speaker
    when not in use, remove the charger cable(s) and battery

MAINTENANCE/SERVICE

• This tool is not intended for professional use
• Always keep tool clean (especially ventilation slots)
  remove battery from tool before cleaning

SAFETY

• This tool can be used by children aged 8 and above and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the tool and they understand the associated dangers (otherwise, there is a danger of operating errors and injuries)
• Supervise children (this will ensure that children do not play with the tool)
• Cleaning and user maintenance of the tool shall not be made by children without supervision
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Store the tool indoors in a dry and locked-up place, out of reach of children
• Do not use tool/charger when damaged; take it to one of the officially registered SKIL Service Stations for a safety check
• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Provide for good ventilation at the working place

BATTERIES

• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• Only use the following batteries and chargers with this tool
  • SKIL battery: BY5197E-03 BY5196E-03
  • SKIL charger: SC5358E-01 QC5360E-01 QC5359E-00
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
• Permitted ambient temperature (tool/charger/battery):
  • when charging 4...40°C
  • during operation –20...+50°C
  • during storage –20...+50°C
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

EXPLANATION OF SYMBOLS ON TOOL

Read the instruction manual before use

Do not dispose of electric tools and batteries together with household waste material
