CAME-TV MINI 50C User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
M I N I 5 0 C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINI 50C and is the answer not in the manual?

Questions and answers

Related Manuals for CAME-TV MINI 50C

Summary of Contents for CAME-TV MINI 50C

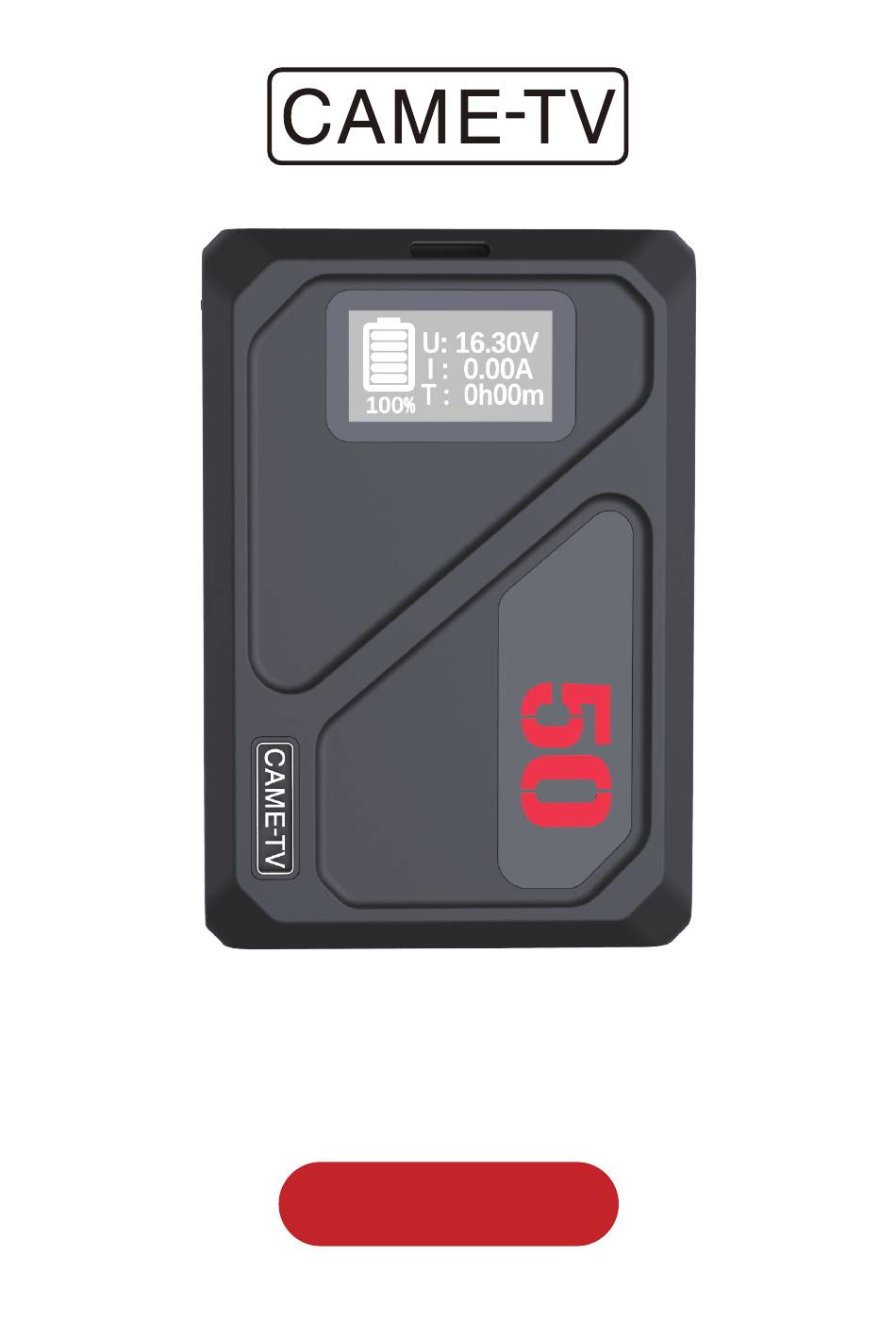

  • Page 1 USER MANUAL M I N I 5 0 C...
  • Page 2 I - Description MINI 50C is a broadcast-grade lithium-ion battery that combines advanced technology and user-friendly design, aiming to provide more ef cient and convenient power support for users in photography, broadcasting and other industries. In practical applications, its standard is 45W bidirectional TYPE-C, which supports fast charging and discharging to maintain suf cient power anytime and anywhere.

  • Page 3: Product Appearance

    II - Product Appearance 12V DC USB-C USB-A 8.4V DC BP Interface V-Mount Interface OLED Display D-TAP Display Switch Button III - Button Instruction Press the 'Display Switch Button' to activate USB-A, USB-C, 8.4V DC, 12V DC Press the 'Display Switch Button' to turn on the screen. Screen will automatically turn off in about 5 seconds.
  • Page 4 IV - Parameters Model MINI 50C Rated Voltage 14.4V Capacity 50Wh, 3450mAh 14.4V 5A BP Interface 14.4V 5A D-TAP 5V 2.1A (MAX.) Output USB-A PD 2.0 & PD 3.0 Bidirectional USB-C input/output 45W (MAX.) 12V 2A (MAX.) 8.4V 2A (MAX.)

  • Page 5: Oled Display

    V - OLED Display When the battery is charging and discharging normally, U: 16.30V the screen will display voltage, current, and other I : 2.50A parameters in real time. The letter "I" represents the T : 1h15m real-time current, "U" represents the real-time voltage, 100% while "T"...

  • Page 6: Troubleshooting

    VI - Troubleshooting Problems Troubleshooting (1)Charge the battery to activate it once an abn ormal protection symbol popped up. (2)Verify the connection with the devices to ensure its accuracy. (3)Check if the battery power is low. power supply (4)Check if the positive and negative terminals are reversed.
  • Page 7 disconnect the connection between this product and other equipment to ensure the safety of personnel. (4) The operating temperature range of this product is 0~40 degrees Celsius (the optimal operating temperature range is 15~35 degrees Celsius). If it exceeds this temperature range, the performance of this product may change.
  • Page 8 from re sources to avoid causing an explosion. (6) It is strictly prohibited to repair or modify this product without permission. Repairing or modifying the battery without permission may cause internal short circuit, decomposition of internal materials, re, explosion, etc. In addition, disassembling the battery may cause the battery electrolyte to leak;...
  • Page 9 X - Storage (1) This product should be stored in a clean, dry, and ventilated environment with a temperature range of 0-40 degrees Celsius and a relative humidity range of 30-60%. (2) Contact with corrosive substances must be avoided. (3) This product must be kept away from sources of ignition and heat.

  • Page 10: After Sales Service

    XII - Aftersales Service While we trust you will never have the need, if you do, our service is both friendly and hassle-free. Email: Americas: americas@came-tv. com Outside Americas: europe@came-tv.com Follow Us: https://www.facebook.com/CameTvGear/ https://www.instagram.com/cametv/ https://www.youtube.com/c/CameTVgear/videos...
