H-8996, H-8997

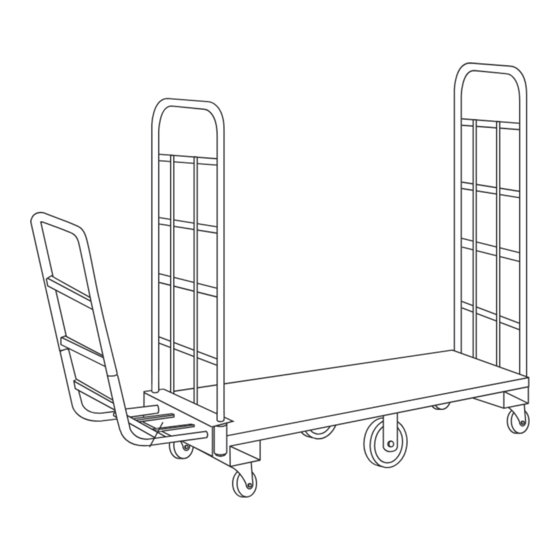

CARDBOARD CATCHER
FOR U-BOAT PLATFORM
TRUCKS
1. Connect top piece to bottom piece. Circular tabs
will click into place. (See Figure 1)
Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
ASSEMBLY
2. Remove cotter pins from handle and lift handle
Circular
Tab
Pour le français, consulter la page 3.
out of sockets. Place cardboard catcher lip over
sockets and edge of deck. Insert handle into lip of
cardboard catcher and sockets and insert cotter
pins. (See Figure 2)
Figure 2
Para Español, vea página 2.
1120 IH-8996
Advertisement
Table of Contents
Summary of Contents for U-Line H-8996
- Page 1 Para Español, vea página 2. Pour le français, consulter la page 3. H-8996, H-8997 1-800-295-5510 uline.com CARDBOARD CATCHER FOR U-BOAT PLATFORM TRUCKS ASSEMBLY 1. Connect top piece to bottom piece. Circular tabs 2. Remove cotter pins from handle and lift handle will click into place.
- Page 2 H-8996, H-8997 800-295-5510 uline.mx ADITAMENTO PARA CARTONES PARA CARRITOS DE PLATAFORMA EN U ENSAMBLE 1. Conecte la pieza superior a la inferior. Las pestañas 2. Retire los pasadores de chaveta del asa y levántela circulares harán clic en su lugar. (Vea Diagrama 1) de los conectores.
- Page 3 H-8996, H-8997 1-800-295-5510 uline.ca PORTE-CARTON POUR CHARIOTS À PLATEFORME U-BOAT MONTAGE Raccordez la partie supérieure et la partie inférieure. 2. Retirez les goupilles fendues de la poignée, puis Les boutons circulaires s'enclencheront en place. soulevez-la pour la faire sortir des socles. Placez le...
