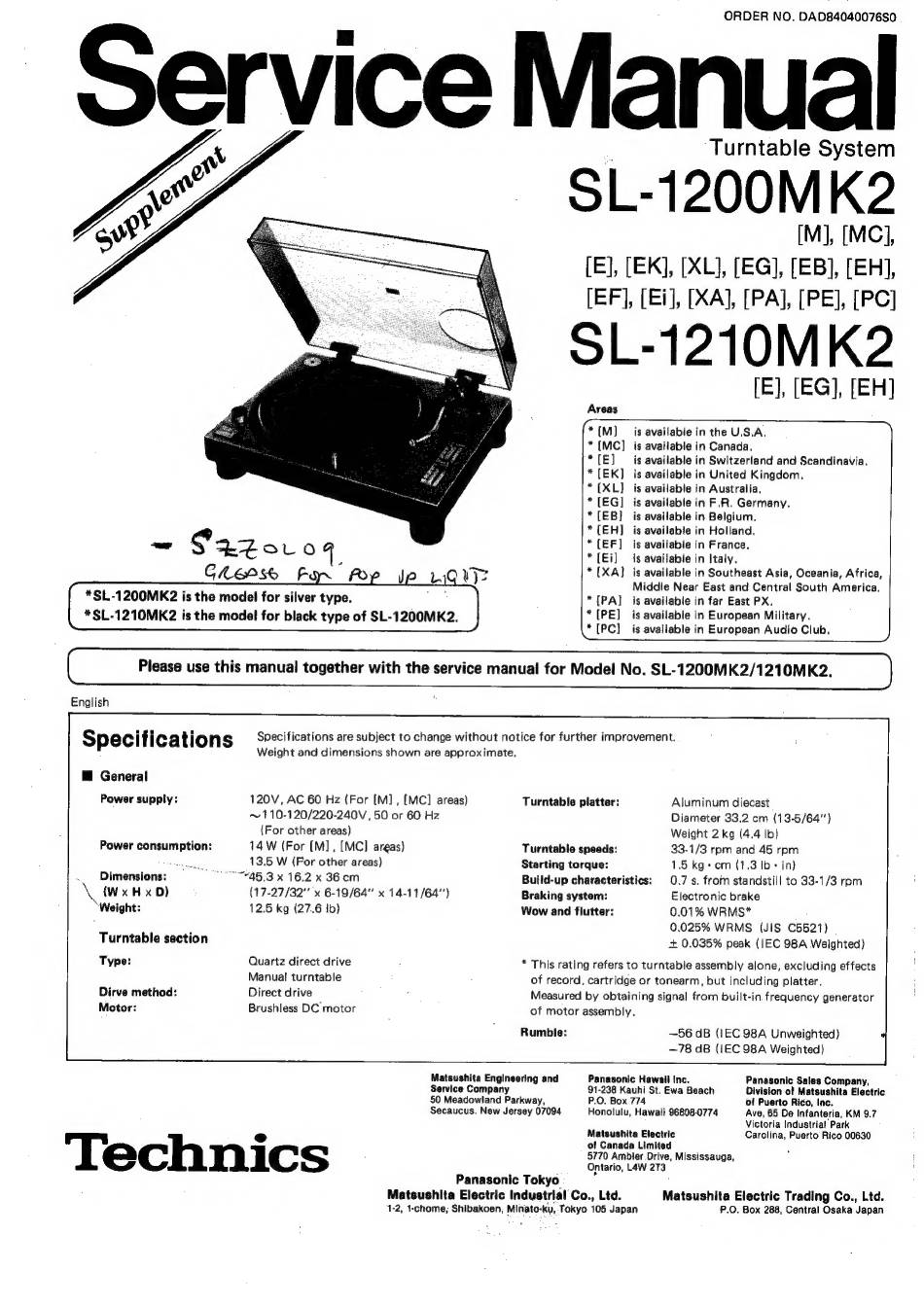

Technics SL- 1200MK2 Service Manual

ORDER NO. DAD84040076S0
'Turntable System
SL- 1200M K2
], [MC],
[E], [EK], [XL], [EG], oe [EH],
[EF], [Ei], [XA], [PA], [PE], [PC]
SL- 1210MK2
Areas
"[M] _ is available in the U.S.A.
* [MC] is available in Canada.
* [E] is available in Switzerland and Scandinavia.
* [EK] is available in United Kingdom.
* (XL] is available in Australia.
* [EG] is available in F.R. Germany.
* [EB] is available in Belgium.
* [EH] is available in Holland.
* [EF] is available in France.
* [Ei] is available in Italy.
" [XA] is available in Southeast Asia, Oceania, Africa,
Middle Near East and Central South America.
* [PA] is available in far East PX.
* [PE] is available in European Military.
* [PC] is available in European Audio Club,
TN
*SL-1200MK2 is the model for silver type.
*$L-1210MK2 is the model for black type of SL-1200MK2.
English
Specifications Specifications are subject to change without notice for further improvement. è di
Weight and dimensions shown are approximate,
M General
Power supply:
120V, AC 60 Hz (For [M], [MC] areas)
Turntable platter:
Aluminum diecast
~110-120/220-240V , 50 or 60 Hz
Diameter 33.2 cm (13-5/64"'}
(For other areas)
Weight 2 kg (4.4 Ib)
Power consumption:
14 W (For [M], [MC] areas)
Turntable speeds:
33-1/3 rpm and 45 rpm
kd
13.5 W (For other areas)
Starting torque:
1.5 kg-cm (1.3 Ib + in)
Dimensions;
453
x 16.2 x 36 cm
Build-up characteristics:
0.7 s. from standstill to 33-1/3 rom
Na {Wx H x D}
: {17-27/32" x 6-19/64" x 14-11/64")
Braking system:
Electronic brake
"Weight:
12.5 kg (27.6 ib)
Wow and flutter:
0.01% WRMS*
0.025% WRMS (JIS C5521)
Turntable section
+ 0.035% peak (IEC 98A Weighted)
Type:
Quartz direct drive
:
* This rating refers to turntable assembly alone, excluding effects
Manua! turntable
of record, cartridge or tonearm, but including platter.
Dirve method:
Direct drive
Measured by obtaining signal from built-in. frequency generator
Motor: Brushless DC motor
of motor assembly.
Rumble: —56 dB (IEC 98A Unweighted)
—78 dB (IEC 98A Weighted)
Matsushita Engineering and Panasonic Hawaii Inc. Panasonic Sales Company,
Service Company
91-238 Kauhi St. Ewa Beach
Division of Matsushita Electric
50 Meadowland Parkway,
P.O. Box 774
of Puerto Rico, Inc.
e of Canada Limited
5770 Ambler Drive, Mississauga,
Ontario, Law 273
Panasonic Tokyo
Matsushita Electric Industrial Co., Ltd. Matsushita Electric Trading Co., Ltd.
1-2, 1-chome, Shibakoen, Minato-ky, Tokyo 105 Japan P.O. Box 288, Central Osaka Japan
