RCI OFFROAD RCI 16-23 Installation Manual

Tacoma pike high clearence wings
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
RCI 16-23 Tacoma Pike High Clearence Wings Installation
Guide

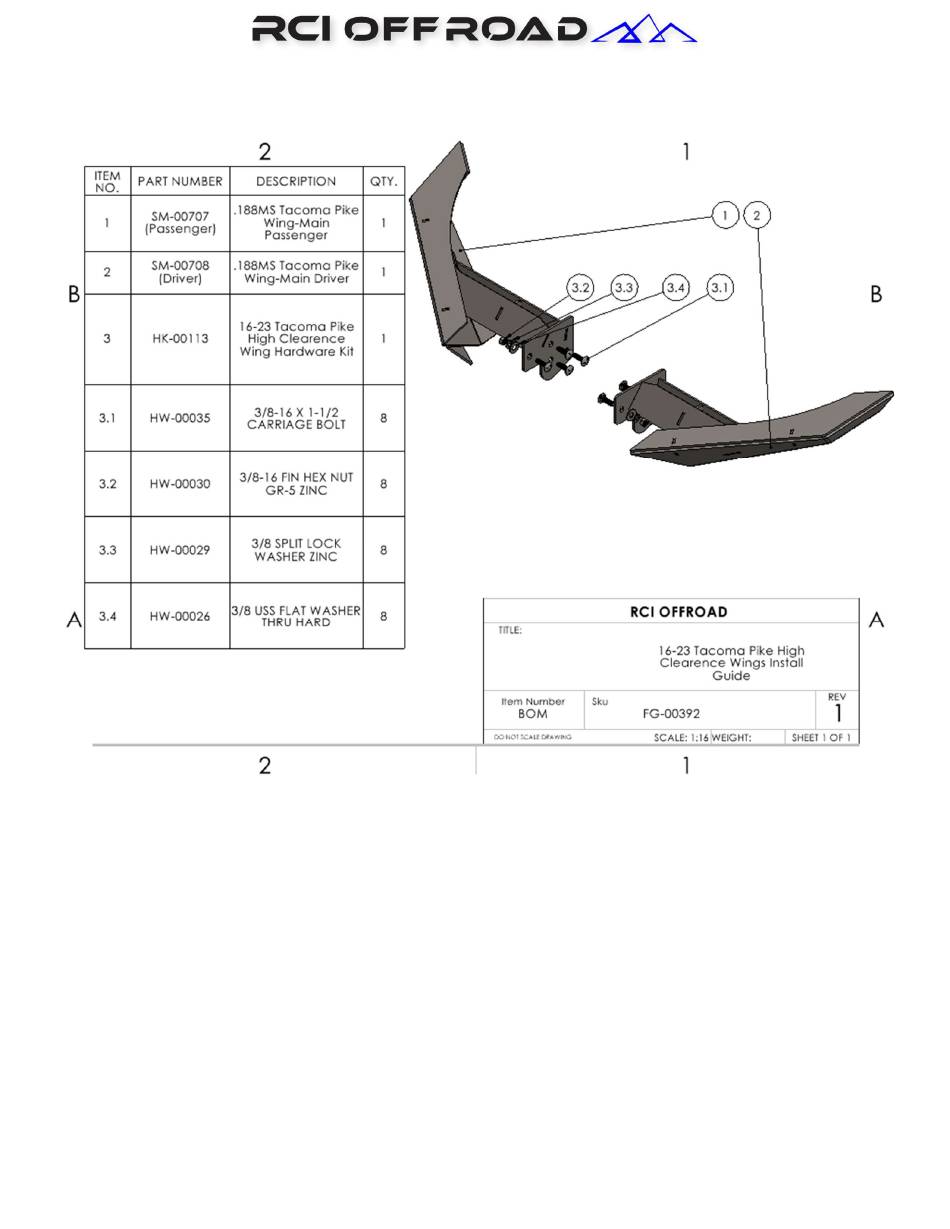

Figure 1: BOM

Advertisement

loading
Need help?

Need help?

Do you have a question about the RCI 16-23 and is the answer not in the manual?

Questions and answers

Related Manuals for RCI OFFROAD RCI 16-23

Summary of Contents for RCI OFFROAD RCI 16-23

  • Page 1 RCI 16-23 Tacoma Pike High Clearence Wings Installation Guide Figure 1: BOM...

  • Page 2: Installation Steps

    INSTALLATION STEPS: **Use hand tools, impact wrenches may cause damage if over torqued** 1) Begin by unpacking and removing all components and hardware. Please verify that all hardware and mounting components are present. Reference your original order invoice and verify all items are accounted for. a.
  • Page 3 Figure 4: Cutting along bottom of template. 6) Use a cutoff wheel or something similar to remove the lower section of the bumper. Cut along the bottom of the template. 7) Follow the cut line from where it contacts the Pike bumper out to the wheel well. 8) Use a file or flap disk to clean up the fresh cut.
  • Page 4 Edge Trim Placement Figure 5: Edge trim placement 11) Start on one side of the vehicle and collect the four (4) of the included 3/8” carriage bolts, 3/8” washer, 3/8” lock washer, and 3/8” nuts. a. NOTE: This installation can be completed with the bumper on the vehicle but will be easier with the bumper removed.
  • Page 5 Figure 6: Hardware orientation. Figure 7: Hardware orientation. 15) Leave all hardware loose and align the wing to line up with the geometry of the RCI Pike bumper. a. If the wings are contacting the body of the truck remove them and trim. b.
  • Page 6 Figure 8: Correct installation. 17) Repeat the installation process on the opposite side of the vehicle. 18) Once both wings are fully installed, trim the inner fender liners to preference.
  • Page 7 Figure 9: Example of trimmed fender liner.

  • Page 8: Appendix A: Template

    Enjoy your new RCI protection! Share your new install with us on social media! We love seeing our products out in the wild! www.rcimetalworks.com sales@rcioffroad.com 970-797-3089 REV: 1 | 9/29/2022 Disclaimer: The products sold by RCI Metalworks are intended for off –road use only, should not be modified, and are for use only on the vehicle(s) specifically stated.
