Summary of Contents for Exo BLACKHAWK3 PRO
- Page 2 / guidelines set forth by EXO Drones. Part of the details of this document may change with the upgrade of the product software version. Please read the upgrade details carefully before upgrading the software version.
- Page 3 / liquid. To avoid any injuries, do not use the aircraft with damaged components. MAINTENANCE Do not try to open or repair the units by yourself. Contact EXO Drones for service. For more information, please visit the official website at www.exodrones.com BATTERY Do not disassemble, squeeze, impact, burn, drop or trample the battery.
- Page 4 14.8 V, which can prolong the life time of the battery. ● Please use only EXO chargers or EXO Charging Hub for battery charging. ● Do not charge in a flammable and explosive environment to prevent fire.
-
Page 5: Table Of Contents
2.6 Transmitter Sticks & Disclaimer Thumbwheel Calibration Fcc Information 3 Flight FAA Remote ID Compliance Information 3.1 Download the EXO Pro App 3.2 APP flight control interface 3.3 Pairing The Aircraft 3.4 Compass Calibration 3.5 Staring / stopping The Motors... -
Page 6: Aircraft

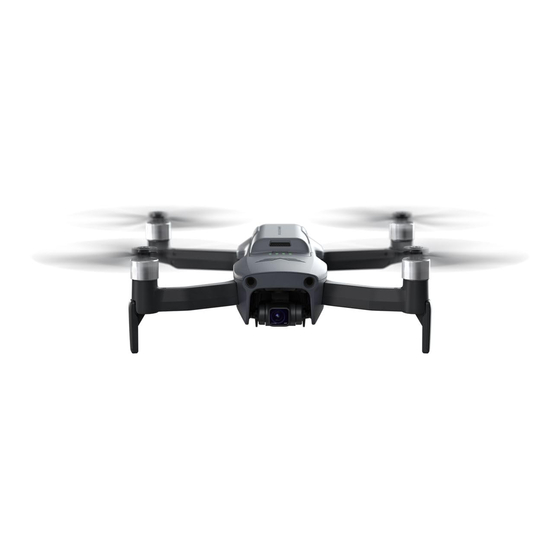

1.Aircraft 1.1 Aircraft Spare Part Propeller A Gimbal Protection Guard Propeller B Micro-USB Port Motor Image indicator Tripod (With Antenna) Battery level indicator Body shell Intelligent Battery Battery power switch Forward Vision System 4K HD Camera Backward Vison System 3-axis gimbal... - Page 7 Video transmission indicator Bind button TF Slot Battery buckle Bluetooth indicator Downward Vision System Auxiliary Light Infrared Assisted Altitude System Note: The aircraft generates heat during operation. Please avoid direct touch the ventilated rib on the bottom of the aircraft after the flight.
-
Page 8: Aircraft Battery
1.2 Aircraft Battery 1.2.1 Aircraft Battery Charging The aircraft uses 4S lithium battery with 5000mAh capacity and nominal voltage of 14.4V. It equipped with a standard charger & the charging time is about 120 minutes. 1. Connect the power adapter to the AC power supply (100v-240v, 50-60Hz). 2. -
Page 9: Aircraft Battery Installation
(8) Short Circuit Protection: The power supply is automatically cut if a short circuit is detected. (9) Battery Cell Damage Protection: The EXO Pro App displays a warning message when a damaged battery cell is detected. (10) Hibernation Mode: When the battery is in the on state, if there is no connected device, the battery will automatically shut down within 3 minutes;... -
Page 10: Precautions For Low Temperature
1.2.5 Precautions For Battery Be sure to fully charge each time before using the Intelligent Battery. Charge the intelligent battery only with EXO Drones supplied power adapter and intelligent charging modules. (1) After each flight, battery temperature maybe higher. Allow Intelligent Battery to cool down to normal room temperature before charging. -
Page 11: Propellers
If the blade is damaged or needs to be replaced, unscrew the screw counter-clockwise to remove the propeller. Use only EXO original Propellers, because it comes with loctite applied screws to prevent accidental screw and propellers loose. (EXO Standard accessories come... -
Page 12: Remote Controller
2. Remote Controller 2.1 Names Of Remote Controller Components Japan Mode( Mode 1 ) : (1) Throttle/ left & right flight controller levers (2) Forward & Backward/ Rudden stick America Mode : 1(2) 2(1) 1.Throttle/Rudden stick controller levers 2.Forward & Backward / left &... - Page 13 America mode (Mode 2) and Japan mode (Mode 1) can switch in the EXO Pro settings: ① Open the EXO Pro app and choose relevant aircraft model to enter the flight control interface, and click the gear icon in the upper right corner to enter the settings.
-
Page 14: Remote Controller Features
2.2 Remote Controller Features Key / Switch Function Move the stick forward or backward to ascend or Throttle / Rudder descend the drone. Move the stick left or right to Stick rotate the drone Clockwise or counter clockwise. Move the stick forward or backward to fly the drone Elevator / Aileron forward or backward. - Page 15 Custom keys beeping prompts. Custom keys, set the function on the app and save it. When the EXO Pro app is not connected, [short press] Fn won't work. Function one: Exit the current flight mode. In this mode, short press Fn to exit the current flight mode and the aircraft will hover.
