Page 4: Introduction
Please read this manual thoroughly before you install and set up your new power inverter. The MWXNE Pure Sine Wave Inverter series of products is used for back-up power. The pure sine wave inverter product line is the ideal choice for sensitive equipment and provides clean power with higher efficiency for back-up power applications. -
Page 5: Product Service And Support
If there are any problems with products out of warranty, please contact us and we will do our best to assist you in resolving the issue. Thank you again for purchasing MWXNE inverter! -
Page 6: Safety Precautions
Read all of the instructions and cautions in the manual before beginning the installation. In order that you can better use MWXNE inverter and prevent accidents of personal injury and object damage, please focus on the contents of the safety precautions and operate the inverter carefully with common sense in life. -
Page 7: Electrical Safety
Electrical Safety NEVER connect the AC output of the unit directly to an Electrical Breaker Panel / Load Centre that is also receiving power from the utility power / generator. NEVER use the inverter with positive grounded electrical system. This unit is designed for use with negative grounded electrical systems only. -
Page 8: Installation Safety
RECOMMENDATIONS: MWXNE inverter should be placed horizontally. Mount the inverter on a stable surface, such as a floor, table, or sturdy support, to prevent bouncing and movement. Choose a location that can support the weight of the inverter. It's... -
Page 9: Grounding Instructions
SPECIAL NOTES FOR CHILDREN: Never allow children to operate or play with the inverter. Keep the unit away from children. Choose to install the inverter out of the reach of children. Keep all accessories out of the reach of children as they could be dangerous. -
Page 10: Load Precautions
Load Precautions Note: If you encounter any situation where certain loads cannot be used when using the inverter, please contact our after-sales email promptly, and we will do our best to solve the problem for you. The rated power consumption and maximum power consumption of the following devices vary significantly. -
Page 11: Calculation Method Of Required Capacity
Calculation Method of Required Capacity To ensure the inverter works properly, make sure that the rated voltage of the battery matches the rated input voltage of the inverter. Keep in mind that small-capacity batteries may not be enough to power large appliances. In this case, the load of the appliance may cause the inverter to enter undervoltage protection mode. - Page 12 Please refer to the formulas below to calculate your battery and inverter needs: Formula to Calculate Required Inverter Wattage: Total Load Power (W) / Inverter Efficiency = Inverter Wattage (If the sensitive equipment is included in the devises that you connected to the inverter, the starting power of it may need to be increased by 3 to 8 times depending on the different situation.
- Page 13 Simple Example Reference Example: Load: Lighting 20W + Laptop 100W + Smartphone Charging 6W + Coffee Maker 800W Runtime: 2 hours Battery voltage: 12VDC Inverter efficiency: Calculation Method: （20+100+6+800*4）/90% ≈ 3696W Inverter Power NOTE: The coffee maker belongs to electrical appliances with motor, which requires at least 4 times the starting power.
- Page 14 Example: Load: Lighting 20W + Laptop 100W + Smartphone Charging 6W + Kettle 500W Runtime: 2 hours Battery capacity: 330AH Inverter efficiency: Inverter voltage: 12VDC Calculation Method: 330*12/(（20+100+6+500） Battery Runtime /90%) ≈ 5.69H Power Consumption 12*0.64A=7.68W at No load Summary: When using a battery with a capacity of 330AH, the load can be used for around 5.69 hours, with a no-load power consumption of 7.68W.
-
Page 15: Product Information

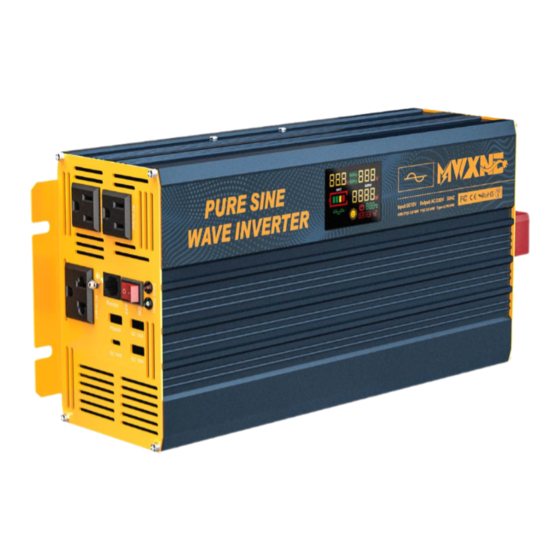

Product Information The waveform output waveform of this inverter is pure sine wave, which has the same high-quality as the power provided by utility and/or domestic power sources. This type of waveform is ideal for most electrical devices, appliances, and tools. The pure sine wave output of this inverter also provides more capabilities than modified sine wave inverters because it is a cleaner form of power. -
Page 16: Battery Cables Parameters
Battery Cables Parameters Specification Cross-sectional area/mm² Outer diameter/mm 1200W/12V 5AWG 4.51 1500W/12V 4AWG 20 (10*2) 5.05 2000W/12V 3AWG 5.64 2000W/24V 5AWG 4.51 2500W/12V 2AWG 6.67 2500W/24V 4AWG 20 (10*2) 5.05 3000W/12V 2AWG 6.67 3000W/24V 4AWG 20 (10*2) 5.05 3500W/12V 1/0AWG 50(25*2) 9.42 3500W/24V... -
Page 17: Fuse Parameters
Fuse Parameters Specifi- Specifi- Specifi- QTY 24V QTY 48V cation cation cation 300W 35A32V 300W 20A32V 300W 10A32V 500W 40A32V 500W 20A32V 500W 10A32V 1200W 40A32V 1200W 20A32V 1200W 10A32V 1700W 40A32V 1700W 20A32V 1700W 10A32V 2000W 40A32V 2000W 20A32V 2000W 10A32V 2500W 40A32V... -
Page 18: Fuse Replacement Instructions
Replace all damaged fuses with new ones and insert them. NOTE: If you need to perform（do）this operation, please contact us via official email address (support-us@mwxne.com) in advance. Our customer service team will provide you with professional guidance and operation videos. -
Page 19: Components Overview
Components Overview Panel Introduction MWP600W/1200W ① Indicator Light ⑥ QC 3.0 24W USB Port (red-fault, green-normal) ⑦ PD 60W Type-C Port ⑧ AC Socket ② Power Switch ③ Remote Control Jack ⑨ Cooling Fan ④ Earth Wire ⑩ Positive Terminal ⑪... - Page 20 MWP3000W ① Indicator Light ⑥ QC 3.0 24W USB Port (red-fault, green-normal) ⑦ PD 60W Type-C Port ⑧ AC Socket ② Power Switch ③ Remote Control Jack ⑨ Cooling Fan ④ Earth Wire ⑩ Negative Terminal ⑪ Positive Terminal ⑤ QC 3.0 18W USB Port MWP3500W/4000W/5000W/6000W ①...
-
Page 21: Lcd Display Particulars

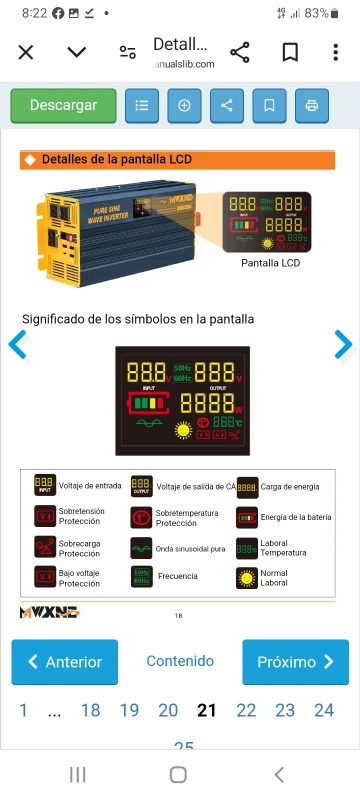

LCD Display Particulars LCD Display Symbol Meanings on Display Input Voltage AC Output Voltage Loads Power Over Voltage Over Temperature Battery Power Protection Protection Working Overload Pure Sine Wave Temperature Protection Normal Low Voltage Frequency Working Protection... -
Page 22: Protection Mechanisms
Protection Mechanisms 7. デジタルディスプレイとリモコンの説明 SOFT START TECHNOLOGY Our inverters feature soft-start technology designed to protect equipment from supplying too much AC power at the same time. The soft-start feature gradually increases the incoming AC voltage, which is especially important for equipment with inductive loads or electric motors. Six Protections Over Temperature short Circuit... -
Page 23: Remote Control Function
Protection Mechanism Current & Voltage Range Table 12VDC 24VDC 48VDC Input Voltage 9.5V-15.5V 20V-31.5V 39.5V-60V Input Voltage Range 10±0.3V 21±0.3V 40.5±0.5V Undervoltage Alarm Value 9.5±0.3V 20±0.3V 39.5±0.5V Undervoltage Protection Value 12±0.3V 24±0.3V 48±0.5V Undervoltage Recovery Value 15.5±0.3V 31.5±0.3V 60±0.5V Overvoltage Protection Value Overvoltage Recovery Value 15±0.3V 30±0.3V... - Page 24 The specific steps for using the wired remote control: 1. Connect the inverter to the battery. 2. Turn on the switch on the inverter panel. 3. Plug the remote control to enable remote functionality. Please note of the following when using the wired remote control: All buttons need to be pressed and held for 2-3 seconds to operate.
-
Page 25: Operation Method
Operation Method CAUTION Before making any electrical connections, ensure that both the inverter and the connected appliance’s power switches are turned OFF. When switching off the inverter, make sure to turn off all connected electronic devices first. Even when the inverter is off, its capacitors may be charged, so to modify the circuitry or perform any maintenance work on the inverter, always ensure to disconnect both the DC and AC terminals. -
Page 26: Connection On The Cigarette Lighter Side
Connection on the cigarette lighter side Insert the cigarette lighter plug of this product into the cigarette lighter socket of the vehicle, and the power will be turned on automatically. For most typical cars, the maximum available power is about 100W to 150W. NOTE: If you use an output that exceeds the allowable range, the fuse on one side of the car may blow. - Page 27 CAUTION The battery provides DC input voltage to the inverter, and its rated voltage should match the rated input voltage of the inverter. Any voltage exceeding the inverter input voltage range may cause inverter overload or damage. In addition to voltage, the capacity of the battery (measured in amp-hours) should match the power consumption of the load.
-
Page 28: Product Specification
Product Specification MW300 MW600 MW1200 MW1700 MW2000 MW2500 Model Number 12/24/48 12/24/48 12/24/48 12/24/48 12/24/48 12/24/48 Rated Power 300W 600W 1200W 1700W 2000W 2500W Peak Power 600W 1200W 2400W 3400W 4000W 5000W Input Voltage 12/24/48VDC 12/24/48VDC 12/24/48VDC 12/24/48VDC 12/24/48VDC 12/24/48VDC Output Voltage 110V AC±5%... - Page 29 MW3000 MW3500 MW4000 MW5000 MW6000 MW8000 12/24/48 12/24/48 12/24/48 12/24/48 12/24/48 24/48 3000W 3500W 4000W 5000W 6000W 8000W 6000W 7000W 8000W 10000W 12000W 16000W 12/24/48VDC 12/24/48VDC 12/24/48VDC 12/24/48VDC 12/24/48VDC 12/24/48VDC 110V AC±5% PD60W(5V3A,9V3A,12V3A,15V3A,20V3A) QC3.0 24W(4V3.6A,5V3.4A,9V2.5A,12V2A) ,QC3.0 18W*2(5V3.4A,9V2A,12V1.5A) 15A*2 TB-2503 15A*3 TB-2503 15A*3 TB-2503 15A*3 TB-2503 15A*3 TB-2503...
-
Page 30: Troubleshooting
Troubleshooting Protection Errer Code Error Meaning Reason Solution buzz sound Other power source Output mistakenly Check if there are other Long- connected with the connected to a live power power sources connected medium-short output cables device to the output cable buzz Check the circuit and load Output Short Circuit... -
Page 31: Maintenance Precautions
Maintenance Precautions support-us@mwxne.com Our official email address is You can also contact us through your Amazon order. If your issue is complex, it is recommended to reach out to our official email address, and our technical department will directly respond to you. If you are interested in our other products (inverters with other functions or products not displayed on Amazon), you can also contact us through this email address.
