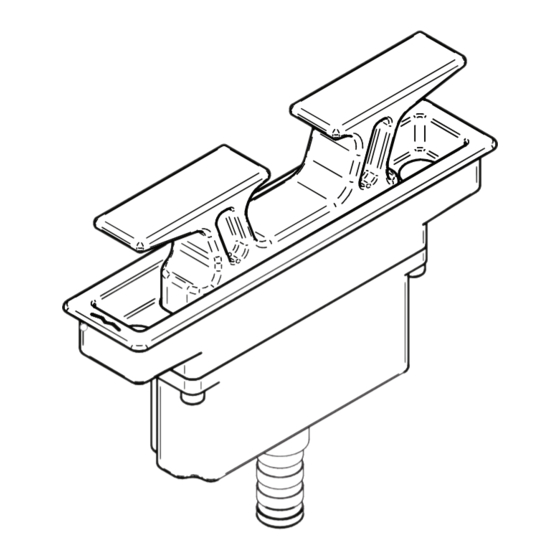

Flush cleat: FD200, FD240, FD340, FD400, FD200X, FD240X, FD340X, FD400X.
CAUTION. Read all instructions carefully before installing and using this product.
1. REQUIRED FOR INSTALLATION.
Template
Polyurethane marine sealant
Installation instruction
Flush cleat. Aluminium / Stainless steel
Drill
Anti-corrosion lubricant
rev. 10-2018
Non acidic degreaser
Threadlocker
| P. 01 |
Advertisement
Table of Contents
Summary of Contents for seasmart FD200
- Page 1 | P. 01 | rev. 10-2018 Installation instruction Flush cleat. Aluminium / Stainless steel Flush cleat: FD200, FD240, FD340, FD400, FD200X, FD240X, FD340X, FD400X. CAUTION. Read all instructions carefully before installing and using this product. 1. REQUIRED FOR INSTALLATION. Non acidic degreaser...
- Page 2 Type A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) FD200 / FD200X Ø 10 FD240 / FD240X Ø 10 FD340 / FD340X Ø 12 FD400 / FD400X Ø 16,5 2. CLEAT PREPARATION Carefully clean the cleat and apply a small bead of marine sealant.
- Page 3 Place the cleat into the housing, then place the screws (we recommend to use anti-corrosion lubricant into the screw holes). Use washers between screws and nuts and tighten firmly. Type Screw (mm) FD200 / FD200X ( 1 ) FD240 / FD240X FD340 / FD340X FD400 / FD400X...
- Page 4 | P. 04 | rev. 10-2018 Installation instruction Flush cleat. Aluminium / Stainless steel 4. DRAINAGE Connect the hose fitting into the cleat base and connect the drain pipe. Draining tube...
