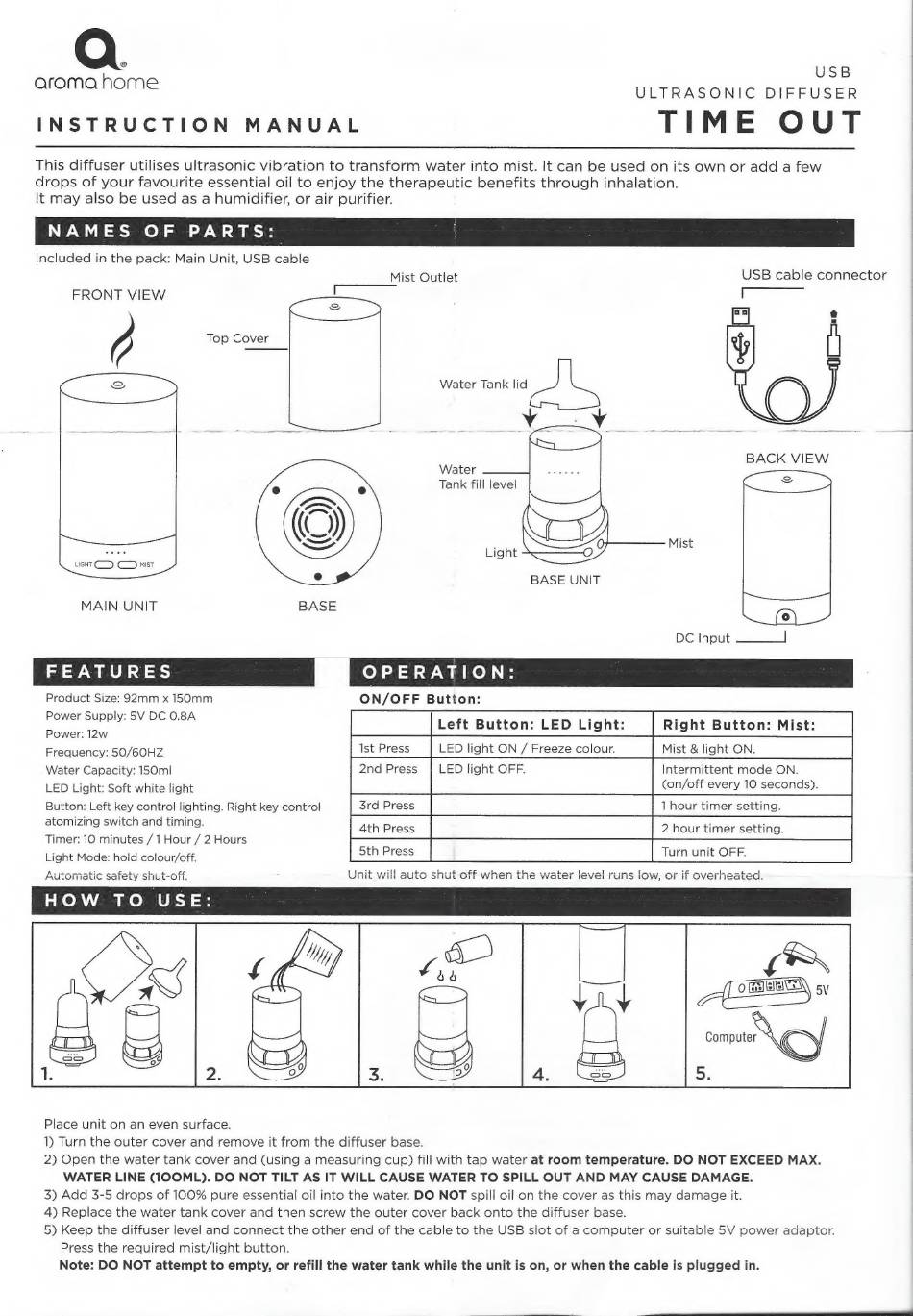

aroma home TIME OUT Instruction Manual

INSTRUCTION MANUAL TIME OUT
This diffuser utilises ultrasonic vibration to transform water into mist. It can be used on its own or add a few
drops of your favourite essential oil to enjoy the therapeutic benefits through inhalation.
It may also be used as a humidifier, or air purifier.
NAMES OF PARTS:
Included in the pack: Main Unit, USB cable
Mist Outlet USB cable connector
-———
FRONT VIEW
Top Cover
BACK VIEW
Water
Tank fill level
Mist
@ BASE UNIT
MAIN UNIT BASE
A Le
DC Input —___]
a. 7
FEATURES OPERATION:
Product Size: 92mm x 150mm ON/OFF Button:
Power Supply: 5V DC 0.8A
Power: 12w
Frequency: 50/60HZ
Water Capacity: 150ml
LED Light: Soft white light
Button: Left key control lighting. Right key control
atomizing switch and timing.
Timer: 10 minutes / 1 Hour / 2 Hours
Light Mode: hold colour/off.
Automatic safety shut-off. Unit will auto shut off when the water level runs low, or if overheated.
HOW TO USE:
Computer
5.
Place unit on an even surface.
1) Turn the outer cover and remove it from the diffuser base.
2) Open the water tank cover and (using a measuring cup) fill with tap water at room temperature. DO NOT EXCEED MAX.
WATER LINE (100OML). DO NOT TILT AS IT WILL CAUSE WATER TO SPILL OUT AND MAY CAUSE DAMAGE.
3) Add 3-5 drops of 100% pure essential oil into the water. DO NOT spill oil on the cover as this may damage it.
4) Replace the water tank cover and then screw the outer cover back onto the diffuser base.
5) Keep the diffuser level and connect the other end of the cable to the USB slot of a computer or suitable 5V power adaptor.
Press the required mist/light button.
Note: DO NOT attempt to empty, or refill the water tank while the unit is on, or when the cable is plugged in.
