Summary of Contents for Novasina nLink+ IP MR

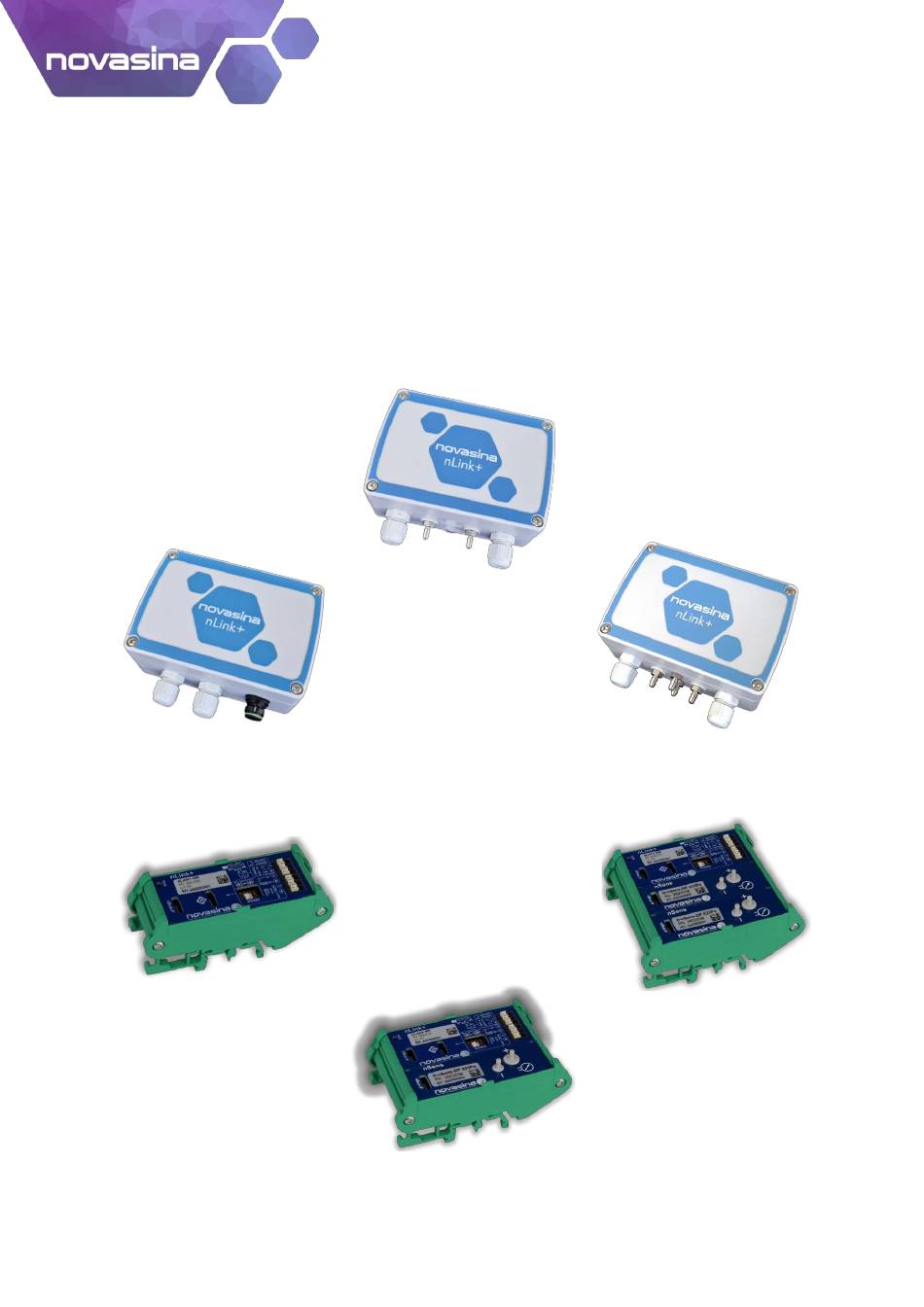

- Page 1 Operation Manual nLink+ IP & EC Modbus Transmitter Novasina AG, Neuheimstrasse 12, 8853 Lachen, Switzerland Telephone +41 55 642 67 67 Fax +41 55 642 67 70, E-Mail: sales@novasina.ch, www.novasina.com...
-
Page 2: Table Of Contents
3.1. Technical Data nLink+ IP MR ..................4 3.2. Technical Data nLink+ EC MR ................... 5 3.3. Technical Data nLink+ IP MR dp ................6 3.4. Electrical Installation ....................7 3.5. Wiring Diagram ......................7 Modbus – Map ......................... 8 4.1. -
Page 3: General
The instrument contains ESD-sensitive parts. Please follow the indicated safety measures. • Use only original Novasina accessories and spare parts. • Without any written approval by Novasina no adaptations and modifications shall be undertaken on the instrument. Sept 2023 / DMS 3 / 21... -
Page 4: Product Description
Operation Manual nLink+ IP & EC ModbusRTU Product Description 3.1. Technical Data nLink+ IP MR Name nLink+ IP MR Art-No. 2602224 Power supply 24V DC, Permissible voltage range: 5 to 39V Power consumption <0.5W Display none, values on PC Outputs... -
Page 5: Technical Data Nlink+ Ec Mr
Operation Manual nLink+ IP & EC ModbusRTU 3.2. Technical Data nLink+ EC MR Name nLink+ EC MR Art.-No. 2602240 Power supply 24V DC, Permissible voltage range: 5 to 39V Power consumption <0.5W Display none, values on PC Outputs ModbusRTU (all climate values and diagnostic information as described in the Modbusregister) Status LED LED for power On, LED for nSens connected... -
Page 6: Technical Data Nlink+ Ip Mr Dp
Operation Manual nLink+ IP & EC ModbusRTU 3.3. Technical Data nLink+ IP MR dp nLink+ IP MR A / MR AA MR B / MR BB MR C / MR CC Art.-No. 2602225 / 2602226 2602230 / 2602231 2602238 / 2602239... -
Page 7: Electrical Installation
Operation Manual nLink+ IP & EC ModbusRTU 3.4. Electrical Installation Wire specification Clamping range 0.13 - 1.5mm (Push-in Spring clip) Wires: w. plastic collar ferrule DIN 46228/4: 0,25 - 0.75 mm² w. wire end ferrule DIN 46228/1: 0,25 - 1.50 mm² Solid, min. -
Page 8: Modbus - Map
Operation Manual nLink+ IP & EC ModbusRTU Modbus – Map 4.1. Register overview Number of registers Number of Start Addr End Addr last entry EndReg registers 2 Communication parameters 46 Climate data Meas. Point A 146 Climate data Meas. Point B 246 Climate data Meas. - Page 9 Operation Manual nLink+ IP & EC ModbusRTU Register Parameter Data type Address Climate data Meas. Point A 30026 Temperature [°C] Float 32 (CDAB) 40026 30028 Temperature [°F] Float 32 (CDAB) 40028 30030 Rel humidity [%RH] Float 32 (CDAB) 40030 30032 Abs.
- Page 10 41002 channel 1 u_degreeC, // 1: °C u_degreeF, // 2: °F u_kelvin, // 3: K u_dVal, // 4: novasina D(x)val u_relHum, // 5: %RH u_absHum_m, // 6: g/m³ u_absHum_i, // 7: gr/ft³ u_mixRat_m, // 8: g/kg u_mixRat_i, // 9: gr/lb...
- Page 11 Operation Manual nLink+ IP & EC ModbusRTU Register Parameter Data type Address 60001 Slave ID (1..247), Signed integer 16 (AB) Warning: 2, 3 Factory settings: 247 "It is of great importance to ensure at the time of the procedure of devices addressing, 30001 that there is not two devices with the same 40001...
- Page 12 Operation Manual nLink+ IP & EC ModbusRTU Register Parameter Data type Address (will never be changed) The identifier is Novax 0x0001/00 ModbusAdapter 3 36876 Sensor Software ASCII String 0 terminated, 11 4 36876 Version Registers Novax 0x0001/01 3 36887 Sensor Profil GUID GUID U8[16], 8 Registers 4 36887 Device identifier...
-
Page 13: Slave Id
Operation Manual nLink+ IP & EC ModbusRTU 4.3. Slave ID • The device can always be addressed via ID 247, regardless of the ID actually set. This ID must therefore not be used by any other device on the bus! •... -
Page 14: Initial Operation
4 GB free hardware memory • Software Adobe Acrobat Reader The software can be obtained on the website www.novasina.ch or send an email to sales@novasina.ch. Software is license free (Freeware), the special USB configuration cable with adapter is necessary (see accessories) -
Page 15: Configuration With Nsoft-Act-T
Operation Manual nLink+ IP & EC ModbusRTU Configuration with nSoft-ACT-T Connect the USB cable on the PC and the nLink+. Open the software by clicking on the Icon after installation. The nLink+ does not require additional power supply. The USB connector is sufficient for configuration and sensor connection. - Page 16 Operation Manual nLink+ IP & EC ModbusRTU 1: Activate password protection, requires a password set (2) 2: Set Password: the password is stored directly on the transmitter. 3: Read Data: Read configuration from the nLink+ 4: Write Data: Store the configuration on the nLink+ 5: Details from the nLink+, such as serial numbers, measured values in real time etc.
- Page 17 Operation Manual nLink+ IP & EC ModbusRTU New configuration Connect your nLink+ with the configuration cable to your PC. Connect the nSens as well. NLink+ is recognized. Register «i» displays additional information about the transmitter. Click on «Search Sensor» Connected nSens probe will be recognized and displayed with the serial number.
- Page 18 Operation Manual nLink+ IP & EC ModbusRTU « Manual Values» Program fixed values for Simulation and loop checks. Choose Override mode and “Write Data” for activation. As long as manual values are active the sensor values are not displayed. Beware: Deactivate override after completing the checks to receive real time data from the nSens again.
-
Page 19: Calibration / Verification Of Measuring Values
These humidity generators are easy to use and reusable multiple times. For the verification of the whole measurement range Novasina offers a set with 5 SAL-SC including carrying case and probe adapter rings. For an optimal calibration and/or verification the room temperature should be between 15...30°C and should not vary more than +/-0,2°C. -
Page 20: Accessories Nsens Ht
15°... 30°C: Reusable humidity standards SAL-SC in a case 11.3 ..11.3% rh / 15..30°C delivered incl. the needed adapters for Novasina 33.3 ..32.4% rh / 15..30°C probes and factory calibration certificates. 55.9 ..51.4% rh / 15..30°C Case set contains: 75.6 .. - Page 21 Operation Manual nLink+ IP & EC ModbusRTU Dimension : Out.diameter 30 mm Adapter SAL-SC for nSens probes Inner diam.13 mm Plastic adapter for humidity standards. Used for diameter reduction and radial sealing around the Weight : nSens probe with diameter 13mm. With integrated green coloured rubber sealing ring Material : Thermoplastic resin...
