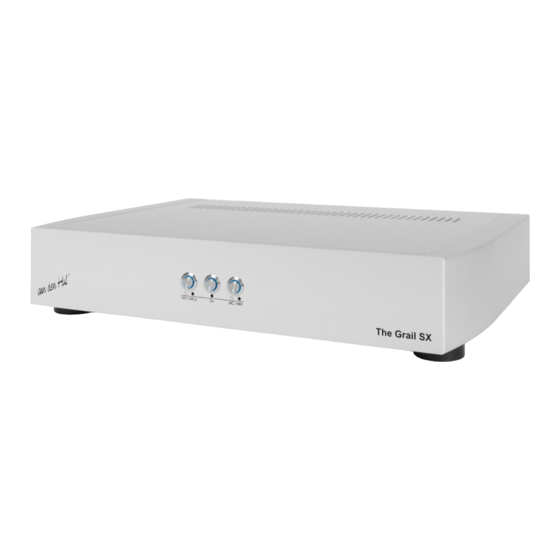

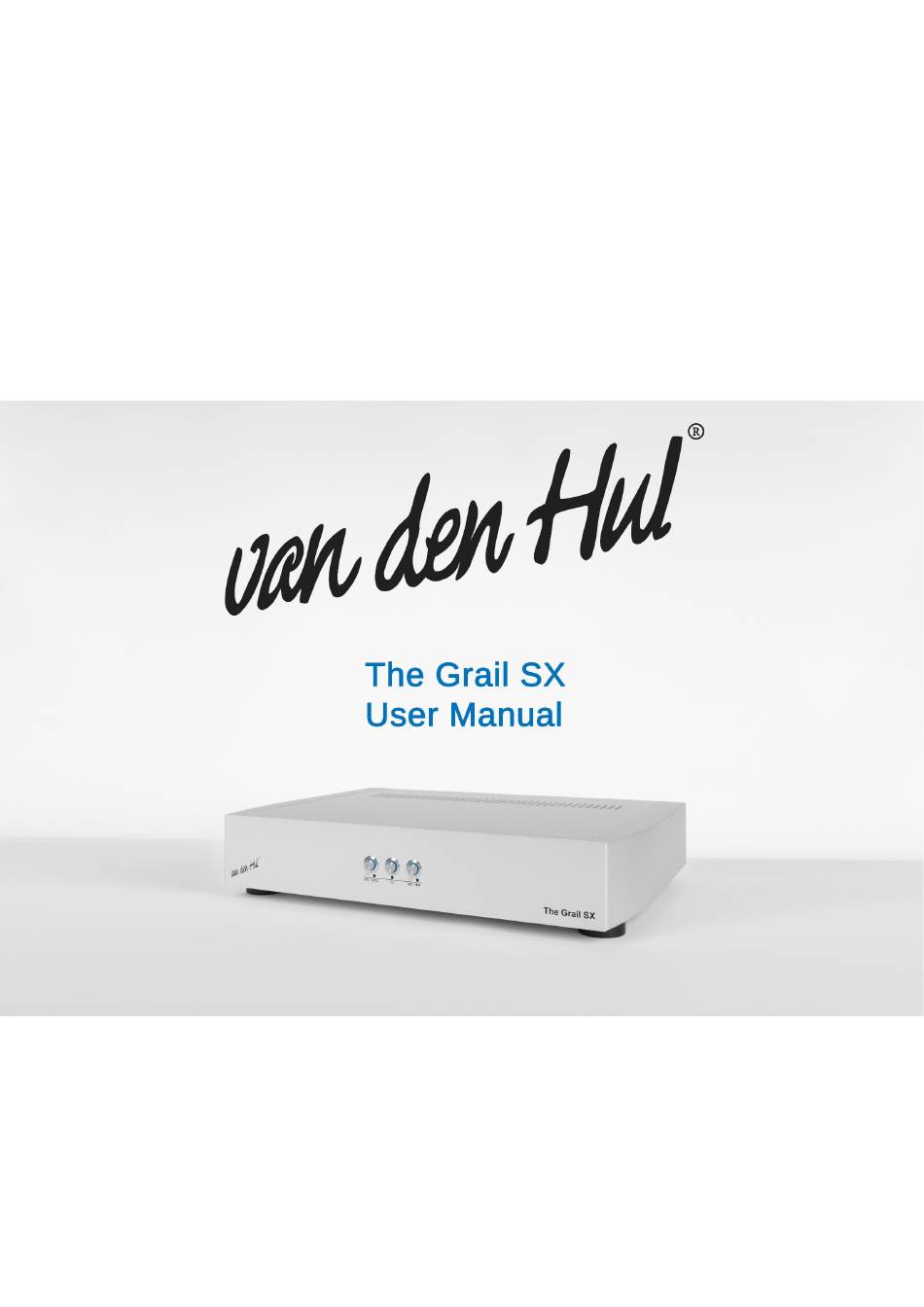

Summary of Contents for van den Hul The Grail SX
-
Page 2: Table Of Contents
INSTALLATION AND USE Overview of the device Connection of the preamplifier Choosing the right input / Impedance matching Level matching 10/11 Some hints Changing power supplies mains voltage PROBLEM SOLVING TECHNICAL SPECIFICATIONS ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“... -
Page 3: Introduction
power supply with Gyrators for each amplifier stage delivers very high noise cancellation the external power supply works with 120V and 240V mains voltage (reversible inside) Designed to provide true high end audio, “The Grail SX” will deliver you outstanding sound quality with nearly every available modern phonograph cartridge. -
Page 4: Safety Precautions
The Grail SX is in conformity with the actual required standards in accordance with 89/336/EWG. ________________________________________________________________________________ ®... -
Page 5: Installation And Use
Items: #4) Ground connector for turntable ground (tonearm, motor-base etc.) #5) DC power supply connector, to connect with the external power supply. ( use no other power supply than the dedicated one for “The Grail SX” ) ________________________________________________________________________________ ® van den Hul... -
Page 6: Overview Of The Device
#2 Fuse holder (Fuse: 2x 0,8A slow acting for 230V mains, and 2x 1,25A for 120Vmains). Voltage selector inside of power supply as a switch #3 Mains power connector for standardized IEC power connector #4 Power supply connector, connect to “The Grail” preamplifier ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“... -
Page 7: Connection Of The Preamplifier
“The Grail”. Save your investment - use the best cables you can afford, e.g. cables from the van den Hul cable line. They will deliver you the best possible sound available at this moment. -
Page 8: Choosing The Right Input / Impedance Matching
In case you use the unbalanced input, put the resistor to the pinhead connectors “LOAD_RA” and “LOAD_LA” on the printed circuit board of the Grail preamplifier. Don't forget to connect resistors for both channels (Resistor on “Load_RA” and “Load_LA”). ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“... - Page 9 50pF input capacitance. So you only have to add the missing part of the recommended total capacitance, given by the cartridge manufacturer. ____________________________________________________________________________ The heart of “The Grail”: the “Coils-Only” deemphasis network ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“...
-
Page 10: Level Matching
Basically: the higher the “dB” figure, the higher the amplification factor and as a result the louder the music signals will be. In general: always set switches equal on both channels ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“... - Page 11 Delivery condition for gain is 60dB (MC) and 40dB (MM), that means DIP switch slider 1 in position “ON” and slider 2 in position “OFF”. ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“...
-
Page 12: Some Hints
Remove the four Philips screws from the top lid and remove the lid. Set the voltage selector switch to the mains voltage at your location (take a look at the pictures). Replace top lid and insert screws and reconnect the power supply to the Grail SX and the wall plug and switch on the power supply. ________________________________________________________________________________ ®... -
Page 13: Problem Solving
If so, replace it with a fuse of the same kind and value. Fuse type: 1A slow acting, size 5x20mm. If this fuse blows up again, please unplug the mains plug and bring the preamplifier and its power supply to an authorized service point for repair. ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“... -
Page 14: Technical Specifications
Input impedance: autom. matching from appr. 10 Ohms up to 400 Ohms Weight: 13,5Kg (appr. 29,8lbs) without the ext. power supplies Size (WxHxL, incl. feet): 475 x 95 x 335mm ______________________________________________________________________________ ________________________________________________________________________________ ® van den Hul Phonograph Preamplifier „The Grail SX“...
