Summary of Contents for DeKo PRO
- Page 1 EN User Manual DEKO TV DIGITAL TV RECEIVER DVB-T2 HEVC DVB-C PRO & PRO 2...

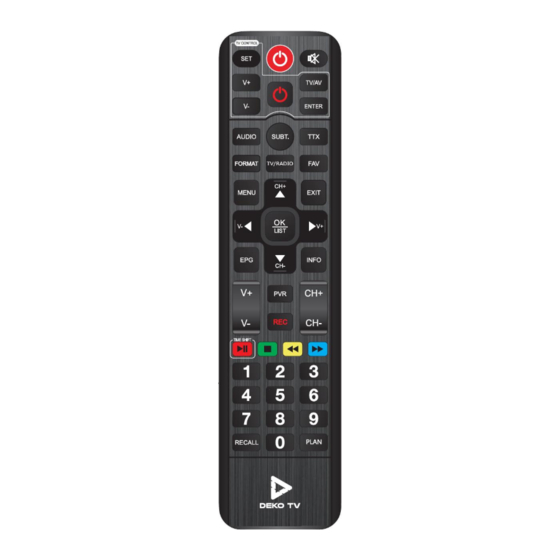

- Page 2 Remote Controller POWER Tuner On/Off. Group of five buttons for programming TV IR buttons TV CONTROL MUTE Switching sound muting on and off. AUDIO Change soundtrack language. SUBT Selecting subtitles when watching films. Switching the teletext on and off. FORMAT Change the aspect ratio.
- Page 3 MEMORY function - controlling the TV set from the DEKO TV remote control With the supplied MEMORY remote control, you can operate both the DEKO TV decoder and the TV set to which it is connected with one remote control.
- Page 4 4. Press the "SET" button on the DEKO TV remote control to complete the pairing mode. Press the SET button to complete the pairing process. You can now use the DEKO TV remote control to turn your TV on and off, for example. Start the process again to assign the remaining buttons.
-
Page 5: Hardware Interface
HDMI output: connect the HDMI port of the TV set using an HDMI cable SCART output: connect the SCART port of the TV set (in case of lack of HDMI port in TV) DEKO TV PRO 2 DEKO TV PRO... -
Page 6: Installation
Installation By default, when there is no TV or radio channels, tuner displays installation start screen. Press the CONTROL KEY [▲ / ▼] to move the motion cursor. Move the cursor to Channel Search and press [OK] to start the automatic channel search. Select: •... - Page 7 Automatic search for free DVB-T2 HEVC terrestrial TV channels will start. Main menu Press the [MENU] key to enter the Main Menu. Press the [◄/►] or [▲ / ▼] key to move the cursor to the desired settings and then the [OK] key to confirm.
- Page 8 Channel Search The default search settings will search for all available DVB-T2 HEVC digital terrestrial TV channels. To set your own channel numbering, described below, the LCN setting should be disabled (Off).
- Page 9 Move the cursor to the desired channel and press [OK]. To carry out multi-channel deletion, you can select more than one channel, and those channels that are marked with a delete sign will be deleted when you press [RED] from the Media Section of the Deko TV remote control.
- Page 10 Move channels Press the [2] Move button on the screen to enter move mode. The selected channel will have a move marker, press [GREEN BUTTON] to select multiple channels, now move the channels to the selected position and then press [OK].To set the list of channels in your own order, disable the LCN setting first.
- Page 11 Channel lock Press the [4] Lock button on the screen to enter channel lock mode. To access this section you need to enter the decoder password, which is set to 000000 by default, which can be changed in the Decoder Menu. Select the channels to be locked and press [OK]. When a channel is locked, you will be prompted to enter the password each time.
-
Page 12: Epg Program Guide
EPG Program Guide Press the EPG shortcut to enter the program guide. Press [OK] to display the EPG information of the channel. In the EPG menu, press [▲ / ▼] to switch the current program if the current program contains EPG information. - Page 13 Double-clicking the [INFO] key will display the full description of the program. Pressing the [INFO] key three times will display the transmission parameters and reception strength of the channel in question.
-
Page 14: Settings Menu
Settings menu Main settings of the decoder Language Set the language for the decoder menu, the language for the two audio tracks, the language for the on-screen subtitles while watching, the language for the teletext and the EPG. - Page 15 AV Settings TV Standard - Resolution Select the optimum (native) resolution for your receiver. The default setting is 1080i@50Hz (FHD@50Hz). OSD Settings Select the transparency of the Menu on the TV channel. Specify the time after which the Menu with program description is to be switched off. Select how you want to switch channels.
- Page 16 Lock control. Enable and disable channel locking by password. Change the current password 000000 to a sequence of numbers of your choice. Press [OK] to change the individual options. Time setting. Select automatic mode for setting the time from the sender. Set the time zone and summer time on and off.
- Page 17 PVR Management. Enable or disable the TIMESHIFT function for recording live programs. The TIMESHIFT function is activated on the remote control with the [RED] button. Timer settings. Selecting the signal output parameter when connecting the decoder to the TV set using the type connector.
- Page 18 Set the On Mode to automatically start the decoder at the set date and time. When entering the You will need an additional Wi-Fi adapter to connect your device to the network, which plugs into the decoder's USB. The USB Deko TV Wi-Fi antenna is not included and is available for separate purchase.
-
Page 19: Software Update
Software update. Download software update file The latest software update files can be found at www.dekoelectronics.com in the "Downloads" tab. Detailed step-by-step instructions for updating the software can also be found there. Uploading software to your decoder Select Software Update from the Main Menu and press [OK]. Select USB update and indicate the path to the software file on the memory stick, then click [OK] to start the update process. - Page 20 IPTV Internet TV Detailed instructions on how to add additional free-to-air channels are available for download at www.dekoelectronics.com Adding channels When the cursor is in the left half of the screen, press [RED] to refresh the list and [GREEN] to display the list of IPTV clouds.
- Page 21 (11) In the event of a defect, the customer may lodge a complaint at the place of purchase. The customer has the right to exchange the equipment for a new one if the DEKO Electronics Service Centre states in writing that the removal of the defect is impossible. The equipment to be replaced should be complete.
- Page 22 Safety and operational recommendations ATTENTION ! READ THIS USER MANUAL CAREFULLY AND FOLLOW ITS INSTRUCTIONS. REMEMBER NOT FOLLOWING THE INSTRUCTIONS VIOLATES YOUR RIGHT TO WARRANTY CLAIMS. Please read this user manual carefully to use the equipment correctly. Please keep this manual to be able to use the instructions and guidance contained therein also in the future.
- Page 23 Location The device should stand on a flat, stable surface, away from other electronic devices such as video players, radio receivers or loudspeakers, from which electromagnetic interference may affect the quality of the reproduced image and sound. When placing the receiver in a lockable rack, we must ensure that there is free space around it, guaranteeing proper ventilation, and in a place with low humidity, away from the sun and other sources of heat.
