Summer Upgrade Kit

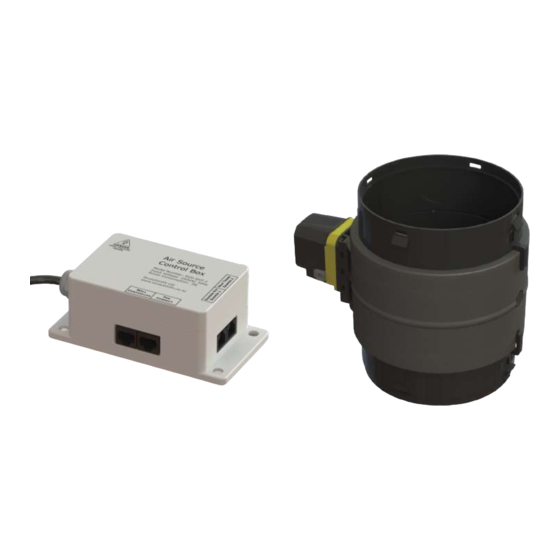

EVOAQ Summer Add-On Kit
Using Air Source Control Box
EVO-SHT-2
Ventilation with Summer Kit
Wiring Connections
Wall Controller
For more information, visit www.evoaq.co.nz
Air Source
DANGER
HIGH VOLTAGE
INSIDE
Control Box
Model Number: EVO-SHT-2
Input Voltage: 240VAC 50Hz
Power Consumption: 3W
EvolutionFX Ltd
www.evolutionfx.co.nz
WALL
CONTROLLER
10M
NETWORK
CABLE
FAN
CONNECT
1M
NETWORK
CABLE
Ventilation Fan
EVOAQ
Air Quality Innovation
DAMPER
CABLE
Advertisement
Table of Contents
Summary of Contents for EVOAQ EVO-SHT-2
- Page 1 Air Source DANGER HIGH VOLTAGE INSIDE Control Box DAMPER Model Number: EVO-SHT-2 Input Voltage: 240VAC 50Hz CABLE Power Consumption: 3W EvolutionFX Ltd www.evolutionfx.co.nz Motor Damper WALL CONTROLLER CONNECT NETWORK NETWORK CABLE CABLE Ventilation Fan Wall Controller For more information, visit www.evoaq.co.nz...
- Page 2 System Set-up Motor Damper (ceiling air) Ventilation Filter Box Nude Ducting Inlet Grille (outside air) For further assistance and queries related to this product, please contact EvolutionFX NZ Limited Email: info@evolutionfx.co.nz Phone: +64 9 558 5590 For more information, visit www.evoaq.co.nz...
