POD-300 DIGITAL DISPLAY
PARTS LIST
1

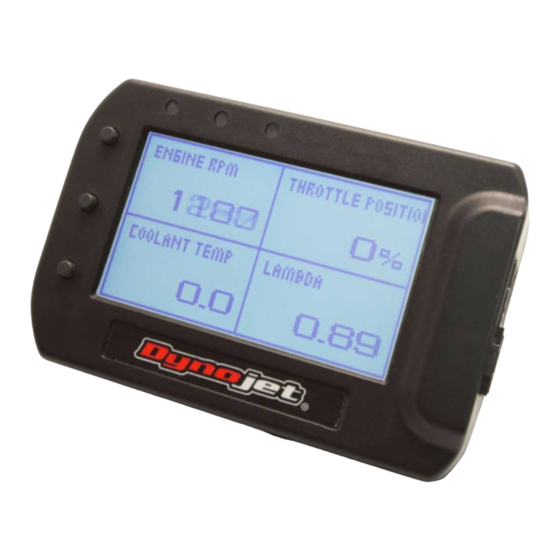

POD-300
1
CAN CABLE
1
USB CABLE
DO NOT OPERATE DEVICE WHILE DRIVING. PERFORM
ALL ADJUSTMENTS OR CHANGES WHILE VEHICLE IS
STOPPED. CHANGING A SETTING WHILE UNDER WAY CAN
INTERFERE WITH YOUR ATTENTION TO THE ROADWAY.
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
2
VELCRO
2
DYNOJET DECALS
1
ALCOHOL SWAB
IPOD-300.04
Advertisement
Related Manuals for Dynojet POD-300
Summary of Contents for Dynojet POD-300
- Page 1 POD-300 DIGITAL DISPLAY PARTS LIST POD-300 VELCRO CAN CABLE DYNOJET DECALS USB CABLE ALCOHOL SWAB DO NOT OPERATE DEVICE WHILE DRIVING. PERFORM ALL ADJUSTMENTS OR CHANGES WHILE VEHICLE IS STOPPED. CHANGING A SETTING WHILE UNDER WAY CAN INTERFERE WITH YOUR ATTENTION TO THE ROADWAY.
- Page 2 AMP style pattern. Attach the supplied cable to the port on the side of the POD-300 and run the other end of the cable to an open CAN port of the PCV/6 network. Note: This can connect to the PCV, PC6, Ignition Module, or SFM;...
-
Page 3: Gauge Setup
Log selected channels and view them later in .csv format. The POD-300 has four slots of internal memory you can log to. Once the slot is full, logging will automatically stop. If a slot is full, the POD-300 will automatically start logging to a new slot on the next initialization. If you START/STOP a log and the slot is not full, on your next log initialization the POD-300 will write to a new slot. - Page 4 For example, if using a value of .95, the WB2 will emulate a narrowband voltage signal that switches to rich if the Lambda reading is lower than .95, and lean if the Lambda reading is higher than .95. 4 POD-300 INSTALLATION GUIDE IPOD-300...
-
Page 5: Display Setup
Select Mode to fl ip the black and white mode of the screen. USB MODE Allows the POD-300 to be put into a PC link mode while the unit is connected to a running vehicle. This allows you to pull the logs while the vehicle is running. - Page 6 EXPORTING AND VIEWING LOG FILES The POD-300 software in Power Core allows you to view, export, and delete logs from the POD-300. This software also allows you to update the fi rmware if needed. Go to www.dynojet.com. From the top navigation menu, select Support>Downloads.
- Page 7 TRUTH TRUTH IN IN PERFORMANCE PERFORMANCE 800-992-4993 - DYNOJET.COM © 2014-2024 DYNOJET RESEARCH ALL RIGHTS RESERVED...
