User Manual

BluMax™

User Manual

Version 1.0a

Table of Contents

Need help?

Do you have a question about the BluMax and is the answer not in the manual?

Questions and answers

Summary of Contents for Suzohapp BluMax

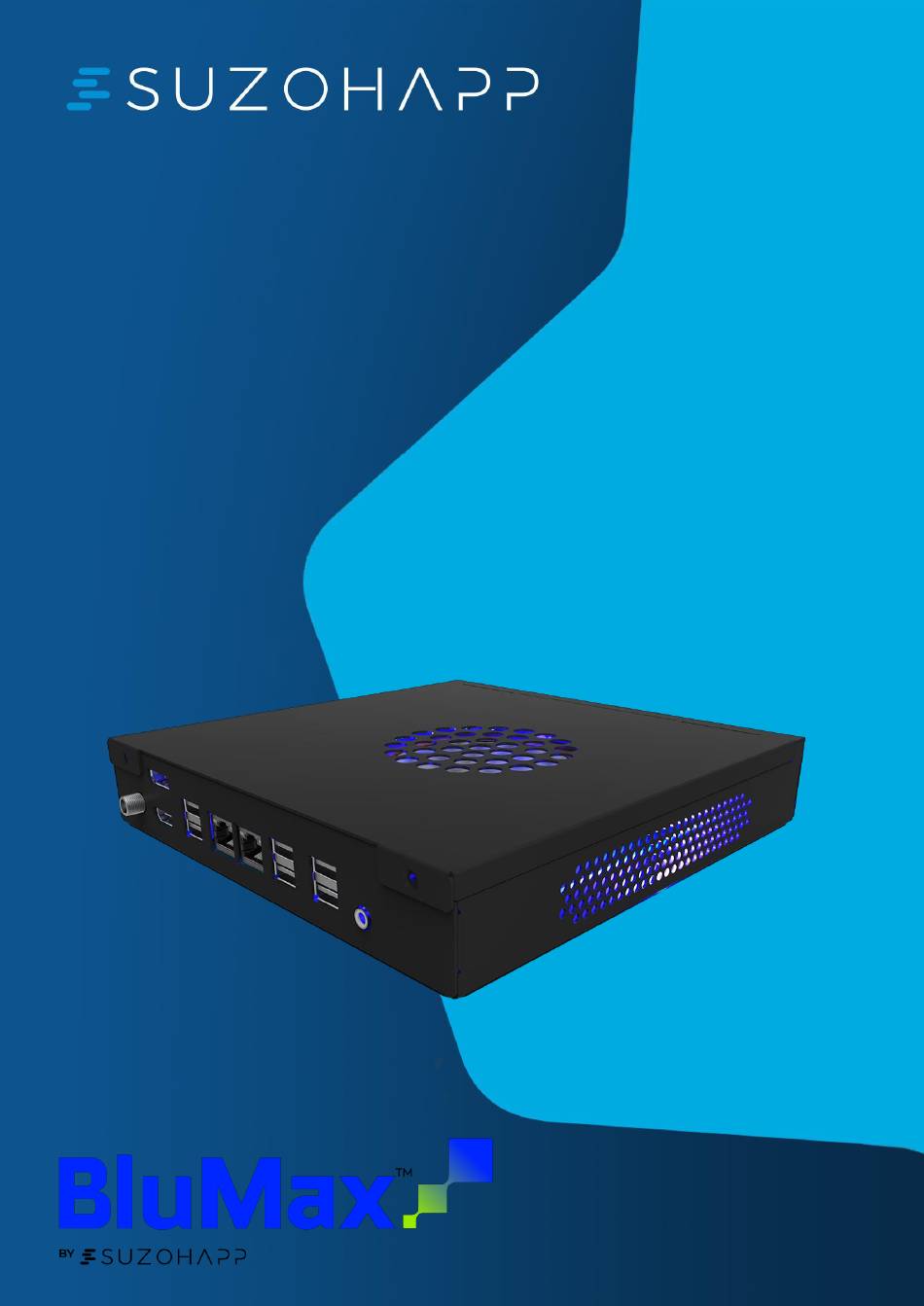

Page 1 User Manual BluMax™ User Manual Version 1.0a...
Page 2: Table Of Contents
User Manual Contents REVISION .......................... 4 PREFACE ........................... 5 Copyright ..........................5 Acknowledgement ......................5 Warranty ..........................5 Declaration of conformity ....................6 Technical support ....................... 6 INTRODUCTION ......................... 7 Product overview ........................ 7 Safety Precautions ......................8 Hardware Specification ....................... 9 Appearance ........................
Page 3 User Manual Save & Exit ........................31 MAINTENANCE ........................ 32 Memory installation ......................32 M.2 2230 and M.2 2280 card installation ................ 33 Battery change ........................35 MOUNTING ........................36 SSD/RAM TYPES ......................37 CONNECTOR & JUMPER SETTINGS ................... 38...
Page 4: Revision
User Manual REVISION Revision Date Description V0.0 20220330 First Release V1.0 20230130 TPM2.0 (Optional)
Page 5: Preface
PREFACE Copyright This document is released and copyrighted are reserved by SUZOHAPP, Inc. No parts of this document may be copied, reproduced by mechanical, electronics or other means in any form, for any purpose, without prior authorization by SUZOHAPP, Inc.
Page 6: Declaration Of Conformity
Technical support SUZOHAPP is committed to providing the best support and service for our customers, which can help customer implement and use SUZOHAPP’s products easily. We suggest that you download the latest documentation, utilities and drivers available for your operating system. You can contact your local sales...
Page 7: Introduction
4.0 world and gaming PC. You can expect scalable Comet Lake processors up to 8 cores, and common industrial features. BLUMAX with DC 12V input, 2 DP, 2 GbE LAN, 6 USB3.2 Gen1.
Page 8: Safety Precautions
User Manual Safety Precautions Warning note This symbol indicates hazards that could lead to personal injury. There are three signal words indicating the severity of a potential injury. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
Page 9: Hardware Specification
User Manual Hardware Specification Model Name BLUMAX Intel® Core™ i3-10100TE Processor (4C/8T, 6M Cache, up to 3.6 GHz) Intel® Core™ i5-10500TE Processor (6C/12T, 12M Cache, up to 3.7 GHz) Intel® Core™ i7-10700TE Processor (8C/16T, 16M Cache, up to 4.4 GHz) Chipset Intel®...
Page 10: Appearance
Interface USB 3.2 Gen1 BLUMAX core computing part provides six USB Type-A 3.2 Gen1 to connect external device such as mouse, keyboard or external storage device. Two ports are USB 3.1 utilize a blue connector. DP (Display Port): This port connects BLUMAX to external digital display with a DP1.2++ connector...
Page 11: Ethernet Lan Port
Data activity Power Input A DC Jack-3 5.5x2.5mm W/Lock is provided for connecting power to the BLUMAX. BLUMAX support one M.2 2280 M Key (PCIe x4 & SATA) and one M.2 2230 E Key (USB2.0 only) on the main board.
Page 12: Bios Default Setting
User Manual BIOS Default Setting The Basic Input/Output System (BIOS) is a program that provides a basic level of communication between the processor and peripherals. In addition, the BIOS also contains codes for various advanced features. The default settings that work well for most configurations, most users do not need to use the BIOS setup program.
Page 13 User Manual...
Page 14: Configuration
User Manual Configuration Description System Date This is current date setting System Time This is the current time setting. The time is maintained by the battery when the device is turned off. Configuration Detail system configuration information, user can change configuration parameters in configuration, include CPU, Chipset, LAN, Graphics, PCI/PCIE, USB, Power Control, TPM, Super I/O, and H/W monitor.
Page 15: Cpu Configuration
User Manual CPU Configuration User User can change CPU configuration parameters. Configuration Description Active Processor Cores Number of cores to enable in each processor Hyper-Threading Enable/Disable Hyper-Threading Boot performance mode Select the performance state that the BIOS will set before OS handoff, with options: Max Non-Turbo performance/Max Battery/Turbo Performance Intel Virtualization...
Page 16: Chipset Configuration
User Manual Chipset Configuration Configuration Chipset feature Configuration Description VT-d Enable/Disable VT-d support Above 4GB MMIO BIOS Enable/Disable Above 4GB MMIO BIOS Support HD-Audio Enable/Disable HD-Audio support Port 80h Redirection Control where the Port 80h cycles are sent ME FW Image Re-Flash Enable/Disable ME FW Image Re-Flash AMT Configuration Configure Intel(R) Active Management Technology Parameters...
Page 17: Graphics Configuration
User Manual Graphics Configuration Configuration graphics settings. Configuration Description Primary Display Use this item to select Primary Display Internal Graphics Use this item to select Internal Graphics DVMT Pre-Allocated Select DVMT Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device Select DVMT Total Graphic Memory size used by the DVMT Total Gfx Mem Internal Graphics Device...
Page 18: Power Control Configuration
User Manual Power Control Configuration System power control configuration parameters. Configuration Description Enable Hibernation Enable/Disable System ability to hibernate (OS/S4 Sleep State). This option may be not effective on some OS’s. Select the highest ACPI sleep state the system will enter when ACPI Sleep State the SUSPEND button is pressed Restore AC Power Loss...
Page 19: Pci/Pcie Configuration
User Manual PCI/PCIE Configuration...
Page 20 User Manual...
Page 21 User Manual PCI Express setting Configuration Description PCI Express root Port Control the PCI Express Root Port 5/11/12. Auto to disable unused root port automatically for the most optimum power savings. Enable: Enable PCIe root port Disable: Disable PCIe root port ASPM N Set the ASPM Level: Force L0s –...
Page 22: Lan Configuration
User Manual LAN Configuration Configuration on board LAN device Configuration Description Launch UEFI PXE ROM Enable/Disable UEFI PXE ROM...
Page 23: Sata Configuration
User Manual SATA Configuration SATA configuration setting Configuration Description Port 0/1 Enable / Disable SATA port Hot Plug Enable/Disable Hot Plug support...
Page 24: Usb Configuration
User Manual USB Configuration USB configuration setting Configuration Description USB port # Enable / Disable USB port. Once disabled, any USB devices plug into the connector will not be detected by BIOS or OS. Legacy USB support Enable/Disable Legacy USB support. Auto option disables legacy support if no USB devices are connected.
Page 25: Super I/O Configuration
User Manual Super I/O Configuration System super IO chip parameters Configuration Description Watch Dog Timer Enable/Disable watch dog timer...
Page 26 User Manual System super IO chip parameters Configuration Description Module Serial Port 1 Enable/Disable Serial Port 1...
Page 27: H/W Monitor
User Manual H/W Monitor Configuration Description Smart Fan1 Function Enable/Disable CPU Smart Fan Smart Fan2 Function Enable/Disable System Smart Fan...
Page 28: Serial Port Console Redirection
User Manual Serial Port Console Redirection Serial Port Console Redirection Configuration Description Console Redirection Enable/Disable COM0 Console Redirection...
Page 29: Security
User Manual Security Setup the security and check password when enter setup screen or when system power on. Configuration Description Password check mode Check password when enter setup screen (Setup) Administrator Password Setup Administrator Password User Password Setup User Password...
Page 30: Boot
User Manual Boot System boot setting and boot order priorities Configuration Description Setup Prompt Timeout Sets the number of seconds before the setup activation key is launched, with 65535(0xFFFF) for indefinite wait Bootup NumLock State Select the keypad Number Lock states Full Screen LOGO Enables or disables quiet boot option and full screen logo Boot mode select...
Page 31: Save & Exit
User Manual Save & Exit Configuration Description Save Changes and Reset Reset the system after saving the changes Discard Changes and Resets system setup without saving any changes Reset Restore defaults Restore/load default values for all the setup options Launch EFI shell from Attempts to launch EFI shell application from one of the available filesystem device filesystem devices...
Page 32: Maintenance
 SO-DIMM DDR4 has 260-pin and two notches which match the onboard SO- DIMM socket. Refer to BLUMAX for memory specific details.  Handle your new memory module carefully; do not flex or bend it. Always grasp the module by its edges.
Page 33: M.2 2230 And M.2 2280 Card Installation
M.2 2230 and M.2 2280 card installation NOTE: expansion card may be various for different model, please check specification for each model. The BLUMAX can be disassembled and then install the additional storage, module, etc. by M.2 2230 slot and M.2 2280.
Page 34 User Manual  Handle your module carefully; do not flex or bend it. Always grasp the module by its edges.  Module and the expansion socket are keyed. A small plastic bridge in the socket must align with those notches in the module. The keyed bridge and notch ensure that the module can be plugged into the socket into the socket one way only.
Page 35: Battery Change
User Manual Battery change 1. Purchase the CMOS battery kit by below P/N from SUZOHAPP 2. Change and replace the battery kit. Model Name Part Number Description Battery kit B3600360 CMOS Battery kit, Coin manganese dioxide lithium battery (CR2032X), 220mAh Blue W/Wire 10.0CM...
Page 36: Mounting
User Manual MOUNTING 1. Secure Mounting Bracket by installing 4XM4 screws appropriate for mounting surface. 2. Put the system into the latch as below: 3. Use the screw to fix the system.
Page 37: Ssd/Ram Types
User Manual SSD/RAM TYPES SSD (M.2 2280) Size Description 128GB 128GB M.2 2280, SATA3 IA215SQ-L, SanDisk 3D TLC BiCS4, WARIS Memory (DDR4 SO-DIMM) Size Description (GP)DDR4 VLP SO-DIMM/2400 DRAM Module, 8GB, 1Gx8, Samsung, WARIS...
Page 38: Connector & Jumper Settings
User Manual CONNECTOR & JUMPER SETTINGS Jumper Function List The jumper settings are schematically depicted in this manual as follows: Jumper setting J1: DC 12V Power Input Connector (DC Jack/2.5mm) J2: Audio Jack Connector (Mic-in/Line-out) J3: Display Connector (DP x2) J4: LAN2 Connector (RJ45)
Page 39 User Manual J5: LAN1 Connector (RJ45) J9: Audio Jack Connector (2x4 Pin Header/2mm) J14: PCIex16 Slot Connector J15: SMBus Connector (1*5 Pin cut Pin 2 Header/2.54mm) J16: M.2 Key-E 2230 Connector J19: DDR4 SoDIMM Channel A Socket J20: USB 2.0 Port 7~8 Connector (2*5 Pin cut Pin 9 Header/2.54mm) J21: GPIO Connector (2*5 Pin Header/2.54mm) J22: DDR4 SoDIMM Channel B Socket J23: System FAN Connector (1x3 Pin Header Wafer/2.54mm)
Page 40 User Manual J9 Audio Jack (2x4 Pin Header/2mm) Signal Description Signal Description MIC IN L LINE IN L LINE IN R LINE OUT L LINE OUT R MIC IN R J15 SMBUS (1x5 Pin Header/2mm) Signal Description SMB_CLK SMB_DATA J16 M.2 Key-E 2230 Connector Signal Signal Description...
Page 41 User Manual VENDOR/NC3 SUSCLK PERST0# W_DISABLE#2 PEWAKE0# W_DISABLE#1 I2C_DATA I2C_CLK 3.3V 3.3V J20 USB Signal Description Signal Description USB_D7- USB_D8- USB_D7+ USB_D8+ J21 GPIO Signal Description Signal Description GPI0 GPO0 GPI1 GPO1 GPI2 GPO2 GPI3 GPO3...
Page 42 User Manual J23 System FAN Connector (1x3 Pin Header Wafer/2.54mm) Signal Description System FANOUT (12V Level) System FANIN J24 SATA Power Connector (1x4 Pin Header Wafer/2.5mm) Signal Description +12V J26 Front Panel Connector (2*8 Pin Header/2.54mm) Signal Description Signal Description Suspend LED+ Buzzer+ Suspend LED-...
Page 43 User Manual J28 SATA Port0 Connector (7 Pin/Vertical) Signal Description J30 LPC (TPM) for debug Connector (2*10 Pin Header/2mm) Signal Description Signal Description LPC clock LFRAME# LPC Reset LAD3 LAD2 +3.3V LAD1 LAD0 SMBus clock SMBus data +3.3VSB SERIRQ SUS_STAT# J31 M.2 Key-M 2280 Connector Signal Description Signal Description...
Page 44 User Manual PERn2 3.3V PERp2 PETn2 PETp2 PERn1 PERp1 PETn1 PETp1 PERn0/SATA B+ PERp0/SATA B- PETn0/SATA A- PETp0/SATA A+ PERST# CLKREQ# REFCLKn PEWAKE# REFCLKp SUSCLK PEDET (NC- 3.3V PCIe/GND-SATA) 3.3V 3.3V JP4 RTC Setup PIN No. Description Short Normal (Default) Short Clear RTC...
Page 45 User Manual JP6 PS_ON reset setup PIN No. Description Open Normal (Default) Short Reset PS_ON when System Reset active JP7 GPIO Output voltage level setup PIN No. Description Short Short +3.3V (Default) JP8 AT/ATX mode setup PIN No. Description Short AT mode Short ATX mode (Default)
Page 46 User Manual For assistance, please contact our customer service team at: mailto:info@suzohapp,com USA SUZOHAPP Support 1-888-873-4277 (toll free) suzohapp.com © 2022-2024 SUZOHAPP. All Rights Reserved. Manual Revision 1.0a...
