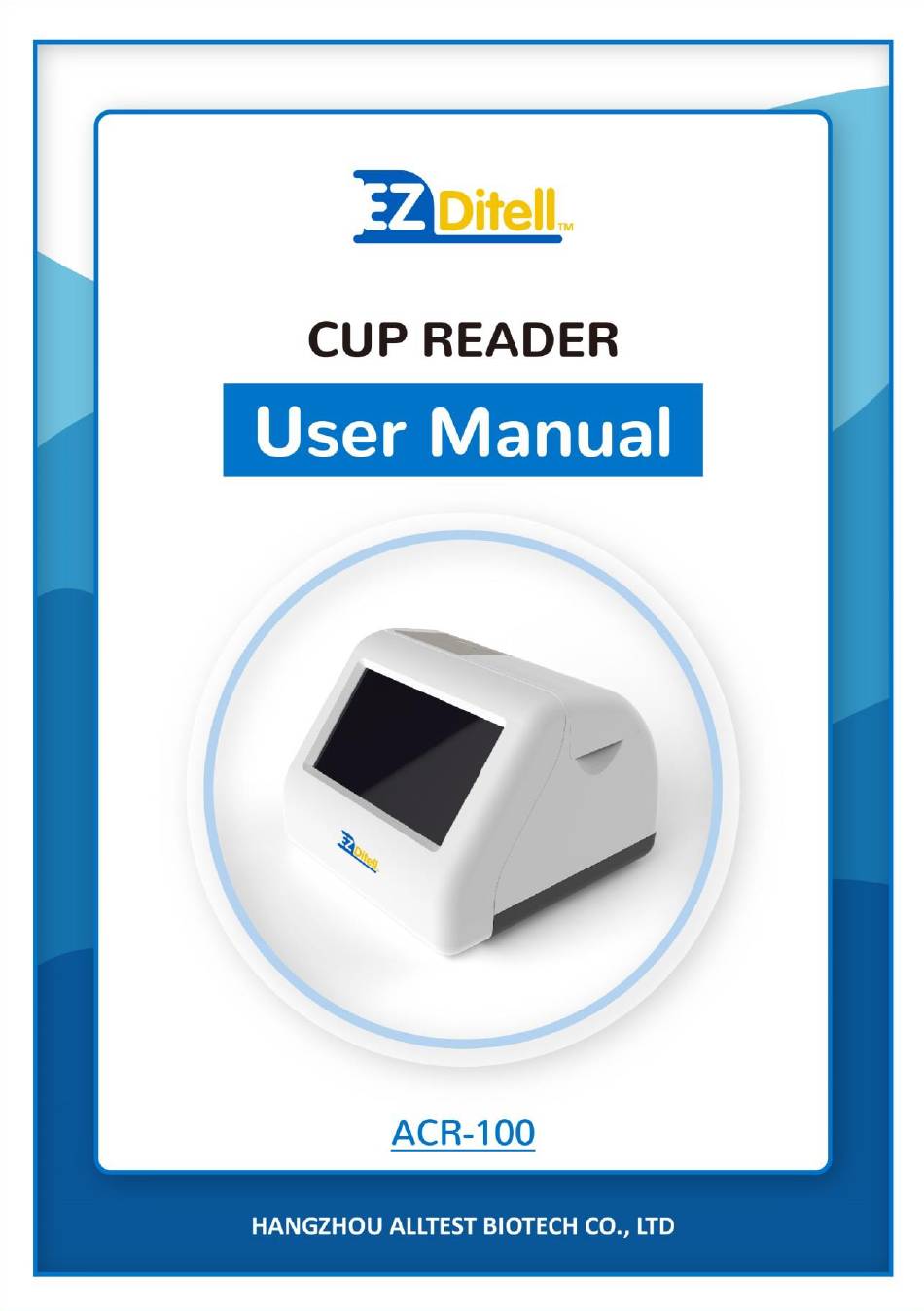

Alltest EZ Ditell ACR-100 User Manual

Cup reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ Ditell ACR-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alltest EZ Ditell ACR-100

  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction ................... 3 1.1 Intended Use ..................... 3 1.2 Scope of Application .................. 3 1.3 Product Name and Model Type ..............3 Chapter 2 Warnings and Safe Use ................. 4 Chapter 3 Components and Structure ..............6 3.1 Standard Equipment List ................
  • Page 4 7.1 Maintenance .................... 26 7.2 Maintenance Plan ..................26 7.3 Precautions ....................26 Chapter 8 Service, Repair and Disposal ............... 27 Chapter 9 Manufacturer Information ..............28 Appendix ....................... 29 Warranty ....................29 Warranty Card ..................31...

  • Page 5: Chapter 1 Introduction

    The Reader is designed to gather the product information through QR Code and can be used exclusively with DOA test cups manufactured by AllTest. The Cup Reader offers the advantages of high accuracy and fast results. The Cup Reader should be only used with consumables manufactured by Hangzhou AllTest Biotech Co., Ltd.

  • Page 6: Chapter 2 Warnings And Safe Use

    Chapter 2 Warnings and Safe Use Warnings: Failure to comply with the User Manual could lead to damage and inaccurate results. Patient ID and Test Type cannot be edited once the test begins. Do not open the Cup Reader Chamber Cap during reading. Do not test the used test cup again once the result has been reported.
  • Page 7 Reader off its work bench. The mains socket outlet intended for use with Cup Reader power supply should be located near the Cup Reader and be readily accessible. Manufacturer recommends that cables are disconnected when not in use for an extended period. Do not immerse the cup reader in water or cleaning solutions.

  • Page 8: Chapter 3 Components And Structure

    Chapter 3 Components and Structure 3.1 Standard Equipment List Packing List Description Model Quantity Reader ACR-100 Power Adapter GSM40A12-P1J Power Cord Print Paper Roll 57*30 mm User Manual Calibration Cup Touch Pen Scanner Optional On receiving the box, please check the contents with this list and ensure that nothing is missing.
  • Page 9 Reader Chamber Touch Screen Fig 1 Built-in Thermal Printer Ports LAN Port Power Adapter Port Switch Fig 2 3.2.2 Power adapter (Ref Fig 3) Fig 3...

  • Page 10: Technical Specification

    3.3 Technical Specification  Principle Photoelectric Conversion  Test formats  Touch Screen 7 inches  Measurement Qualitative 1-2.5 minutes （Depends on the placement of QR  Read Time code）  Power Source DC 12 V, 2 A 221 mm (Length) ×215 mm (Width) ×165 mm ...

  • Page 11: Chapter 4 Installation

    Note-1: Please keep the original box of reader and packing materials for any future shipping/reference purpose. Note-2: AllTest strives to provide the right kind of power plug suitable for each country. However, in some cases, it may not be possible. Use of right kind of adapter to connect to power supply is recommended in such cases.

  • Page 12: Power Supply Voltage Requirements

    4.4 Power Supply Voltage Requirements The power supply of the reader varies between 100- 240 V /50/60 Hz AC depending on countries where the reader is used. The input voltage is 12 V DC. Avoid short circuit and electric shock during the use. The reader is grounded through power adapter.

  • Page 13: Chapter 5 Directions For Use

    Chapter 5 Directions for Use The Cup Reader can be operated by commands on touchscreen. 5.1 Start the Reader Connect power with cup reader through the DC adapter and press the power switch to turn on the reader. The initializing screen will display as Fig 4. Fig 4 After initializing, fill in the username and password (Ref Fig 5), the reader will have a self-testing.

  • Page 14: Main Functions

    Fig 5 5.1.2 Shut Down Tap “Shut Down”, a prompt will display as Fig 6, tap “Yes” to turn off the reader, tap “Cancel” to give up. Fig 6 5.1.3 Self-Testing After login, reader will enter the self-testing procedure. (Ref Fig 7) Fig 7 5.2 Main Functions There are five main functions: Setting, Records, Read, Upload and Print, and...
  • Page 15 Update and Import and Soft Power off locked icons keyboard icons icon Product Patient Informa- tion Area Result Area Function Buttons Fig 8 5.2.1 Setting Press “Setting” to switch to the interface. (Ref Fig 9 Fig 9 5.2.1.1 Preferences Functions Setting Language: The language can be selected, English is the default selection.
  • Page 16 Date & Time: Press at the right side of date displaying box to select target date, fill in the target time with the virtual keyboard, press to save the change. (If the reader is connected to the Ethernet via LAN Port, the date and time will be synchronized on the network, and cannot be changed.) Timezone: The country and city can be selected to set the time zone and press...
  • Page 17 Fig 10  Add User: Press Add, fill in username, password and confirm password, tap Save to save and tap Exit to give up.(Ref Fig 11) Fig 11...
  • Page 18 Delete User: Select user which needs to be deleted, press Delete. (Ref Fig  Fig 12 5.2.1.4 About Press to display the software version and the serial number as is shown in Fig 13. Press to return to the main operation interface. Fig 13 5.2.2 Records Press “Records”...
  • Page 19 Fig 14 Table 1 Function Buttons Button Function Previous or Next Page The First or Last Page Jump into the target page filled in the dialog box Press to initiate or collapse Virtual Keyboard Search records with the information filled in the dialog box. Display all records Print the selected record(s) Transfer the selected record(s) to LIS...
  • Page 20 Fig 17 for faster results. Interpretation of result: PASS result means system running is normal, user can perform a test. While the calibration result is FAIL, please do not use the device, and contact AllTest for Technical Support. Fig 15 2) Run a test Step 1: Bring the cup pouch to room temperature before opening.
  • Page 21 proper range for an unadulterated specimen is 32-38 ° C (90-100 ° F). Step 5: Date and initial on the security seal and attach the security seal over the cup cap. Step 6: Peel off the label on the cup. 3）Read the results by Reader Step 1: Fill in patient information, such as ID, Name, Age and Gender on the screen.
  • Page 22 Step 3: Tap “Read” to read the results. (Ref Fig 18) Fig 18 The cup information will be filled in the boxes automatically after a few seconds of starting test, and the process will change continuously from 0% to 100%. (Ref Fig Fig 19 Step 4: When the process reaches 100%, the test result will display on the screen as Fig 20.
  • Page 23 Fig 20 5.2.4 Upload After each test, press “Upload” to transfer the result to LIS. (The result will be transferred automatically on the condition that the LIS setting has been set correctly.) (Ref Fig 21) Fig 21 5.2.5 Print Press “Print” to print the current result with the built-in thermal printer. (Ref Fig 22) (The result will be printed automatically on condition that the automatic function of print is switched on.)

  • Page 24: Auxiliary Functions

    Fig 22 5.3 Auxiliary Functions Auxiliary functions including: Import, Update, Locked and Shutdown. 5.3.1 Import A specific configuration file will be provided with one batch of test cups. If a new batch arrives, the configuration file should be stored in a USB disk and imported into the reader by pressing the button .
  • Page 25 Fig 23...
  • Page 26 5.3.2 Update The software is updated via USB port. A new software version will be provided by email when the Reader does not work properly due to software damage. in the main operation interface. (Ref Fig 24) Tap “Yes” to enter Pressing update procedure, tap “Cancel”...

  • Page 27: Chapter 6 Troubleshooting

    Chapter 6 Troubleshooting Operating and maintaining the cup reader following the instructions in this User Manual usually enables the reader to function correctly. Some common faults may be encountered during the use of the reader. The following table will introduce the common faults and solutions: Table 2 Troubleshooting Error Solutions...

  • Page 28: Chapter 7 Daily Maintenance And Cleaning

    Treat tested samples as potentially contagious and use protective gloves and other protective measures. iii. Use test kits manufactured by Hangzhou AllTest Biotech Co., Ltd. and supplied by authorized distributors of Hangzhou AllTest Biotech Co., Ltd. only. Do not replace the removable MAINS power cord with an improperly rated power cord.

  • Page 29: Chapter 8 Service, Repair And Disposal

    If the reader needs to be sent back to manufacturer, please contact local distributor and/ or Hangzhou AllTest Biotech Co., Ltd. It normally takes about one week to fix problems. If it turns out that the reader cannot be repaired within warranty period, we will replace it with a new one.

  • Page 30: Chapter 9 Manufacturer Information

    Chapter 9 Manufacturer Information Name：Hangzhou AllTest Biotech Co., Ltd. Address: # 550, Yinhai Street, Hangzhou Economic & Technological Development Area, Hangzhou, 310018 P.R. China Tel: +86-571-56267891 Web: www.alltests.com.cn Email: info@alltests.com.cn Index of Symbols Consult instructions for Contains In vitro use or consult...

  • Page 31: Appendix

    AllTest shall not be responsible for shipping charges incurred in the repair of such a reader.
  • Page 32 Limitations of Liability In no event shall AllTest be liable for indirect, special or consequential damages, even if AllTest has been advised of the possibility of such damages. For warranty service, please contact your local distributor.

  • Page 33: Warranty Card

    B. Warranty Card Please complete this warranty card and mail it to your local distributor to register your purchase within one year of purchase. Purchaser Model Serial Number Date of Purchase Address Telephone Number E-Mail Address...
