- Page 1 testair Particulate Matter Sampler user manual...
- Page 2 Dear Client: Thank you for placing your trust in a quality product from TEINNOVA. This product has been made using modern manufacturing techniques and comprehensive quality assurance measures. We strive to do everything we can to make sure you are satisfied with this product and can work with it without problems.
- Page 3 contents symbols used 5-17 safety warnings 6-17 conditions of use 7-17 know your machine 8-17 accessories and related equipment 9-17 operating instructions 10-17 technical specifications 11-17 transport 13-17 testair Particulate matter sampler...
- Page 4 contents maintenance and care 14-17 waste management 15-17 guarantee conditions 16-17 declaration of conformity “CE” 17-17 testair Particulate matter sampler...
-
Page 5: Symbols Used
symbols used All the symbols used in this manual, as well as those on the equipment, are explained in this section. It is important to read the text associated with these symbols carefully, since it is about personal safety and equipment safety. DANGER! This symbol warns you of a potentially dangerous situation which could result in serious injury or even death if the instructions given are not followed... -
Page 6: Safety Warnings
Mechanical protection gloves and overalls should be worn when using the equipment. Do not open the casing of your equipment nor handle any of the internal parts of the equipment. In the event of a fault please contact the TEINNOVA Technical Assistance Service. testair... -
Page 7: Conditions Of Use
conditions of use TESTAIR is a machine for sampling surfaces in order to check the cleanliness of ventilation system and air conditioning (VSAC) ducts. The sampling is carried out by an air suction pump which is connected via a flexible tube to filters contained in a cassette. -
Page 8: Know Your Machine

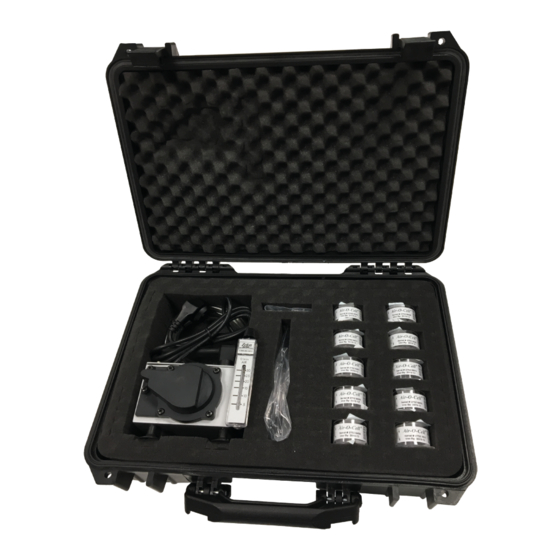

know your machine Components: 1- Switch 2- Transport Handle 3- Sampling Pump 4- Flow Regulator 5- Flow measurer or Rotameter 6- Power Cable testair Particulate matter sampler... - Page 9 accessories and related equipment Accessories included: Sampling template Template for sampling the particulate matter, based on regulations. Code 113DTA013 Cassettes that are weight-compared and calibrated according to NADCA standards NADCA approved sampling cassette. Code AC6450701 Transport Case Protective airtight plastic case. Code AC3303403 testair Particulate matter sampler...
- Page 10 operating instructions Steps for the correct use of the TESTAIR: Connection to a power source is via an electricity cable attached to the equipment. All sampling must be preceded by a visual inspection. The following steps must be followed: 1) Setting the pump flow. To do this, remove the seals from both sides of the cassette and connect the OUTLET (with a rounded point) of the cassette to one end of the flexible tube.
- Page 11 operating instructions Steps for the correct use of the TESTAIR: 2) Placing the template on the sampling surface. Ensure that it cannot move during the sampling. The template must be completely horizontal on a dry surface. 3) Sampling. Suction the template strips by sliding the cassette along them at a speed of no more than 5 cm/s. The edges of the cassette must stay on the template and not touch the surface of the strip.
-
Page 12: Technical Specifications
technical specifications Specifications TESTAIR 230V / 50Hz 110V / 60Hz Flow: 30 l/min – 7,92gpm(US) Dimensions: 470 x 350 x 190 mm 18,50 x 13,77 x 7,48 inches Weight: 6 kg / 13,23 lb Weight of calibrated cassettes: 10.61 g (without labels) testair Particulate matter sampler... - Page 13 transport The machine was designed so that it can be transported in its protective case. During transport, the machine must be correctly packed using the foam shapes and the case lock in order to prevent any type of damage. Similarly, the case itself must be protected from any types of impact. It is not advisable to place the machine on a transport pallet or similar.
-
Page 14: Maintenance And Care
Spare Parts: TEINNOVA stocks spare parts for all the machine’s components as well as consumables for all the mainte- nance tasks shown in this manual. If you need any part or consumable, please contact TEINNOVA Customer Service... -
Page 15: Waste Management
waste management The materials used in the packaging are recyclable. Do not dispose of the packaging in household waste, but hand it in at official collection points for recycling. Do not dispose of electrical equipment in the trash! We recommend that electrical tools and accessories are subjected to an environmentally friendly recovery process. -
Page 16: Guarantee Conditions
1). expressly proven. In the case that the product is covered, "TEINNOVA" can replace it or determine the TEINNOVA reserves the right to make changes to the equipment without prior notice. testair Particulate matter sampler... - Page 17 Telephone number: +34 941 44 50 56 Fax: +34 941 25 24 71 Web: www.teinnova.net TECAI INNOVA, SL, under its sole responsibility, certifies that the machine model described above complies with all the essential requirements of the following directives: Machinery directive 2006/42/CE Directive 2014/30/EU on electromagnetic compatibility and its amendments.
