Before you start:
Do not lubricate!
Do not insert ZIF cable while powered!
Do not touch white ceramic strip with your fingers!
Follow the steps below to get started:
Instructions (see schematic overview)
1. Connect ZIF cable (see photos on page 2 for orientation) to the actuator and break-out PCB.
2. Plug the add-on switch board into the break-out PCB.
3. Plug the power cable into the break-out PCB.
4. Plug the DC adapter into a power source.
5. The actuator is now ready to move.
6. Use the red switch to control direction and the blue potentiometer to control speed.
Page 1 / 2
Quick start guide

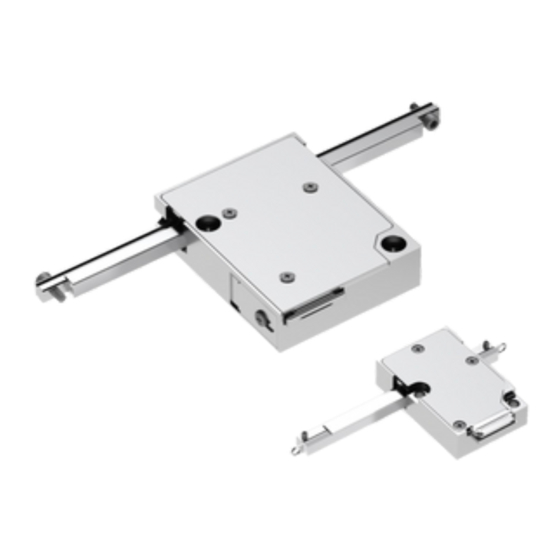

XLA micro actuator - open loop & hybrid
Please see FAQ.
Damage may ensue.

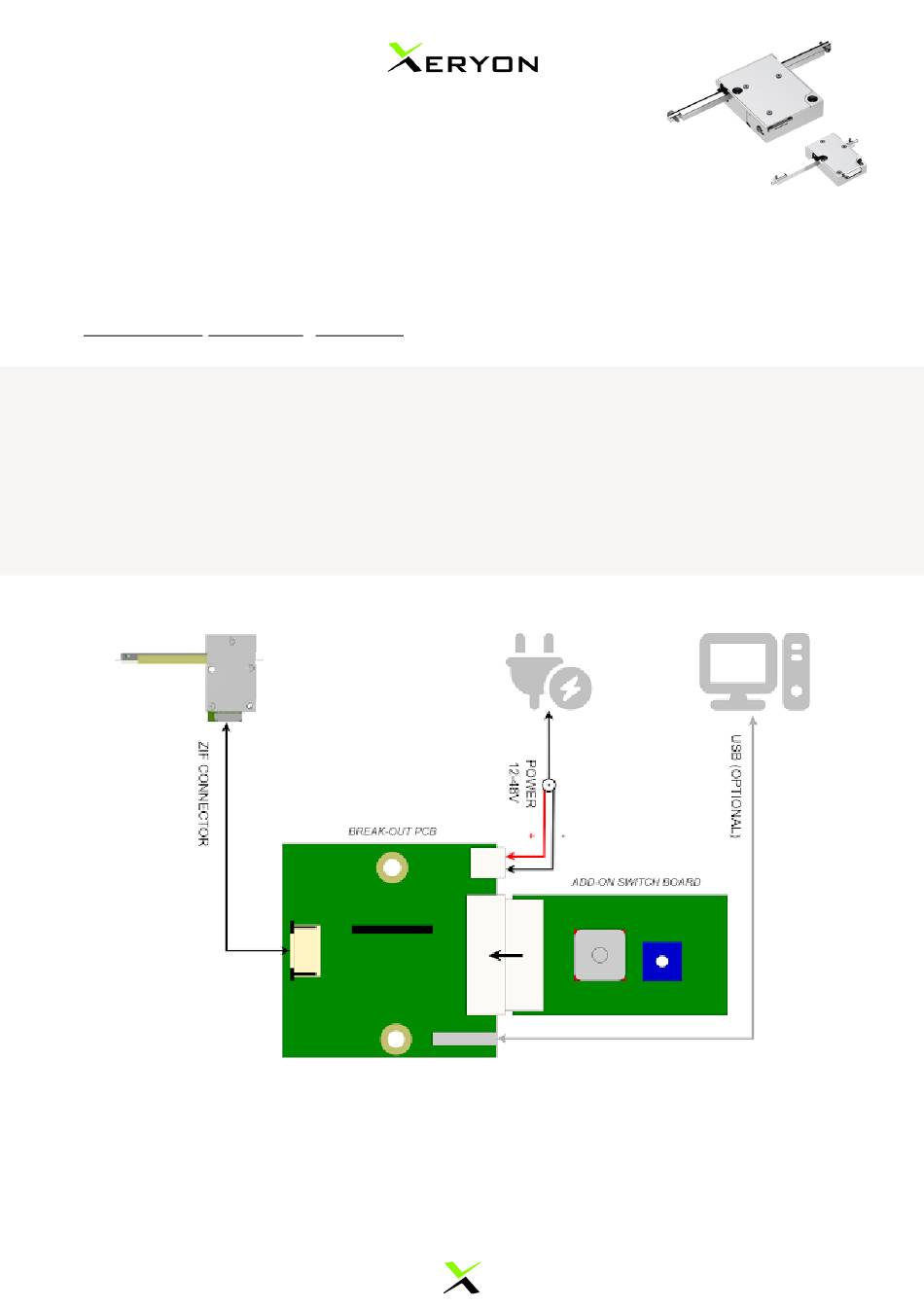

Schematic overview of connections
If touched, clean with IPA alcohol.
Last updated: Feb. 8, 2024
Advertisement
Table of Contents
Related Manuals for XERYON XLA Series
Summary of Contents for XERYON XLA Series
- Page 1 Quick start guide XLA micro actuator - open loop & hybrid Before you start: Do not lubricate! Please see FAQ. Do not insert ZIF cable while powered! Damage may ensue. Do not touch white ceramic strip with your fingers! If touched, clean with IPA alcohol. Follow the steps below to get started: Instructions (see schematic overview) 1.
- Page 2 Q: How does it differ from other piezo linear actuators like stick-slip or walking piezo? A: Xeryon’s ultrasonic piezo actuators are much faster, have a much larger stroke, a much (much!) longer lifetime, operate noiselessly, consume less power, and operate at a much lower voltage at the piezo element.
